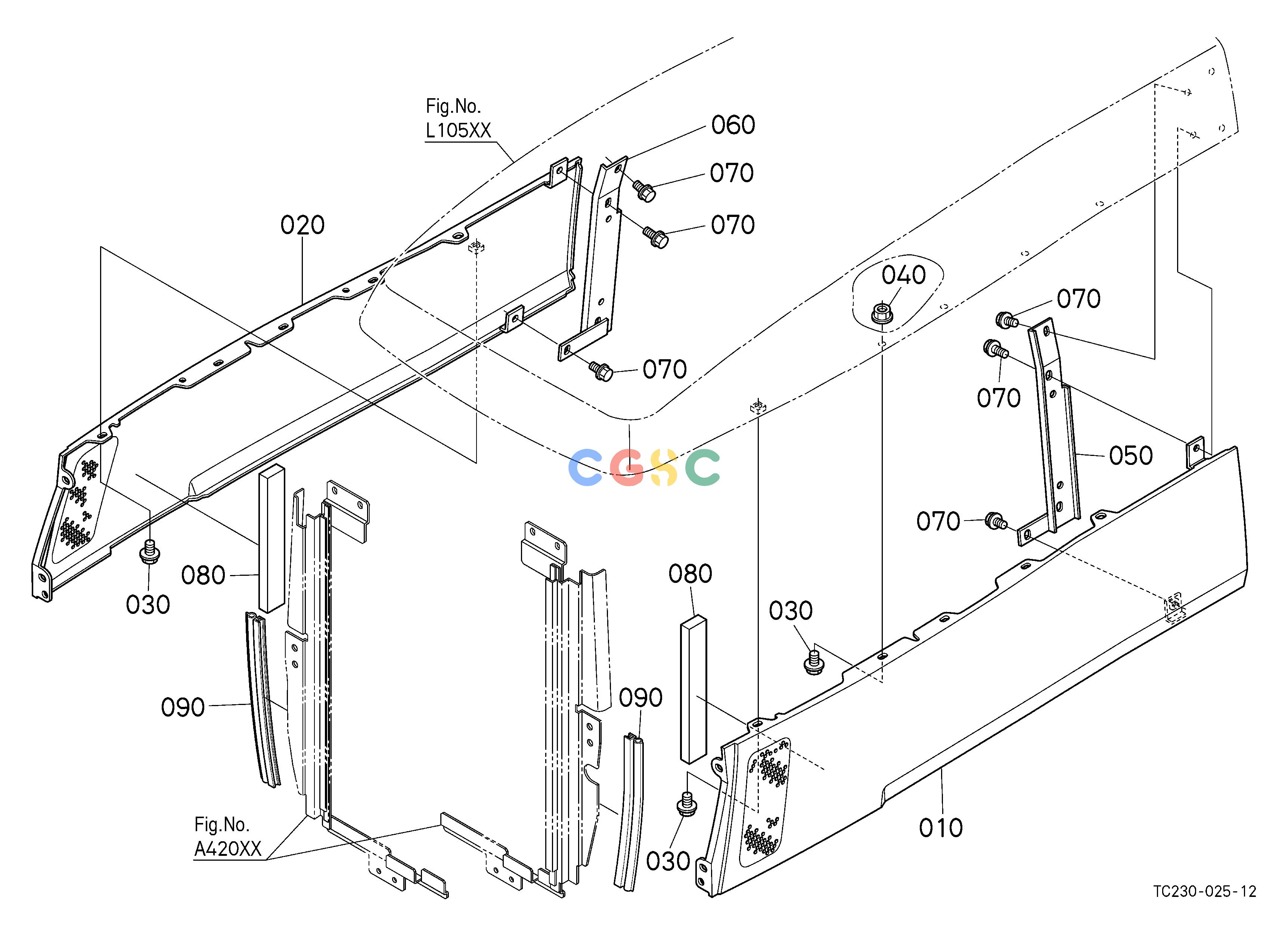

久保田零件查询L11000 HOOD (BONNET) SIDE HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
339 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23041320
|
[1] |
BONNET,SIDE LH
|
4.4000(lbs); 2.000
|
| 010. |
TC23041325
|
[1] |
BONNET,SIDE LH
|
4.4000(lbs); 2.000
|
| 020. |
TC23041330
|
[1] |
BONNET,SIDE RH
|
4.4000(lbs); 2.000
|
| 020. |
TC23041335
|
[1] |
BONNET,SIDE RH
|
6.6000(lbs); 3.000
|
| 030. |
0175450812
|
[10] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 040. |
0275150080
|
[8] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
TC23041450
|
[1] |
BRACKET
|
0.8250(lbs); 0.375
|
| 060. |
TC23041460
|
[1] |
BRACKET
|
0.8360(lbs); 0.380
|
| 070. |
0175450612
|
[6] |
BOLT,FLANGE
|
0.0110(lbs); 0.005
|
| 080. |
TC22042332
|
[2] |
SPONGE,BONNET SIDE
|
0.0286(lbs); 0.013
|
| 090. |
TC22042220
|
[2] |
SHIELD
|
0.0770(lbs); 0.035
|
