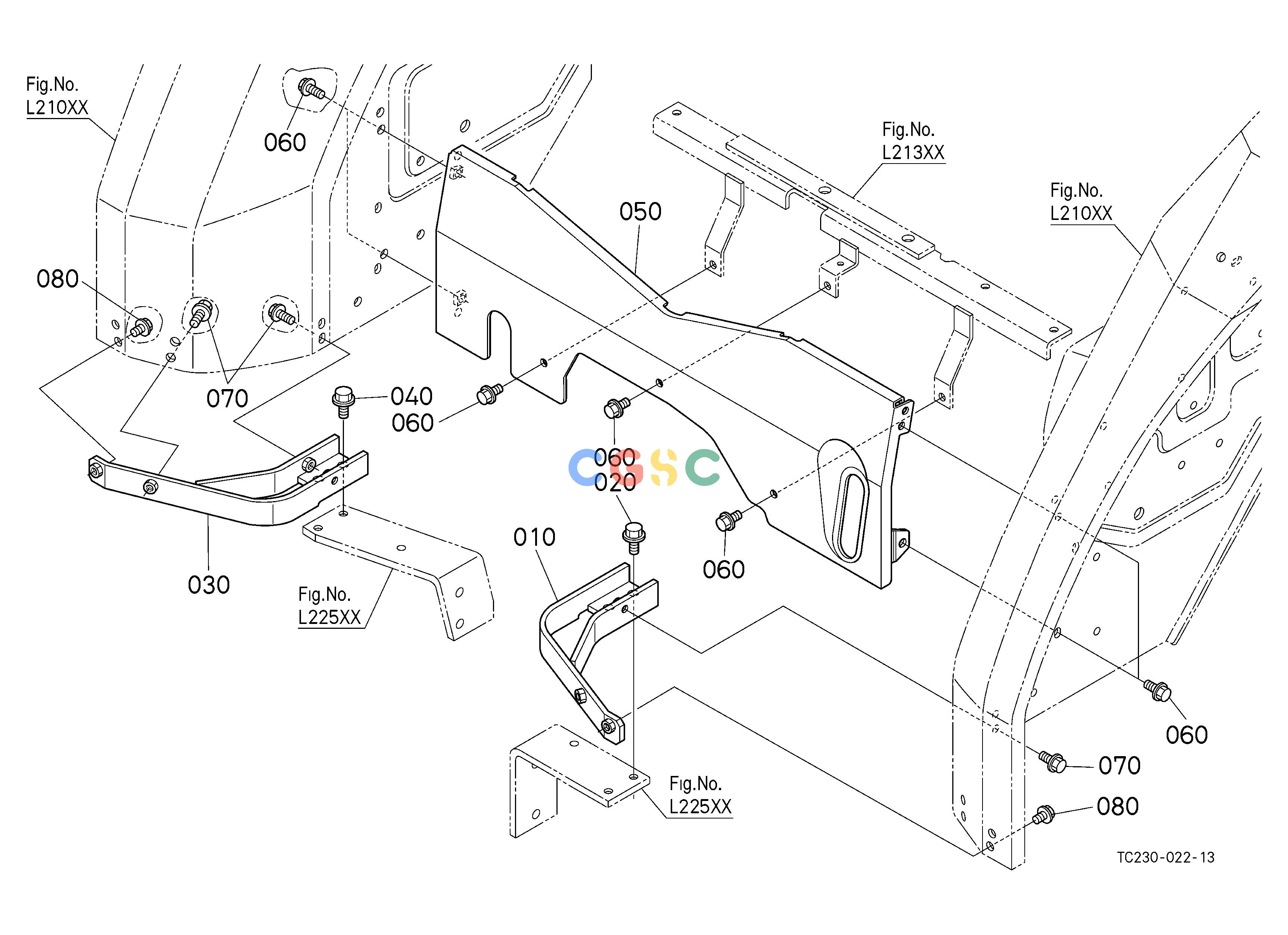

久保田零件查询L21700 FLOOR SHEET COVER / FENDER BRACKET HOOD/BONNETEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
275 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC23029180
|
[1] |
BRACKET,FENDER LH
|
4.6200(lbs); 2.100
|
| 010. |
TC33129180
|
[1] |
BRACKET,FENDER LH
|
2.0350(lbs); 0.925
|
| 020. |
0177451020
|
[2] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 030. |
TC23029190
|
[1] |
BRACKET,FENDER RH
|
1.9800(lbs); 0.900
|
| 040. |
0177451020
|
[2] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 050. |
TC23047210
|
[1] |
COVER,FLOOR SHEET
|
4.4000(lbs); 2.000
|
| 060. |
0175450816
|
[7] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 070. |
0175450816
|
[4] |
BOLT,FLANGE
|
0.0242(lbs); 0.011
|
| 080. |
0175450812
|
[2] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
