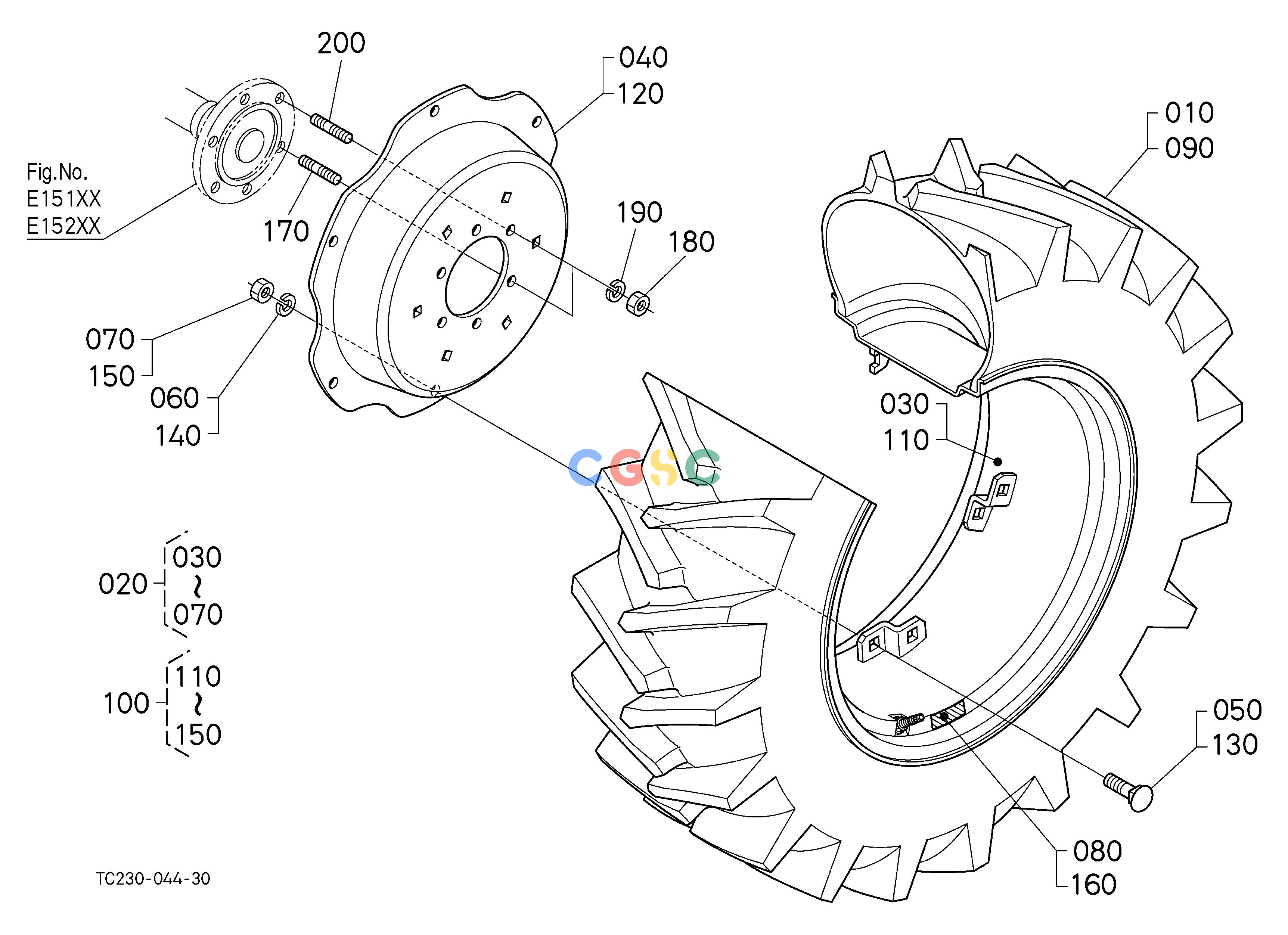

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TC23027700 | [1] | TIRE | ALR6811R 0.0000(lbs); 0.000 |
| 020. | TC23027840 | [1] | ASSY WHEEL | ALR6811R 0.0000(lbs); 0.000 |
| 020. | TC23027842 | [1] | WHEEL,ASSY(W12X24) | ALR6811R 0.0000(lbs); 0.000 |
| 030. | TC23027850 | [1] | RIM | ALR6811R 0.0000(lbs); 0.000 |
| 040. | TC23027660 | [1] | DISK | ALR6811R 0.0000(lbs); 0.000 |
| 050. | 3122027680 | [6] | BOLT | ALR6811R 0.1980(lbs); 0.090 |
| 060. | 7559933017 | [6] | WASHER,SPRING LOCK(5/8) | ALR6811R 0.0110(lbs); 0.005 |
| 070. | 0217450160 | [6] | HEX.NUT | ALR6811R 0.0484(lbs); 0.022 |
| 080. | 99999-99999 | [1] | LABEL ALR6811,RH | ALR6811R 0.0000(lbs); 0.000 |
| 090. | TC23027700 | [1] | TIRE | ALR6811L 0.0000(lbs); 0.000 |
| 100. | TC23027840 | [1] | ASSY WHEEL | ALR6811L 0.0000(lbs); 0.000 |
| 100. | TC23027842 | [1] | WHEEL,ASSY(W12X24) | ALR6811L 0.0000(lbs); 0.000 |
| 110. | TC23027850 | [1] | RIM | ALR6811L 0.0000(lbs); 0.000 |
| 120. | TC23027660 | [1] | DISK | ALR6811L 0.0000(lbs); 0.000 |
| 130. | 3122027680 | [6] | BOLT | ALR6811L 0.1980(lbs); 0.090 |
| 140. | 7559933017 | [6] | WASHER,SPRING LOCK(5/8) | ALR6811L 0.0110(lbs); 0.005 |
| 150. | 0217450160 | [6] | HEX.NUT | ALR6811L 0.0484(lbs); 0.022 |
| 160. | 99999-99999 | [1] | LABEL ALR6811,LH | ALR6811L 0.0000(lbs); 0.000 |
| 170. | 0151751635 | [8] | BOLT,STUD | 0.1716(lbs); 0.078 |
| 180. | 0207650160 | [12] | NUT | 0.0660(lbs); 0.030 |
| 190. | 0451250160 | [12] | WASHER,SPRING LOCK | 0.0220(lbs); 0.010 |
| 200. | 0151751635 | [4] | BOLT,STUD | 0.1716(lbs); 0.078 |
