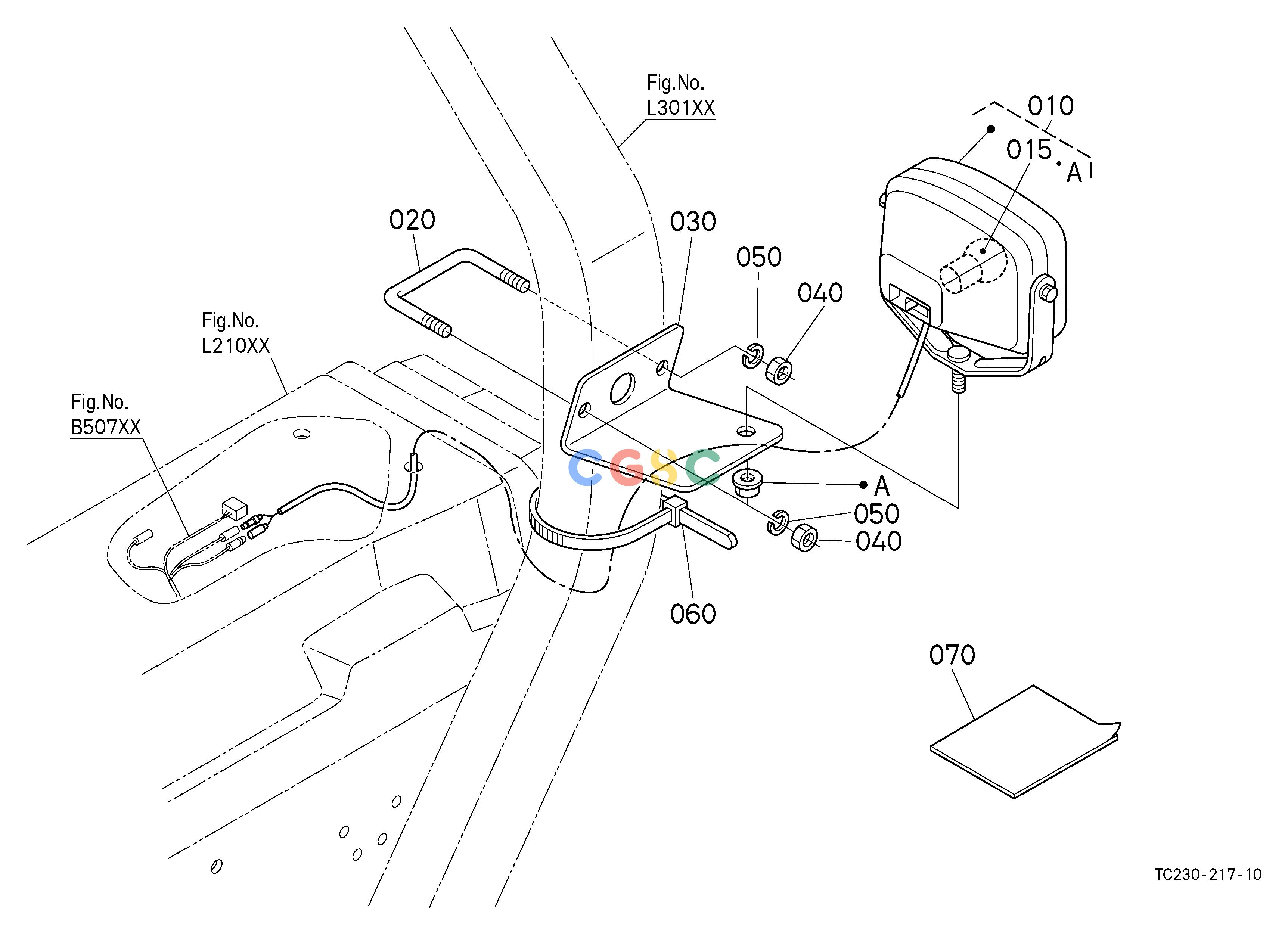

久保田零件查询V18000 WORKING LIGHT KIT (W/G No.M9551) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
298 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3A01175904
|
[1] |
ASSY LIGHT,WORKING
|
1.4080(lbs); 0.640
|
| 015. |
3A01175930
|
[1] |
BULB
|
0.0176(lbs); 0.008
|
| 020. |
3A01175922
|
[1] |
U-BOLT
|
0.2530(lbs); 0.115
|
| 030. |
3A01275910
|
[1] |
STAY(WORKING LAMP)
|
1.4080(lbs); 0.640
|
| 040. |
0217650100
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 050. |
0451260100
|
[2] |
WASHER,SPRING
|
0.0044(lbs); 0.002
|
| 060. |
3275196300
|
[1] |
BAND,WORK LIGHT
|
0.0110(lbs); 0.005
|
| 070. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0110(lbs); 0.005
|
