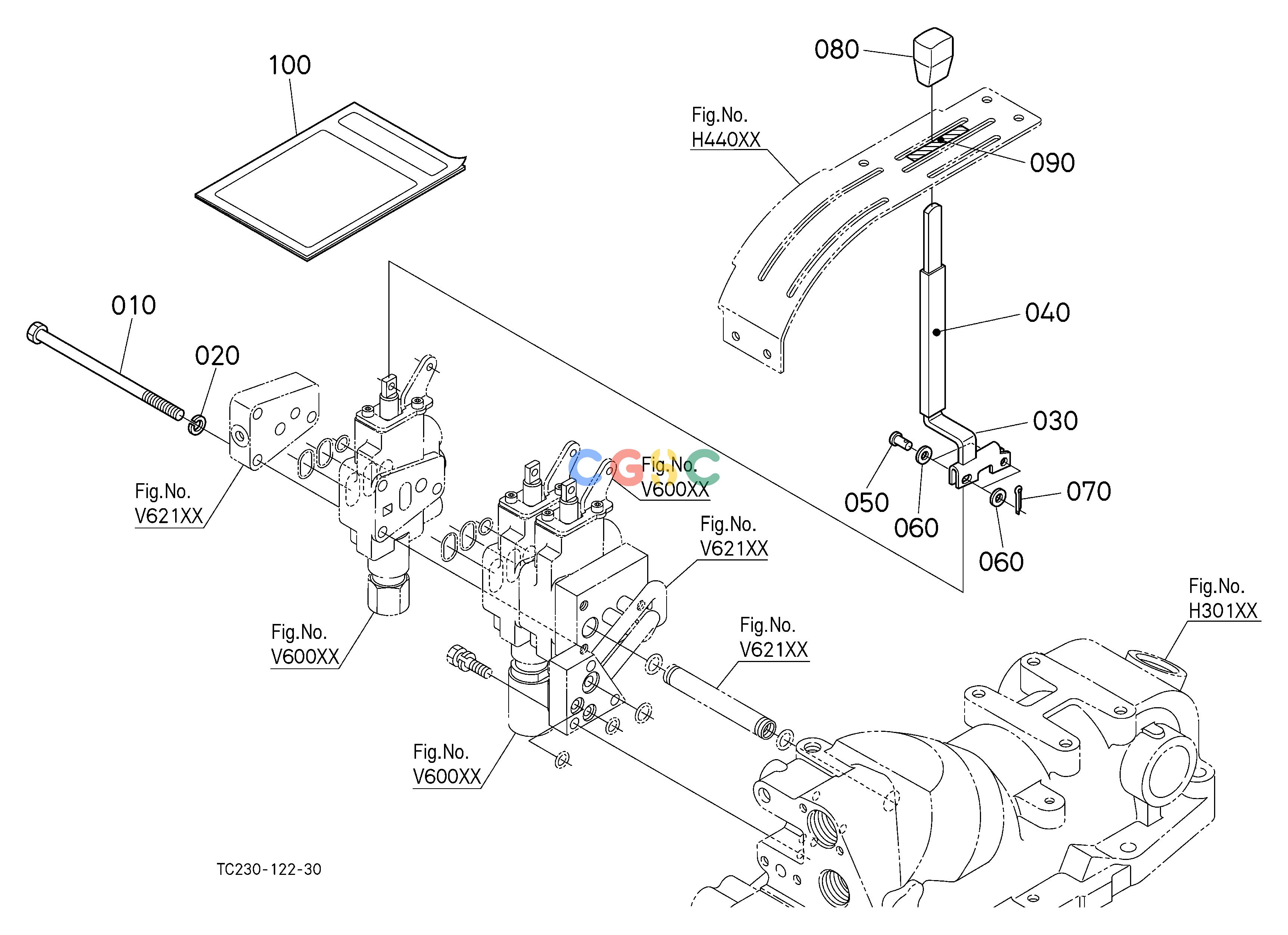

久保田零件查询V62107 AUXILIARY CONTROL VALVE LEVER (3RD) [NEW] [OPTION] ## S.No.>=81047 S.No.;>=81047 OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
5541115140
|
[3] |
BOLT
|
0.1100(lbs); 0.050
|
| 020. |
0451250080
|
[3] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 030. |
TC23096240
|
[1] |
LEVER,AUX.CON.VALVE
|
0.2992(lbs); 0.136
|
| 040. |
TD06096250
|
[1] |
TUBE(LEVER)
|
0.0110(lbs); 0.005
|
| 050. |
6802132790
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 060. |
0401250050
|
[4] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0551151210
|
[2] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
TD06096260
|
[1] |
GRIP,AUX.CONTR.LEVER
|
0.0286(lbs); 0.013
|
| 090. |
TA04049630
|
[1] |
MARK,AUX.CONT.VALVE
|
0.0022(lbs); 0.001
|
| 090. |
TD17096720
|
[1] |
MARK,AUX.CONT.VALVE
|
0.0022(lbs); 0.001
|
| 100. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
