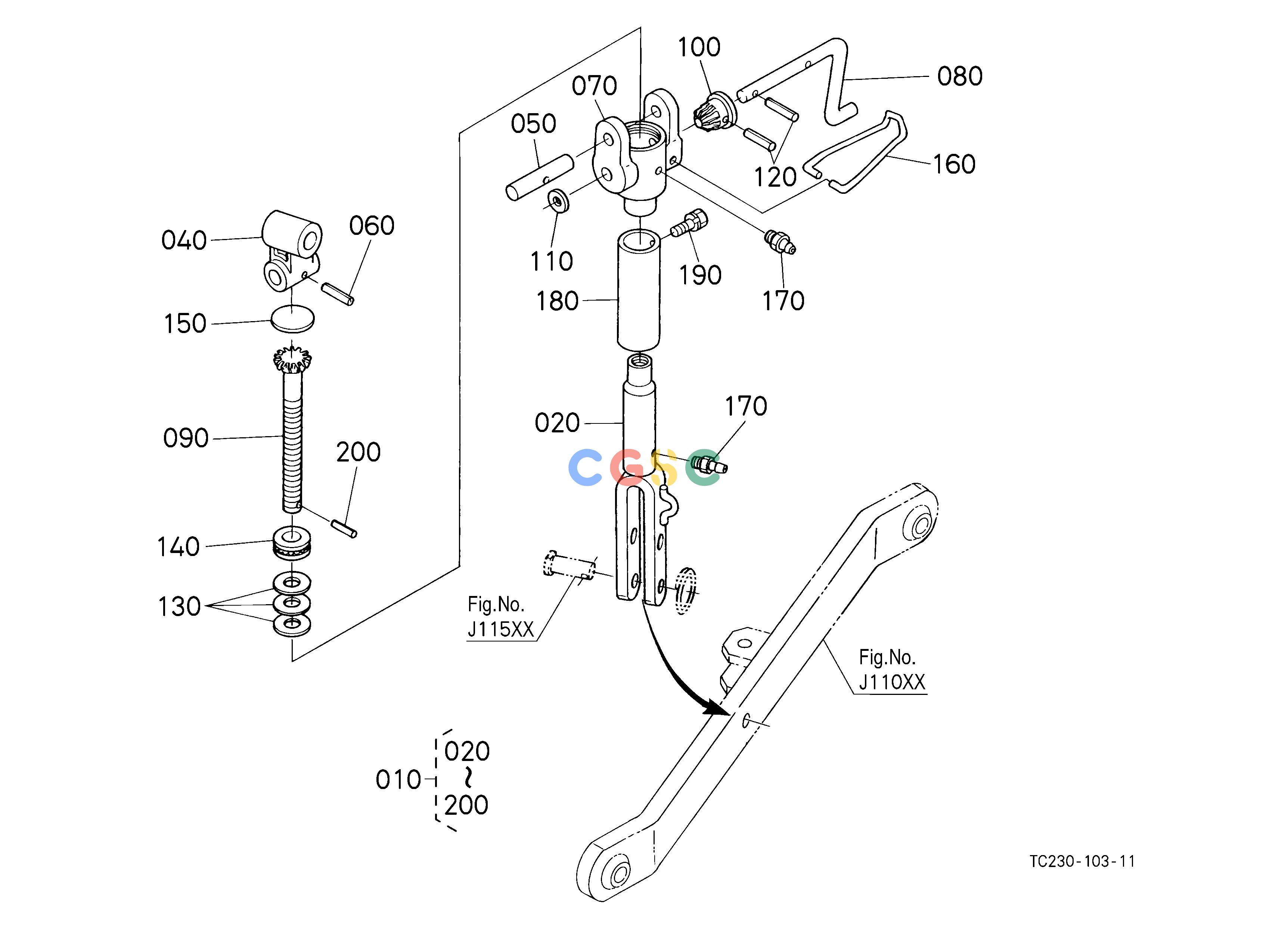

久保田零件查询V72000 3-POINT LINKAGE 2 (LIFT ROD) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
971 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14039500
|
[1] |
ASSY ROD
|
7.7000(lbs); 3.500
|
| 010. |
HTA1039500
|
[1] |
ASSY ROD
|
7.7000(lbs); 3.500
|
| 020. |
TA14039520
|
[1] |
ROD,LIFT LOWER
|
2.1120(lbs); 0.960
|
| 040. |
3135171570
|
[1] |
JOINT,GEAR CASE
|
1.0450(lbs); 0.475
|
| 050. |
TA14039550
|
[1] |
PIN,LIFT ROD
|
0.2420(lbs); 0.110
|
| 060. |
0541100532
|
[1] |
PIN,SPRING
|
0.0066(lbs); 0.003
|
| 070. |
3135171710
|
[1] |
CASE,LIFT ROD GEAR
|
1.9140(lbs); 0.870
|
| 080. |
3135171660
|
[1] |
HANDLE,LIFT ROD
|
0.5170(lbs); 0.235
|
| 090. |
TA14039530
|
[1] |
GEAR,LIFT ROD
|
0.7590(lbs); 0.345
|
| 100. |
TA14039540
|
[1] |
GEAR,LIFT ROD
|
0.2200(lbs); 0.100
|
| 110. |
3135171670
|
[1] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 120. |
0541100622
|
[2] |
PIN,SPRING
|
0.0066(lbs); 0.003
|
| 130. |
3122071720
|
[3] |
SHIM
|
0.0022(lbs); 0.001
|
| 140. |
3229471770
|
[1] |
BEARING,THRUST BALL
|
0.1606(lbs); 0.073
|
| 150. |
0631175045
|
[1] |
PLUG EXPANSION
|
0.0572(lbs); 0.026
|
| 160. |
3224471730
|
[1] |
STOPPER,HANDLE
|
0.0594(lbs); 0.027
|
| 170. |
0661310675
|
[2] |
NIPPLE,GREASE
|
0.0066(lbs); 0.003
|
| 180. |
3135171700
|
[1] |
PIPE
|
0.4400(lbs); 0.200
|
| 180. |
H313071700
|
[1] |
PIPE
|
0.4400(lbs); 0.200
|
| 190. |
0120250612
|
[1] |
BOLT,SEMS(PHILLIPS)
|
0.0110(lbs); 0.005
|
| 200. |
0541100320
|
[1] |
PIN,SPRING
|
0.0022(lbs); 0.001
|
