久保田零件查询L30103 ROPS (FOLDABLE TYPE) [NEW] ## S.No.>=20001 S.No.>=20001 ROPSEPC Kubota online_久保田Kubota_工程机械

久保田零件查询L30103 ROPS (FOLDABLE TYPE) [NEW] ## S.No.>=20001 S.No.;>=20001 ROPSEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 671 次

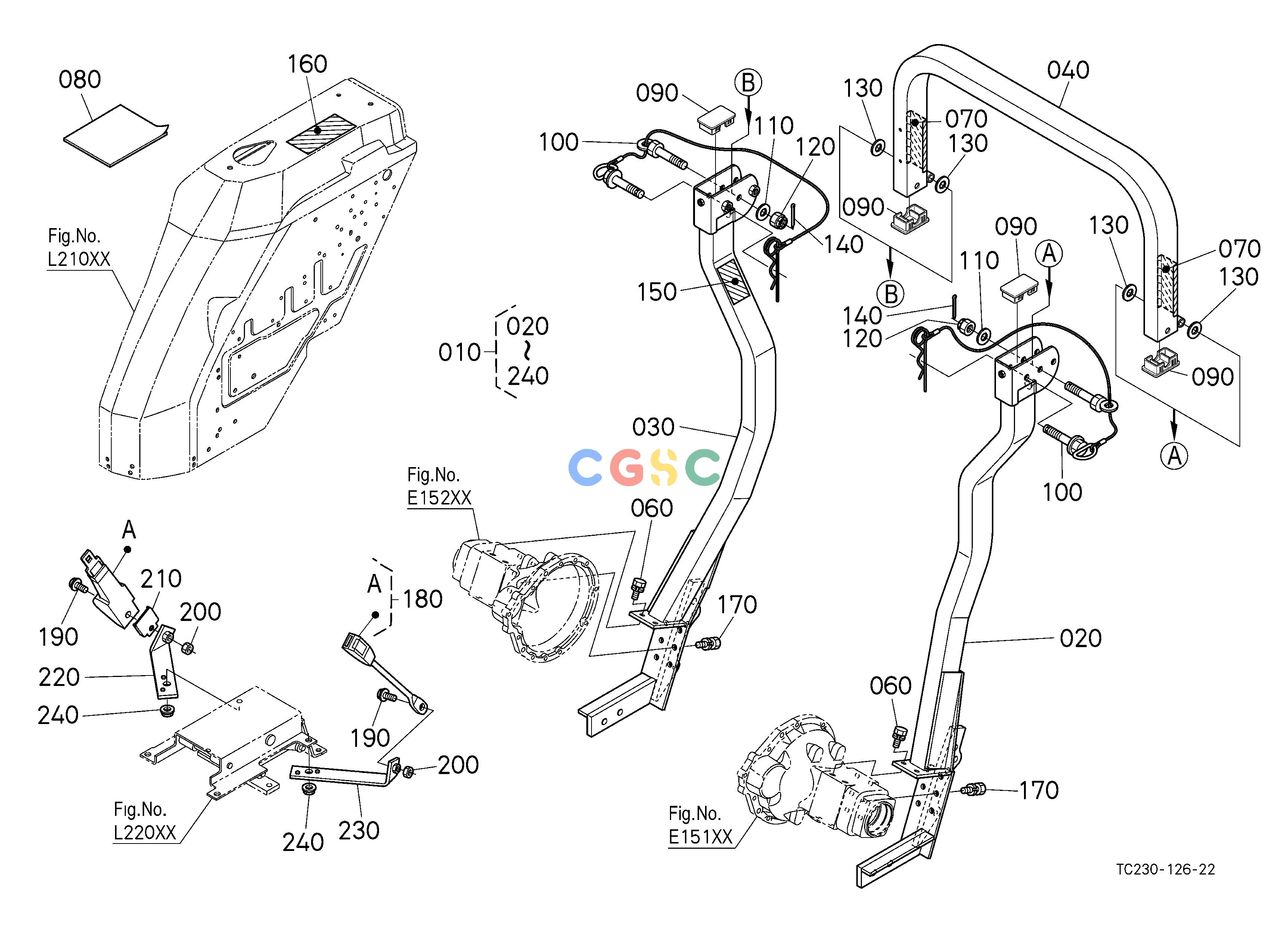

Pos.	Part No	Qty	Parts name	Comments
010.	TC23050072	[1]	KIT ROPS,REPLACEMENT	NOT SALE 0.0000(lbs); 0.000
020.	99999-99999	[1]	COMP.FRAME LH	0.0000(lbs); 0.000
030.	99999-99999	[1]	COMP.FRAME RH	0.0000(lbs); 0.000
040.	99999-99999	[1]	FRAME UPPER	0.0000(lbs); 0.000
060.	0113851430	[4]	BOLT,SEMS	0.1210(lbs); 0.055
070.	6C14054990	[2]	REFLECTOR(LABEL)	0.0066(lbs); 0.003
080.	99999-99999	[1]	MANUAL,ASSEMBLY	0.0000(lbs); 0.000
090.	TC05048773	[4]	COVER,ROPS	0.0660(lbs); 0.030
100.	TA24048752	[2]	BOLT,KIT	0.9570(lbs); 0.435
110.	0401350160	[2]	WASHER,PLAIN	0.0242(lbs); 0.011
120.	0225450160	[2]	NUT,SLOTTED	0.0880(lbs); 0.040
130.	0401350160	[4]	WASHER,PLAIN	0.0242(lbs); 0.011
140.	0551150430	[2]	PIN,SPLIT	0.0088(lbs); 0.004
150.	3A11195540	[1]	LABEL,FLDNG ROPS CAUTION	ENGLISH 0.0066(lbs); 0.003
150.	3A11295540	[1]	LABEL,ROPS CAUTION	FRENCH 0.0066(lbs); 0.003
160.	TA24098482	[1]	LABEL, ROPS WARNING LABEL	ENGLISH 0.0110(lbs); 0.005
160.	3A11298480	[1]	LABEL,ROPS WARNING	FRENCH 0.0088(lbs); 0.004
170.	0113851430	[12]	BOLT,SEMS	0.1210(lbs); 0.055
180.	TD06047780	[1]	SEAT BELT, ASSY	1.7710(lbs); 0.805
190.	0177451025	[2]	BOLT,FLANGE	0.0440(lbs); 0.020
200.	0211650100	[2]	HEX.NUT	0.0088(lbs); 0.004
210.	TC05018472	[1]	COVER,BELT SEAT	0.1980(lbs); 0.090
220.	TA04018482	[1]	BRACKET,SEAT BELT RH	0.5940(lbs); 0.270
230.	TC03018492	[1]	BRACKET,SEAT BELT LH	0.6600(lbs); 0.300
240.	0278350100	[2]	NUT,FLANGE	0.0220(lbs); 0.010
