广数供应链运营团队, 18 02月, 2025，浏览： 201 次

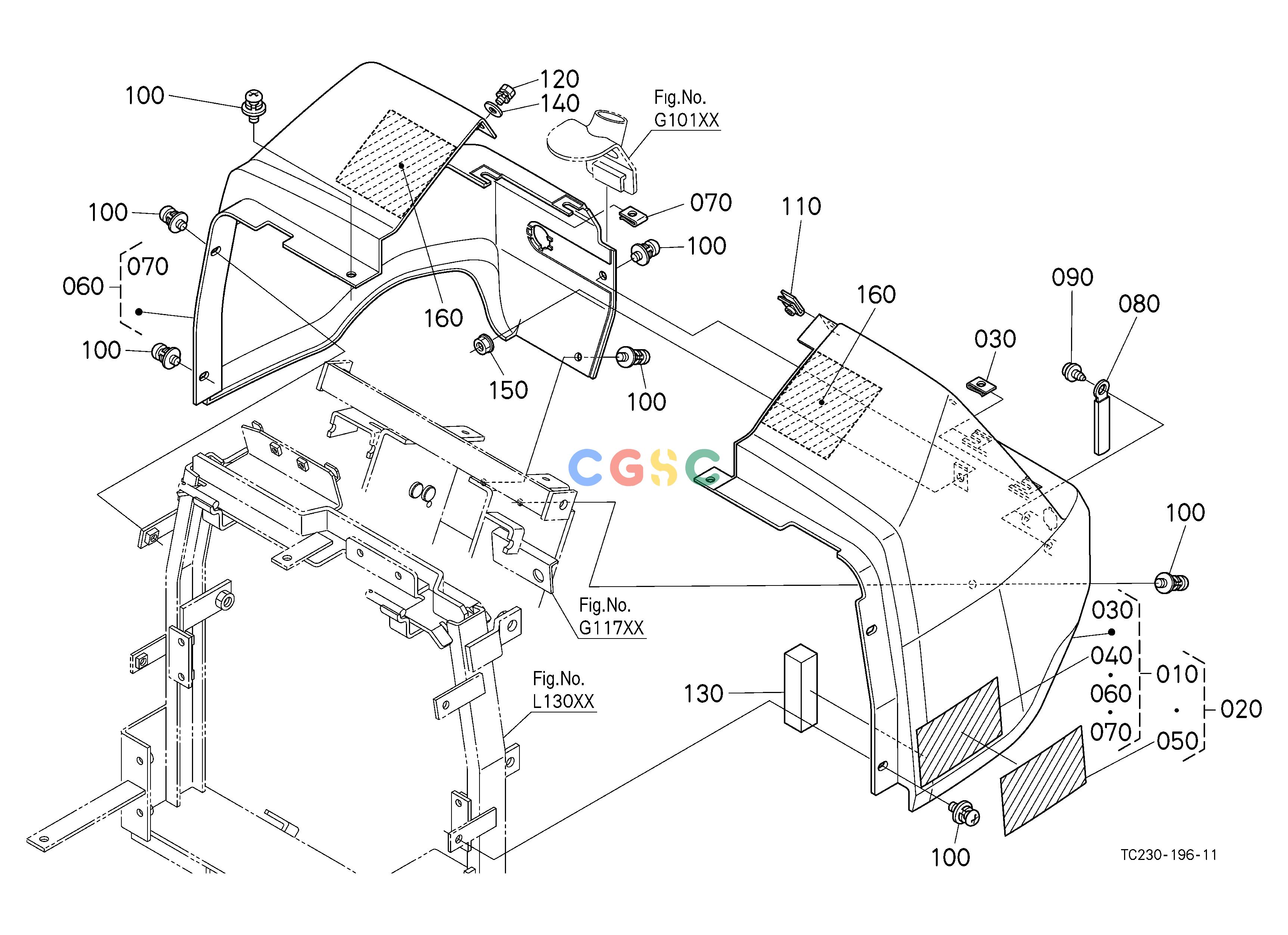

Pos.	Part No	Qty	Parts name	Comments
010.	TC22018920	[1]	KIT BONNET,REAR(A)	ENGLISH, ORDER BY REF.No.010 NEW PART.; <=88084 1.6500(lbs); 0.750
010.	TC22018950	[1]	KIT BONNET,REAR(A)	ENGLISH; >=88085 3.9600(lbs); 1.800
020.	TC22018930	[1]	KIT BONNET,REAR(B)	FRENCH, ORDER BY REF.No.020 NEW PART.; <=88084 1.6500(lbs); 0.750
020.	TC22018960	[1]	KIT BONNET,REAR(B)	FRENCH; >=88085 3.9600(lbs); 1.800
030.	3A01183490	[3]	NUT,SPRING	0.0220(lbs); 0.010
040.	TA04049650	[1]	LABEL,START CAUTION	ENGLISH 0.0088(lbs); 0.004
050.	TA04149650	[1]	LABEL,START CAUTION	FRENCH 0.0088(lbs); 0.004
060.	TC22018790	[1]	ASSY BONNET,REAR RH	SEE NOTE 1.7160(lbs); 0.780
070.	3A01183490	[3]	NUT,SPRING	0.0220(lbs); 0.010
080.	1527267590	[2]	CLAMP,CORD	0.0088(lbs); 0.004
090.	0361450610	[2]	SCREW,TAPPING	0.0110(lbs); 0.005
100.	0303450816	[8]	SCREW,W SEMS(PAN HEAD)	0.0220(lbs); 0.010
110.	T027099160	[1]	NUT,SPRING	0.0132(lbs); 0.006
120.	0102350614	[1]	BOLT,SEMS	; <=88995 0.0110(lbs); 0.005
120.	0102350612	[1]	BOLT,SEMS	; >=88996 0.0110(lbs); 0.005
130.	TC22018840	[1]	SPONGE,BONNET REAR	0.0220(lbs); 0.010
140.	0401550080	[1]	WASHER,PLAIN	0.0220(lbs); 0.010
150.	0275150080	[1]	NUT,FLANGE	0.0132(lbs); 0.006
160.	TC23018830	[2]	RUBBER,CUSHION	0.2288(lbs); 0.104
