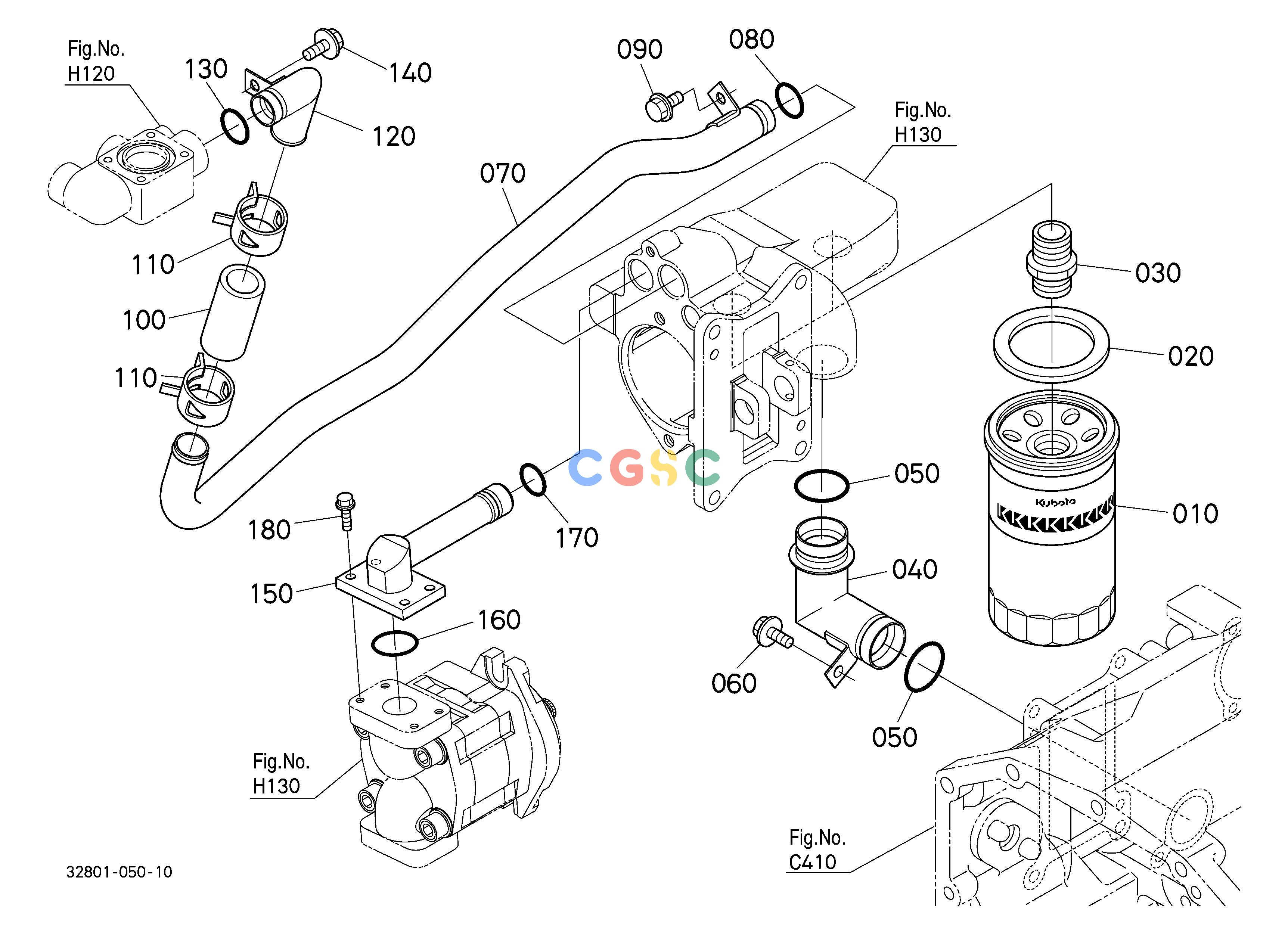

久保田零件查询H20100 HYDRAULIC OIL LINE(SUCTION) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
751 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
HHTA037710
|
[2] |
FILTER(CARTRIDGE,OIL)
|
1.6060(lbs); 0.730
|
| 020. |
T007037720
|
[2] |
MAGNET,OIL FILTER
|
0.0880(lbs); 0.040
|
| 030. |
3259038330
|
[2] |
JOINT,SCREW
|
0.1100(lbs); 0.050
|
| 040. |
3279156310
|
[1] |
PIPE,SUCTION
|
0.4400(lbs); 0.200
|
| 050. |
0481600320
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 060. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 070. |
3280156320
|
[1] |
PIPE,SUCTION
|
1.4300(lbs); 0.650
|
| 080. |
6781737190
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 100. |
3279156340
|
[1] |
HOSE,SUCTION
|
0.1056(lbs); 0.048
|
| 110. |
1624172970
|
[2] |
BAND,PIPE
|
0.0330(lbs); 0.015
|
| 120. |
3279156370
|
[1] |
PIPE,SUCTION
|
0.1980(lbs); 0.090
|
| 130. |
6781737190
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0175450812
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 150. |
3280133310
|
[1] |
PIPE,COMP.1 INLET
|
0.7040(lbs); 0.320
|
| 160. |
0481706310
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 170. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 180. |
0175450620
|
[4] |
BOLT,FLANGE
|
0.0154(lbs); 0.007
|
