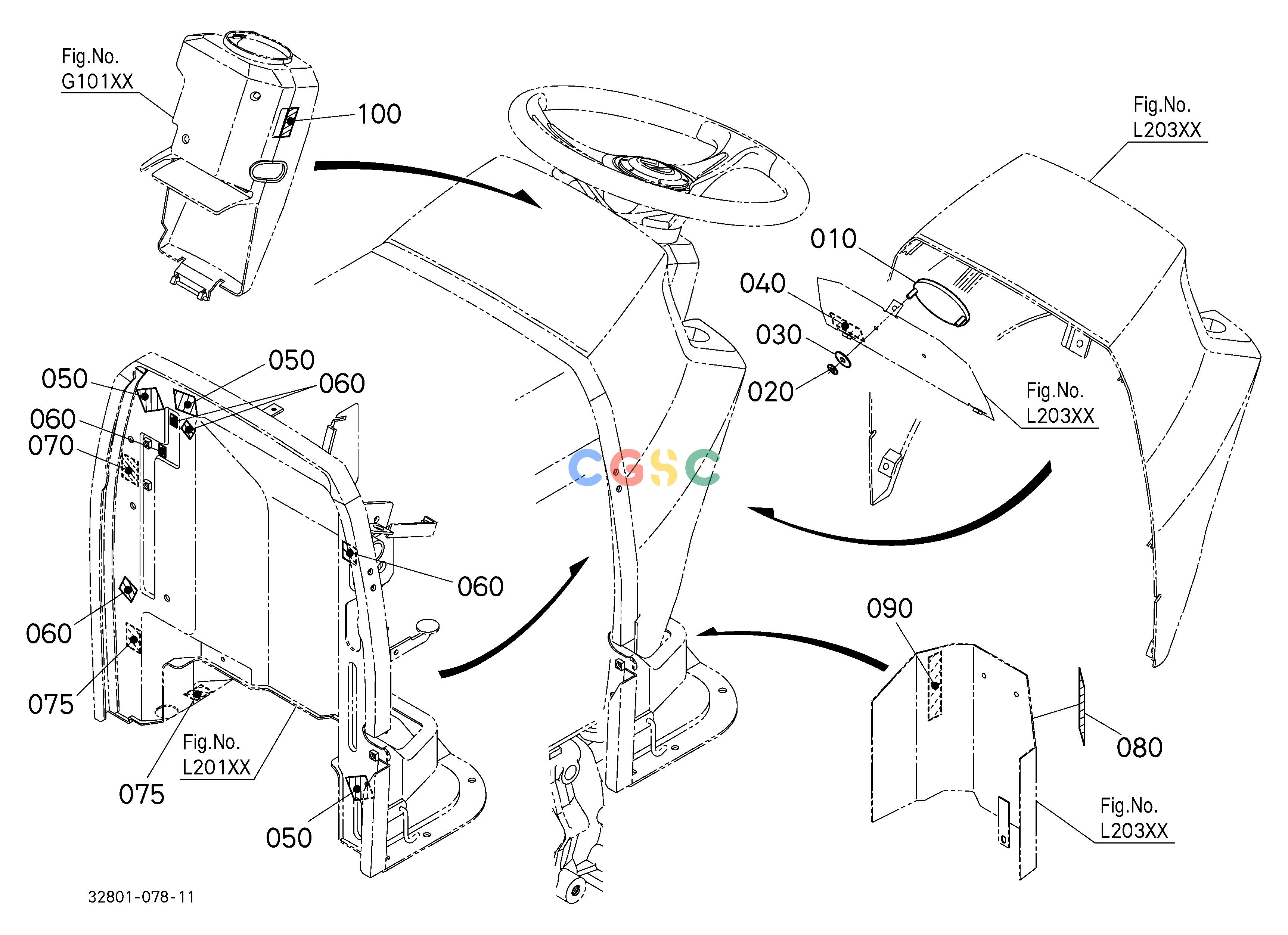

久保田零件查询R11000 LABEL (PANEL) LABELSEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278149510
|
[1] |
MARK,SYMBOL
|
0.0330(lbs); 0.015
|
| 020. |
RA11143690
|
[2] |
NUT
|
0.0022(lbs); 0.001
|
| 030. |
5561144210
|
[2] |
PLATE, WASHER
|
0.0154(lbs); 0.007
|
| 040. |
3278130220
|
[1] |
LABEL,KUBOTA
|
0.0022(lbs); 0.001
|
| 050. |
3455075420
|
[3] |
LABEL,FENDER HOLE
|
0.0022(lbs); 0.001
|
| 060. |
3455075410
|
[5] |
LABEL(HOLE)
|
0.0022(lbs); 0.001
|
| 070. |
TD06043270
|
[1] |
LABEL,FRAME PANEL
|
0.0022(lbs); 0.001
|
| 075. |
T106575410
|
[2] |
LABEL,HOLE
|
0.0022(lbs); 0.001
|
| 080. |
TD06049450
|
[1] |
MARK,TILT
|
0.0022(lbs); 0.001
|
| 090. |
TD17049460
|
[1] |
LABEL,PARKING
|
0.0022(lbs); 0.001
|
| 100. |
TD17055340
|
[1] |
LABEL,HI-LO CHANGE
|
0.0022(lbs); 0.001
|
