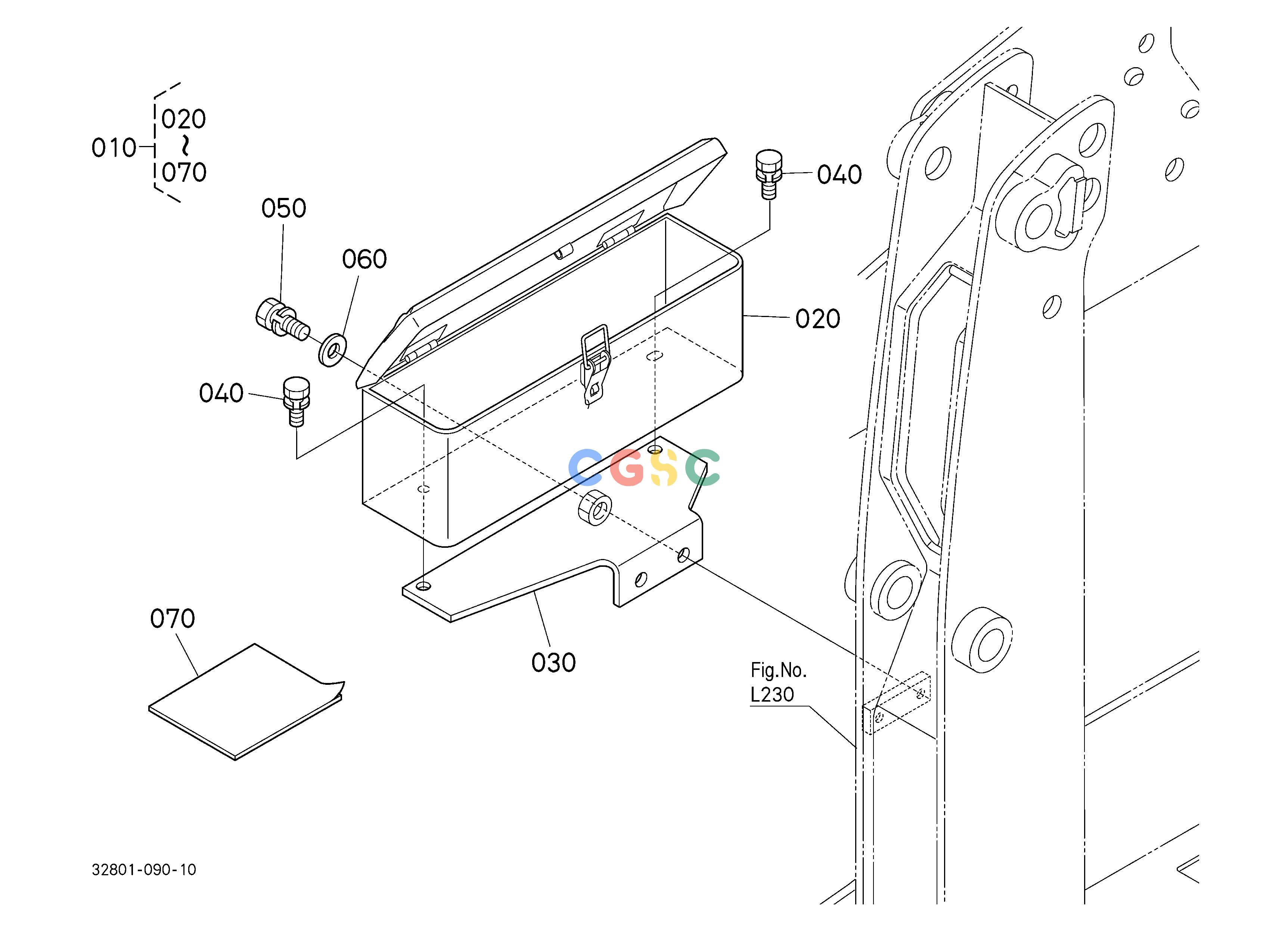

久保田零件查询T16500 TOOL BOX KIT (W/G No.L9476) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3278196322
|
[1] |
KIT.TOOL BOX
|
10.1200(lbs); 4.600
|
| 020. |
3A13190232
|
[1] |
CASE,TOOLS
|
5.7200(lbs); 2.600
|
| 030. |
3278196370
|
[1] |
STAY,TOOL BOX
|
2.9480(lbs); 1.340
|
| 040. |
0112350820
|
[2] |
BOLT,SEMS
|
0.0242(lbs); 0.011
|
| 050. |
0113351020
|
[2] |
BOLT,SEMS
|
0.0440(lbs); 0.020
|
| 060. |
0401350100
|
[2] |
WASHER,PLAIN
|
0.0088(lbs); 0.004
|
| 070. |
99999-99999
|
[1] |
MANUAL,ASSEMBLY
|
0.0022(lbs); 0.001
|
