久保田零件查询A43001 RESERVE TANK [OLD] ## S.No.<=56881 S.No.<=56881 COOLING WATER SYSTEMEPC Kubota online_久保田Kubota_工程机械

久保田零件查询A43001 RESERVE TANK [OLD] ## S.No.<=56881 S.No.;<=56881 COOLING WATER SYSTEMEPC Kubota online

广数供应链运营团队, 18 02月, 2025，浏览： 521 次

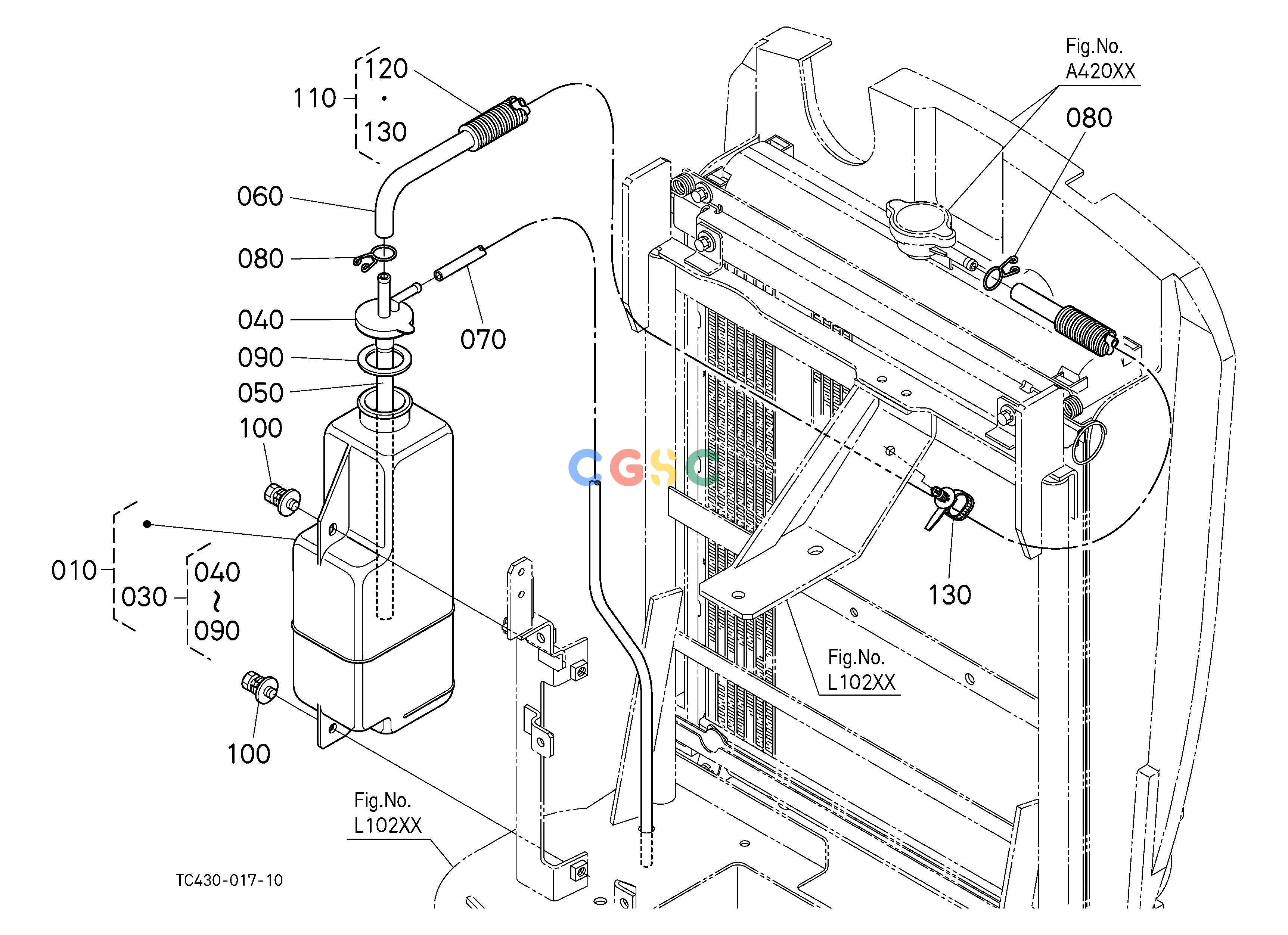

Pos.	Part No	Qty	Parts name	Comments
010.	TC42088604	[1]	ASSY.TANK,RESERVE	ORDER BY REF.No.010 NEW PART.; <=52308 0.6270(lbs); 0.285
010.	TC42088605	[1]	ASSY.TANK,RESERVE	; >=52309 0.6270(lbs); 0.285
030.	TC42088624	[1]	ASSY.CAP	ORDER BY REF.No.010 NEW PART.; <=52308 0.2640(lbs); 0.120
030.	TC42088625	[1]	ASSY.CAP	; >=52309 0.2640(lbs); 0.120
040.	TC42288643	[1]	CAP	ORDER BY REF.No.010 NEW PART.; <=52308 0.0110(lbs); 0.005
040.	TC42288644	[1]	CAP	; >=52309 0.0110(lbs); 0.005
050.	TC42288650	[1]	HOSE,1	0.0616(lbs); 0.028
060.	TC42288662	[1]	HOSE,2	0.1430(lbs); 0.065
070.	TC42088672	[1]	HOSE,3	0.0220(lbs); 0.010
080.	TC42288680	[2]	CLIP	0.0066(lbs); 0.003
090.	TC42288630	[1]	GASKET	0.0044(lbs); 0.002
100.	0102750616	[2]	BOLT,W SEMS(LARGE WASHER)	0.0220(lbs); 0.010
110.	TC43088700	[1]	TUBE,ASSY.(RESERVE)	0.0000(lbs); 0.000
120.	TC42288690	[1]	TUBE,CORRUGATE	; <=54752 0.0000(lbs); 0.000
120.	TC42288692	[1]	TUBE,CORRUGATE	; >=54753 0.0000(lbs); 0.000
130.	TC40430550	[1]	CLIP(T4.5)	0.0000(lbs); 0.000
