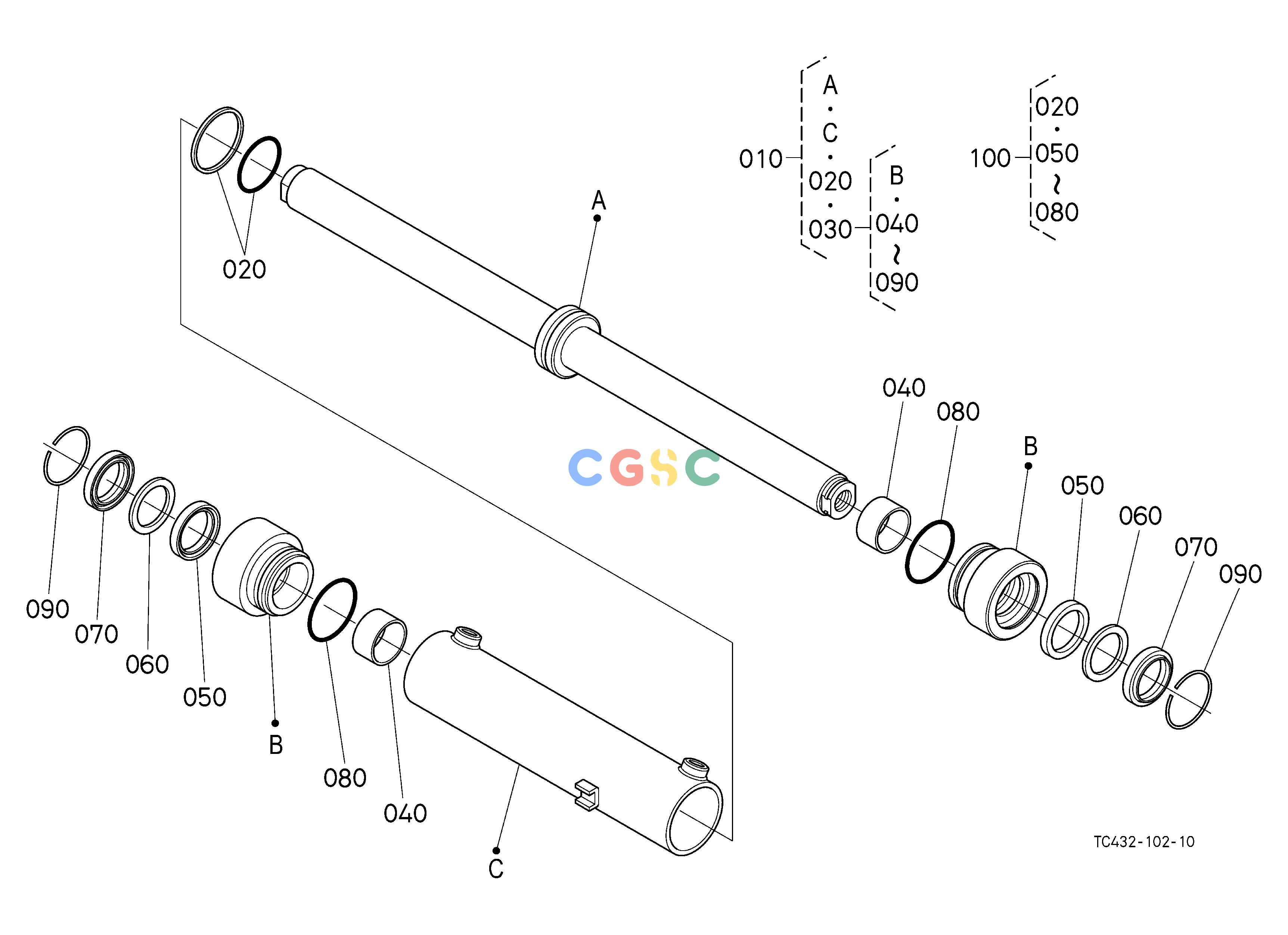

久保田零件查询G18503 STEERING CYLINDER [COMPONENT PARTS] STEERINGEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
696 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC43237800
|
[1] |
CYLINDER,HYDRAULIC
|
0.0000(lbs); 0.000
|
| 020. |
TD06037570
|
[1] |
SEAL,PISTON
|
0.0220(lbs); 0.010
|
| 030. |
TC43237840
|
[2] |
ASSY END,ROD
|
0.0000(lbs); 0.000
|
| 040. |
TD06037920
|
[2] |
BUSH
|
0.0704(lbs); 0.032
|
| 050. |
TD06037560
|
[2] |
SEAL,ROD
|
0.0110(lbs); 0.005
|
| 060. |
TD06037930
|
[2] |
RING,BACK UP
|
0.0110(lbs); 0.005
|
| 070. |
TC43237580
|
[2] |
SEAL,DUST
|
0.0000(lbs); 0.000
|
| 080. |
TD06037940
|
[2] |
O RING
|
0.0044(lbs); 0.002
|
| 090. |
TD06037960
|
[2] |
RING,SNAP
|
0.0066(lbs); 0.003
|
| 100. |
TC43237950
|
[1] |
KIT SEAL
|
0.0000(lbs); 0.000
|
