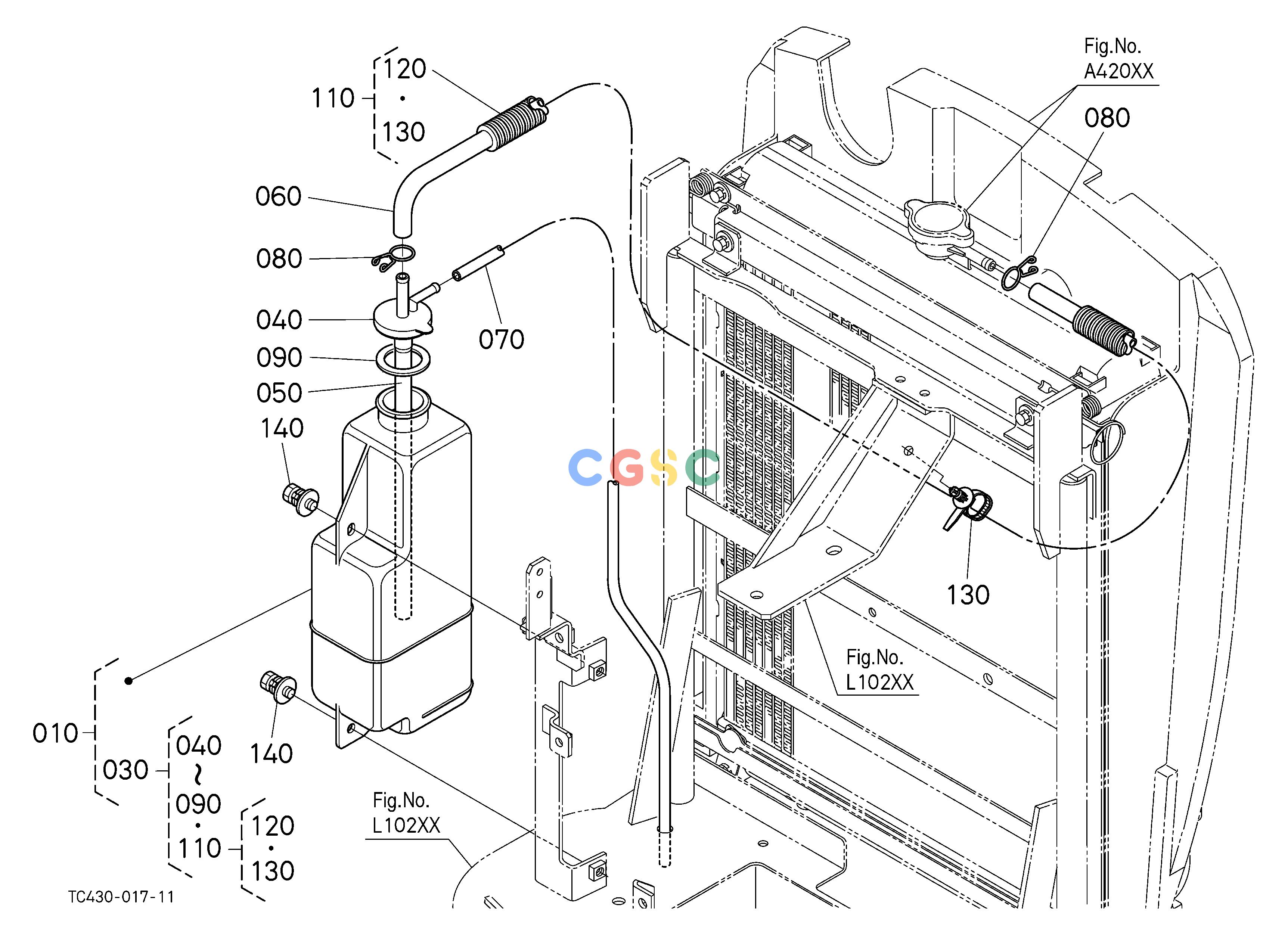

久保田零件查询A43002 RESERVE TANK [NEW] ## S.No.>=10774 S.No.;>=10774 COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
188 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TC43088600
|
[1] |
TANK,ASSY( RESERVE)
|
0.0000(lbs); 0.000
|
| 030. |
TC43088620
|
[1] |
CAP,ASSY
|
0.0000(lbs); 0.000
|
| 040. |
TC42288644
|
[1] |
CAP
|
0.0110(lbs); 0.005
|
| 050. |
TC42288650
|
[1] |
HOSE,1
|
0.0616(lbs); 0.028
|
| 060. |
TC42288662
|
[1] |
HOSE,2
|
0.1430(lbs); 0.065
|
| 070. |
TC42088672
|
[1] |
HOSE,3
|
0.0220(lbs); 0.010
|
| 080. |
TC42288680
|
[2] |
CLIP
|
0.0066(lbs); 0.003
|
| 090. |
TC42288630
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 110. |
TC43088700
|
[1] |
TUBE,ASSY.(RESERVE)
|
0.0000(lbs); 0.000
|
| 120. |
TC42288692
|
[1] |
TUBE,CORRUGATE
|
0.0000(lbs); 0.000
|
| 130. |
TC40430550
|
[1] |
CLIP(T4.5)
|
0.0000(lbs); 0.000
|
| 140. |
0102750616
|
[2] |
BOLT,W SEMS(LARGE WASHER)
|
0.0220(lbs); 0.010
|
