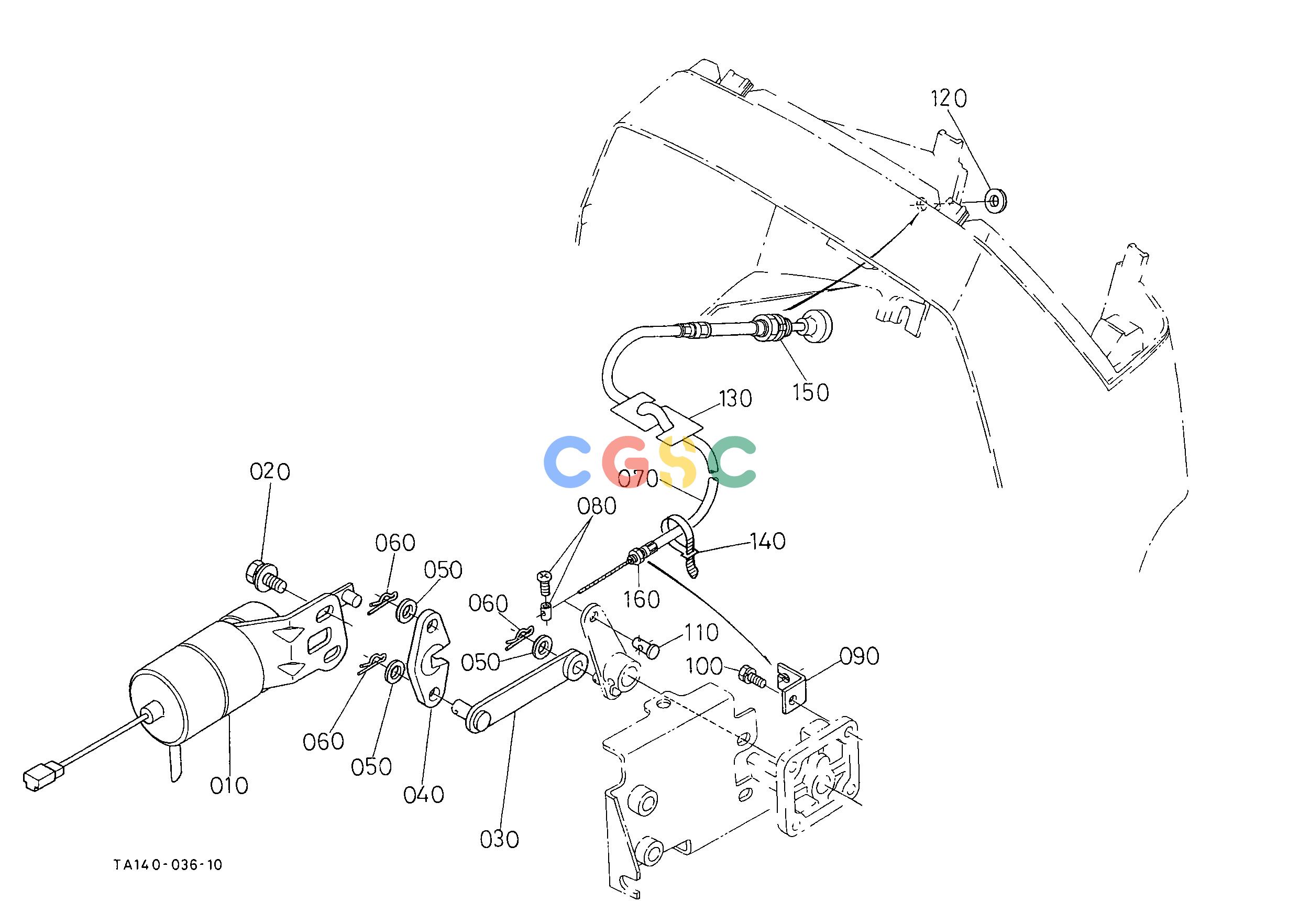

久保田零件查询A00200 STOP SOLENOID/ENGINE STOP WIRE ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1547160010
|
[1] |
SOLENOID STOP
|
0.7700(lbs); 0.350
|
| 020. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 030. |
1733160150
|
[1] |
LEVER STOP
|
0.0550(lbs); 0.025
|
| 040. |
1547160162
|
[1] |
LEVER STOP
|
0.0154(lbs); 0.007
|
| 050. |
0401250060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0552560600
|
[3] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 070. |
T007044214
|
[1] |
WIRE ENGINE STOP
|
0.2420(lbs); 0.110
|
| 080. |
T007044260
|
[1] |
SCREW
|
0.0110(lbs); 0.005
|
| 090. |
3407044220
|
[1] |
HOLDER WIRE
|
0.0440(lbs); 0.020
|
| 100. |
0102350620
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 110. |
3407044240
|
[1] |
PIN JOINT
|
0.0110(lbs); 0.005
|
| 120. |
0401150100
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 130. |
3455044220
|
[1] |
BREAKER STOP WIRE
|
0.0176(lbs); 0.008
|
| 140. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 150. |
0277160100
|
[1] |
NUT FLANGE
|
0.0220(lbs); 0.010
|
| 160. |
0201260060
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
