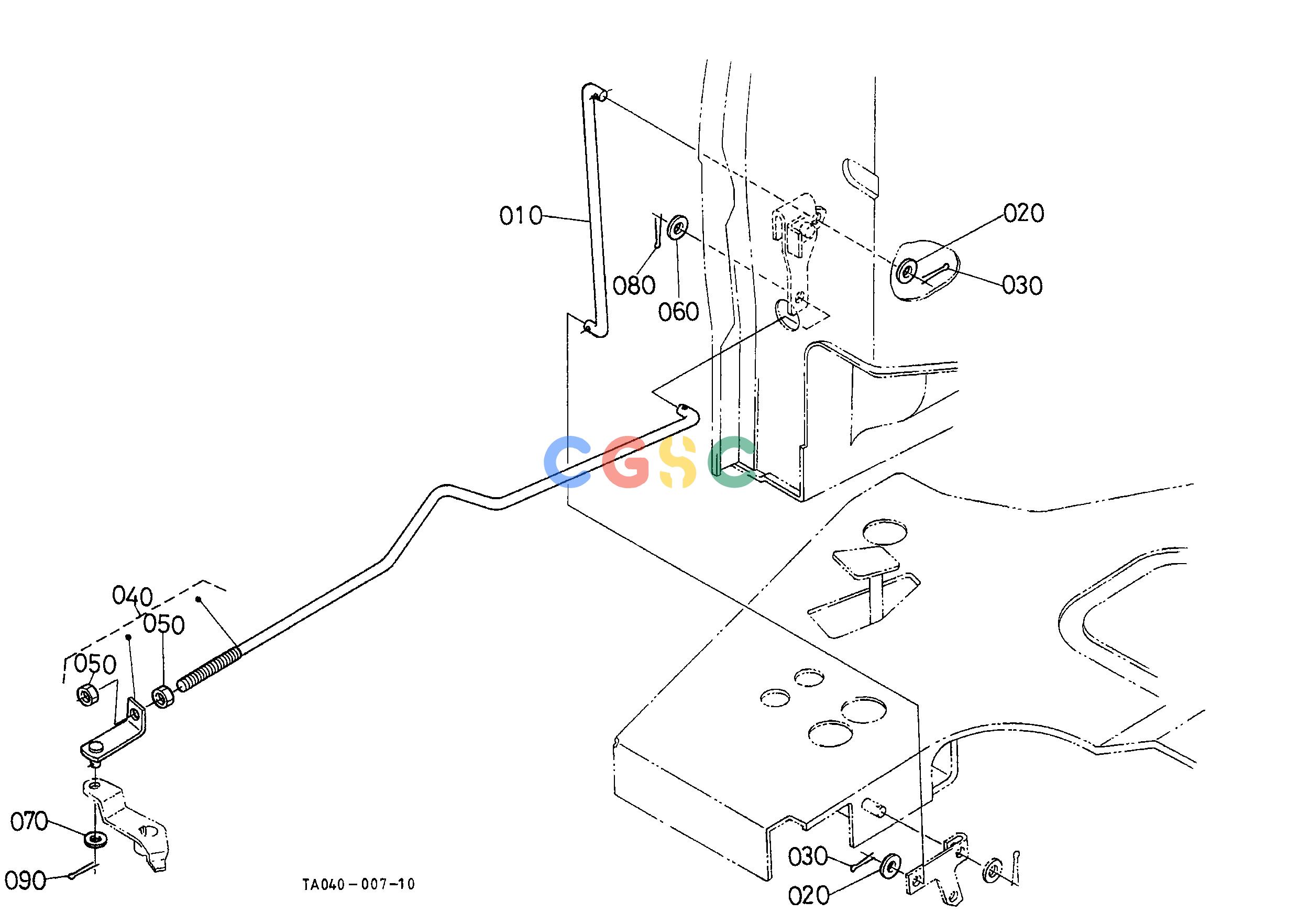

久保田零件查询A03001 ACCELERATOR ROD [GST TYPE] ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407042920
|
[1] |
ROD PEDAL
|
0.1430(lbs); 0.065
|
| 020. |
0401250060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 030. |
0551150218
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 040. |
TA04042900
|
[1] |
ASSY ROD ACCEL.
|
0.5412(lbs); 0.246
|
| 050. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 060. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
0551151612
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
