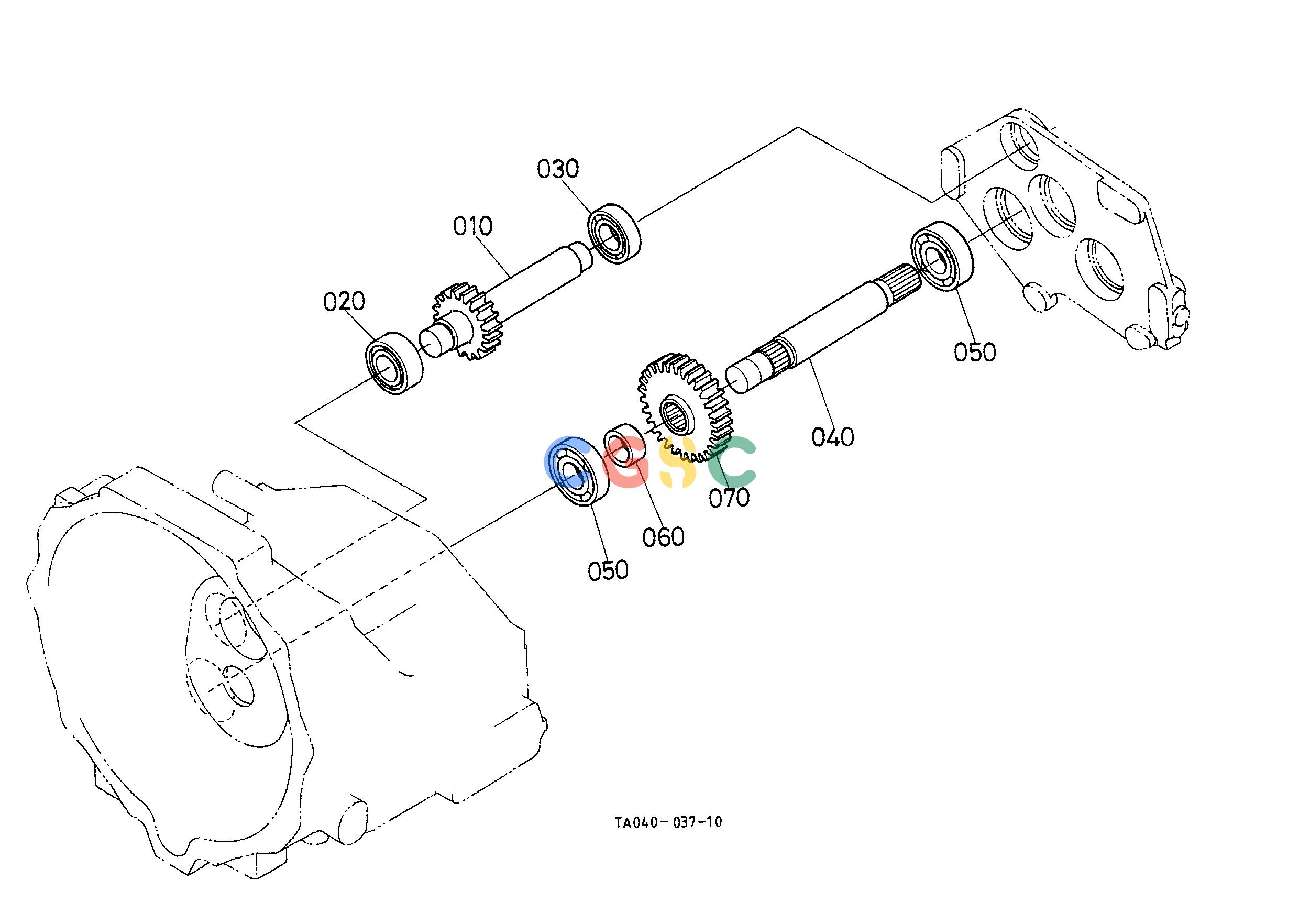

久保田零件查询D13000 PTO COUNTERSHAFT [GST TYPE] CLUTCH/TRANSMISSION/REAR AXLEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04023200
|
[1] |
GEAR-SHAFT I-PTO
|
3.4870(lbs); 1.585
|
| 020. |
3374031180
|
[1] |
BEARING ROLLER
|
0.4840(lbs); 0.220
|
| 030. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 040. |
TA04023150
|
[1] |
COUNTERSHAFT I-PTO
|
2.1780(lbs); 0.990
|
| 050. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 060. |
TA04023230
|
[1] |
COLLAR
|
0.1210(lbs); 0.055
|
| 070. |
TA04023160
|
[1] |
GEAR I-PTO
|
2.0130(lbs); 0.915
|
