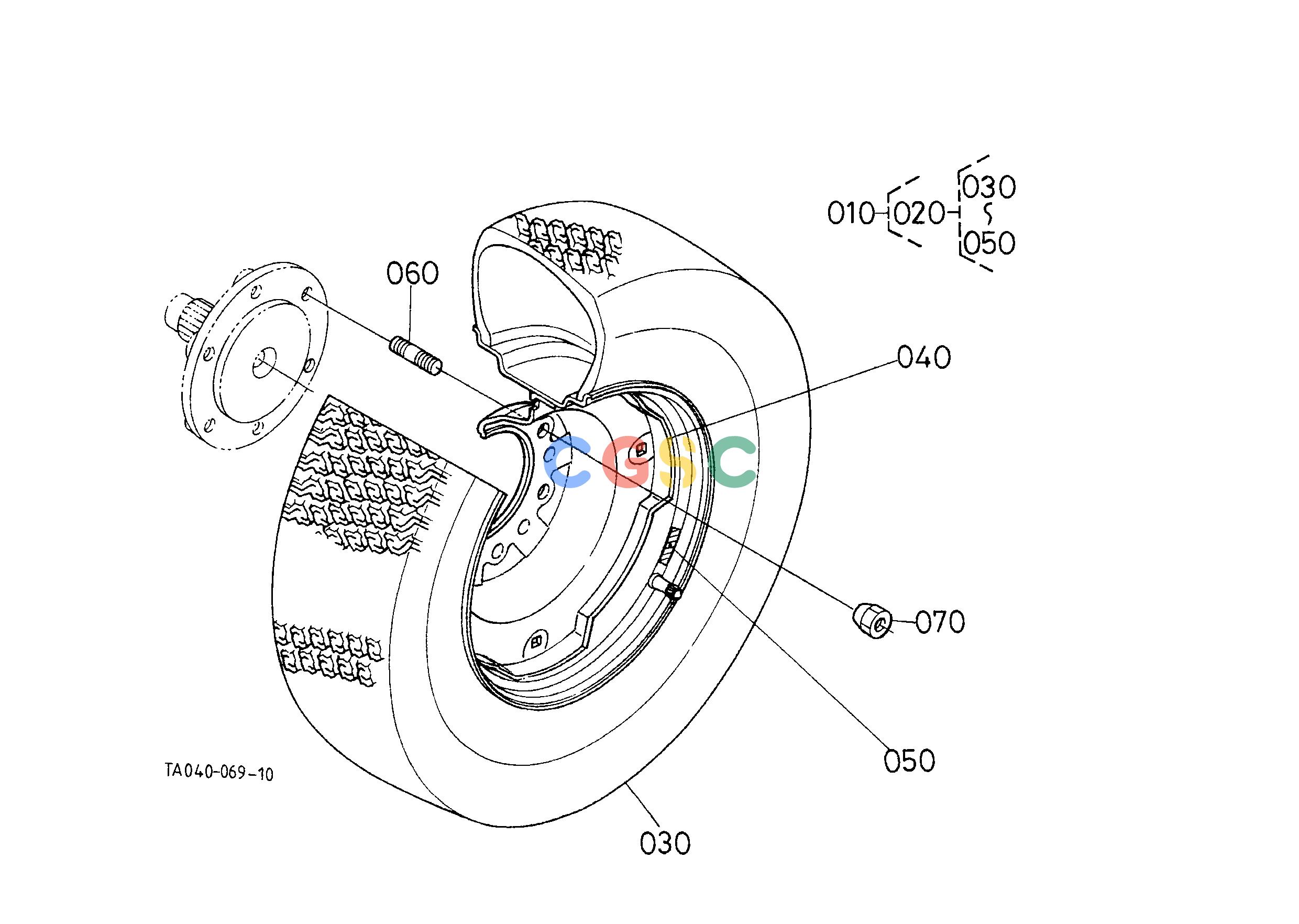

久保田零件查询P10104 FRONT WHEEL (29 12.50-15) FRONT/REAR TIREEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
688 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3508011500
|
[1] |
ASSY TIRE
|
0.0000(lbs); 0.000
|
| 020. |
3508011510
|
[2] |
TIRE ASSY
|
0.0000(lbs); 0.000
|
| 030. |
3508011530
|
[2] |
TIRE
|
0.0000(lbs); 0.000
|
| 040. |
3508011540
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 050. |
3508011550
|
[2] |
LABEL TIRE
|
0.0000(lbs); 0.000
|
| 060. |
3545049160
|
[12] |
STUD
|
0.1100(lbs); 0.050
|
| 060. |
TA15049160
|
[12] |
STUD WHEEL
|
0.1100(lbs); 0.050
|
| 070. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
