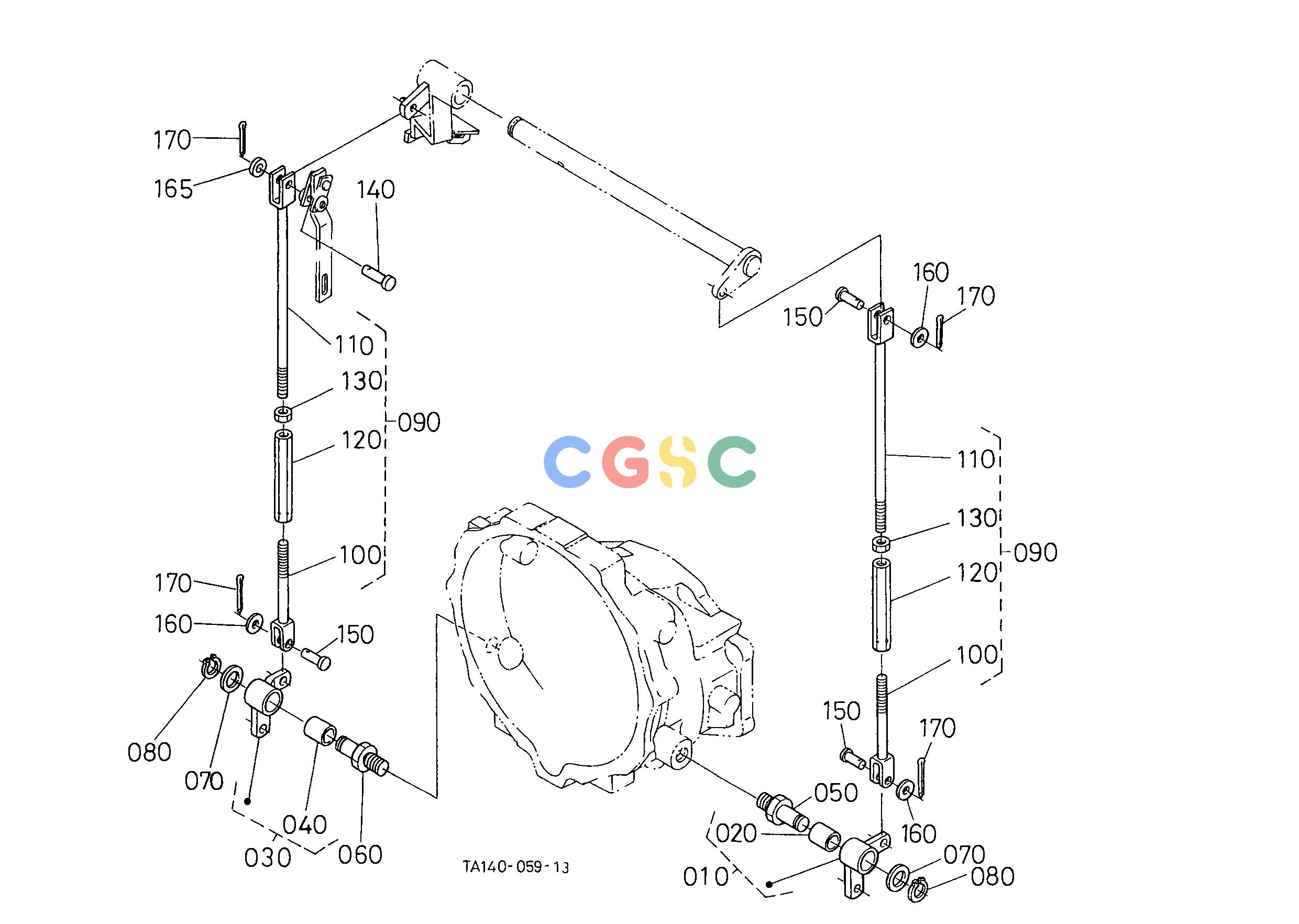

久保田零件查询D40502 BRAKE ROD 1 [HST TYPE] [ROPS TYPE] REAR AXLE/BRAKEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407044810
|
[1] |
ASSY LEVER BRAKE LH
|
0.5720(lbs); 0.260
|
| 020. |
3407044890
|
[1] |
BUSH
|
0.0770(lbs); 0.035
|
| 030. |
3407044910
|
[1] |
ASSY LEVER BRAKE RH
|
0.5720(lbs); 0.260
|
| 040. |
3407044890
|
[1] |
BUSH
|
0.0770(lbs); 0.035
|
| 050. |
3407044870
|
[1] |
SHAFT BRAKE LH
|
0.4950(lbs); 0.225
|
| 060. |
3407044880
|
[1] |
SHAFT BRAKE RH
|
0.4840(lbs); 0.220
|
| 070. |
0401150200
|
[2] |
WASHER PLAIN
|
0.0330(lbs); 0.015
|
| 080. |
0461200200
|
[2] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
3407044800
|
[2] |
ASSY ROD BRAKE
|
0.9350(lbs); 0.425
|
| 100. |
3407044840
|
[2] |
ROD BRAKE LOWER
|
0.2860(lbs); 0.130
|
| 110. |
3407044460
|
[2] |
ROD CLUTCH BRAKE
|
0.4950(lbs); 0.225
|
| 120. |
3235028980
|
[2] |
TURNBUCKLE
|
0.1540(lbs); 0.070
|
| 130. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 140. |
0512251035
|
[1] |
PIN JOINT
|
0.0506(lbs); 0.023
|
| 150. |
0512261028
|
[3] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 160. |
0401360100
|
[3] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 165. |
TA24056470
|
[1] |
COLLAR BRAKE ROD
|
0.0286(lbs); 0.013
|
| 170. |
0551150318
|
[4] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
