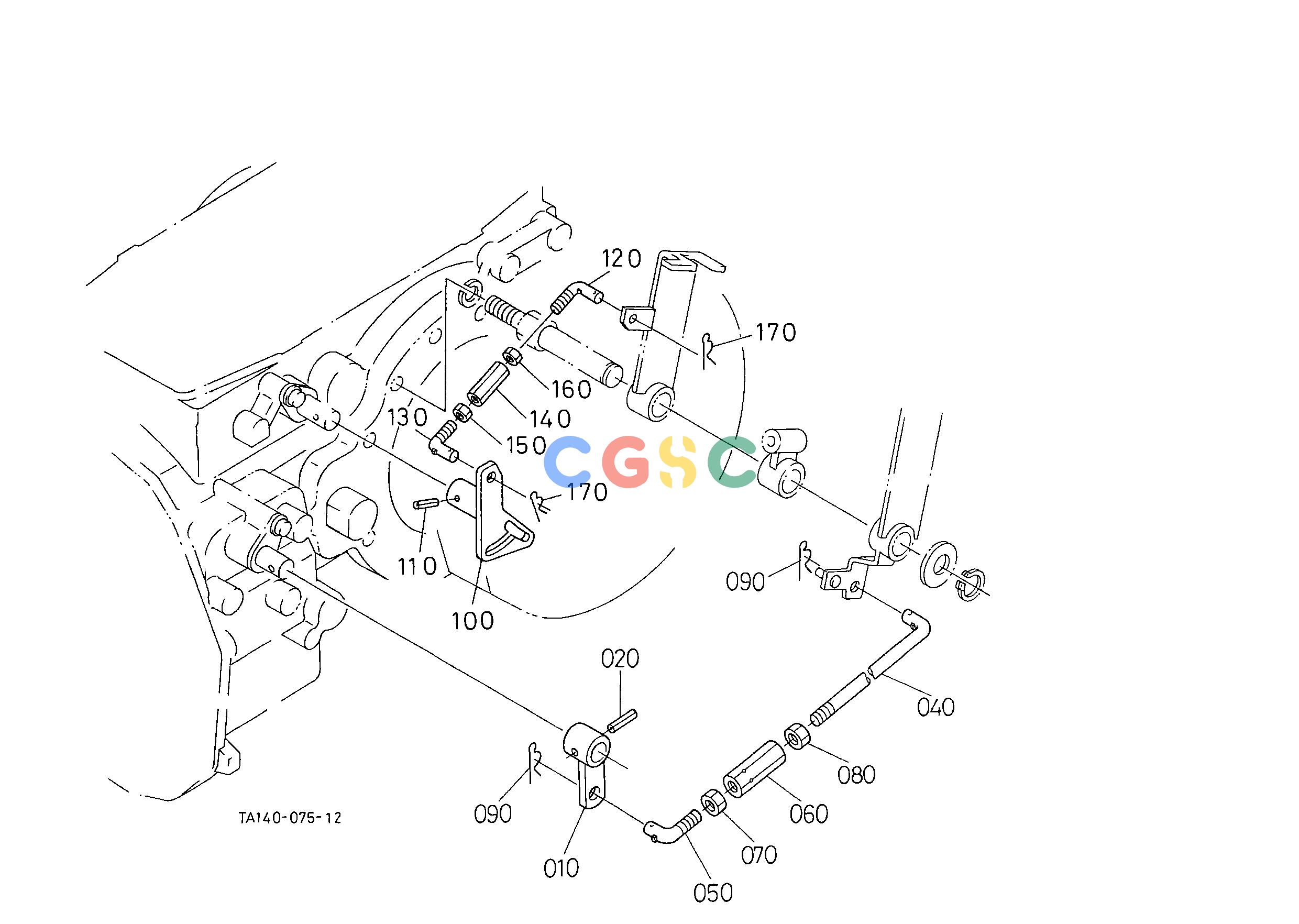

久保田零件查询E11200 RANGE GEAR SHIFT ROD [HST TYPE] SPEED CHANGE SHIFT FORK/SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3407024462
|
[1] |
LEVER RANGE SHIFT
|
0.1980(lbs); 0.090
|
| 020. |
0541100628
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 040. |
TA24054472
|
[1] |
ROD RANGE
|
0.1584(lbs); 0.072
|
| 050. |
TA24054592
|
[1] |
ROD RANGE L
|
0.0660(lbs); 0.030
|
| 060. |
TA24054480
|
[1] |
TURNBUCKLE
|
0.0682(lbs); 0.031
|
| 070. |
3235028990
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 080. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 090. |
0551561000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 100. |
TA24054562
|
[1] |
LEVER RANGE SHIFT
|
0.6710(lbs); 0.305
|
| 110. |
0541100628
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 120. |
TA24054582
|
[1] |
ROD RANGE R
|
0.0660(lbs); 0.030
|
| 130. |
TA24054592
|
[1] |
ROD RANGE L
|
0.0660(lbs); 0.030
|
| 140. |
TA24054480
|
[1] |
TURNBUCKLE
|
0.0682(lbs); 0.031
|
| 150. |
3235028990
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 160. |
0211650100
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 170. |
0551561000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
