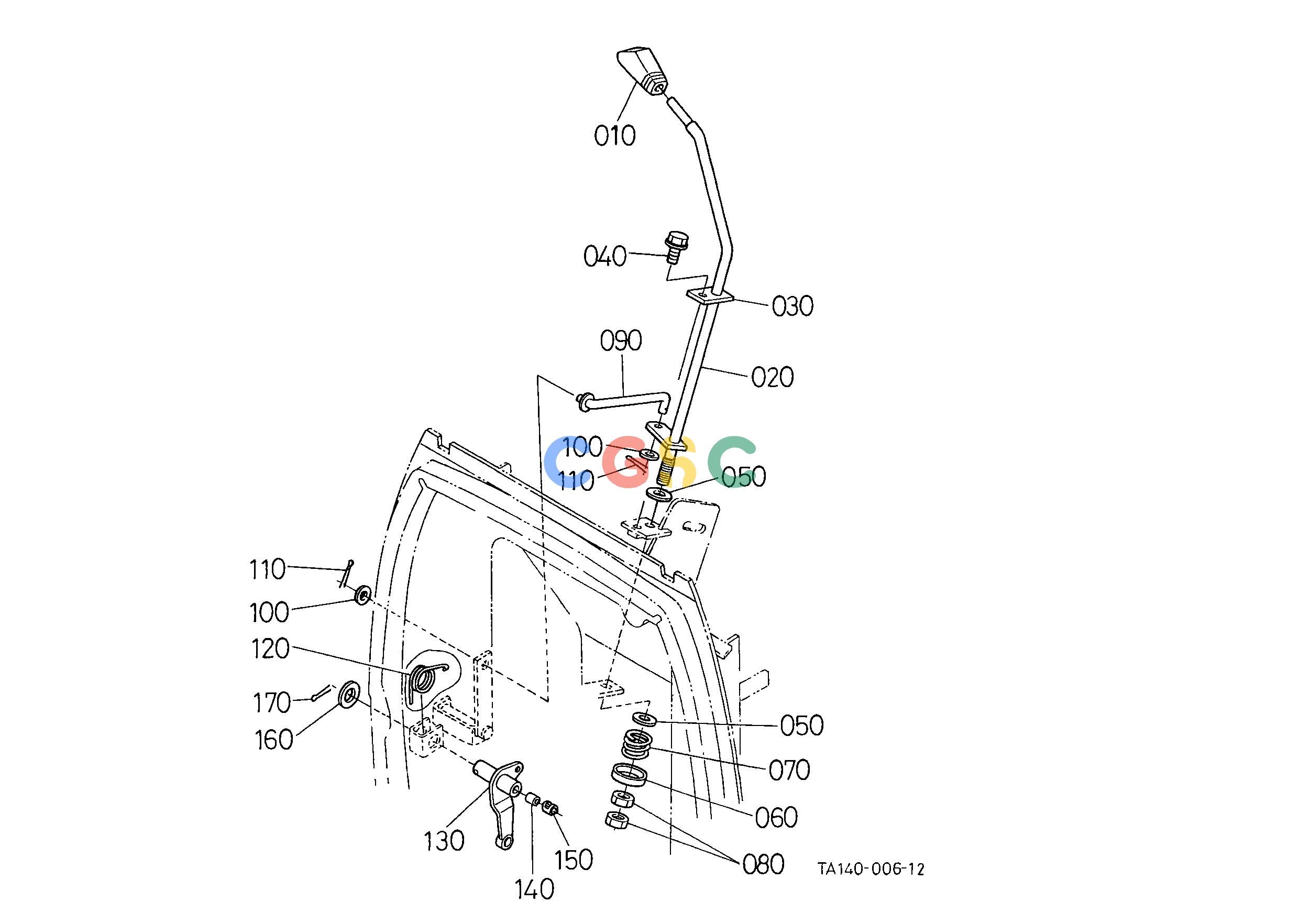

久保田零件查询A01003 ACCELERATOR LEVER [CAB TYPE] ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
631 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA04049873
|
[1] |
GRIP
|
0.0528(lbs); 0.024
|
| 020. |
TA04042814
|
[1] |
SHAFT ACCEL.CONTROL
|
0.9240(lbs); 0.420
|
| 030. |
T007045910
|
[1] |
SUPPORT ACCEL.LEVER
|
0.0550(lbs); 0.025
|
| 040. |
0175450816
|
[1] |
BOLT FLANGE
|
0.0242(lbs); 0.011
|
| 050. |
0401360120
|
[2] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 060. |
3325110270
|
[1] |
CAP SPRING
|
0.0220(lbs); 0.010
|
| 070. |
3325110320
|
[1] |
SPRING ACCEL.LEVER
|
0.0264(lbs); 0.012
|
| 080. |
0217450120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 090. |
T018042820
|
[1] |
ROD CONNECTING
|
0.1540(lbs); 0.070
|
| 100. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 120. |
T027076400
|
[1] |
SPRING
|
0.0396(lbs); 0.018
|
| 130. |
T027076450
|
[1] |
LEVER ACCEL.LINK
|
0.3850(lbs); 0.175
|
| 140. |
6715638220
|
[1] |
PIECE GUIDE
|
0.0110(lbs); 0.005
|
| 150. |
3674194450
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 160. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 170. |
0551150330
|
[1] |
PIN SPLIT
|
0.0110(lbs); 0.005
|
