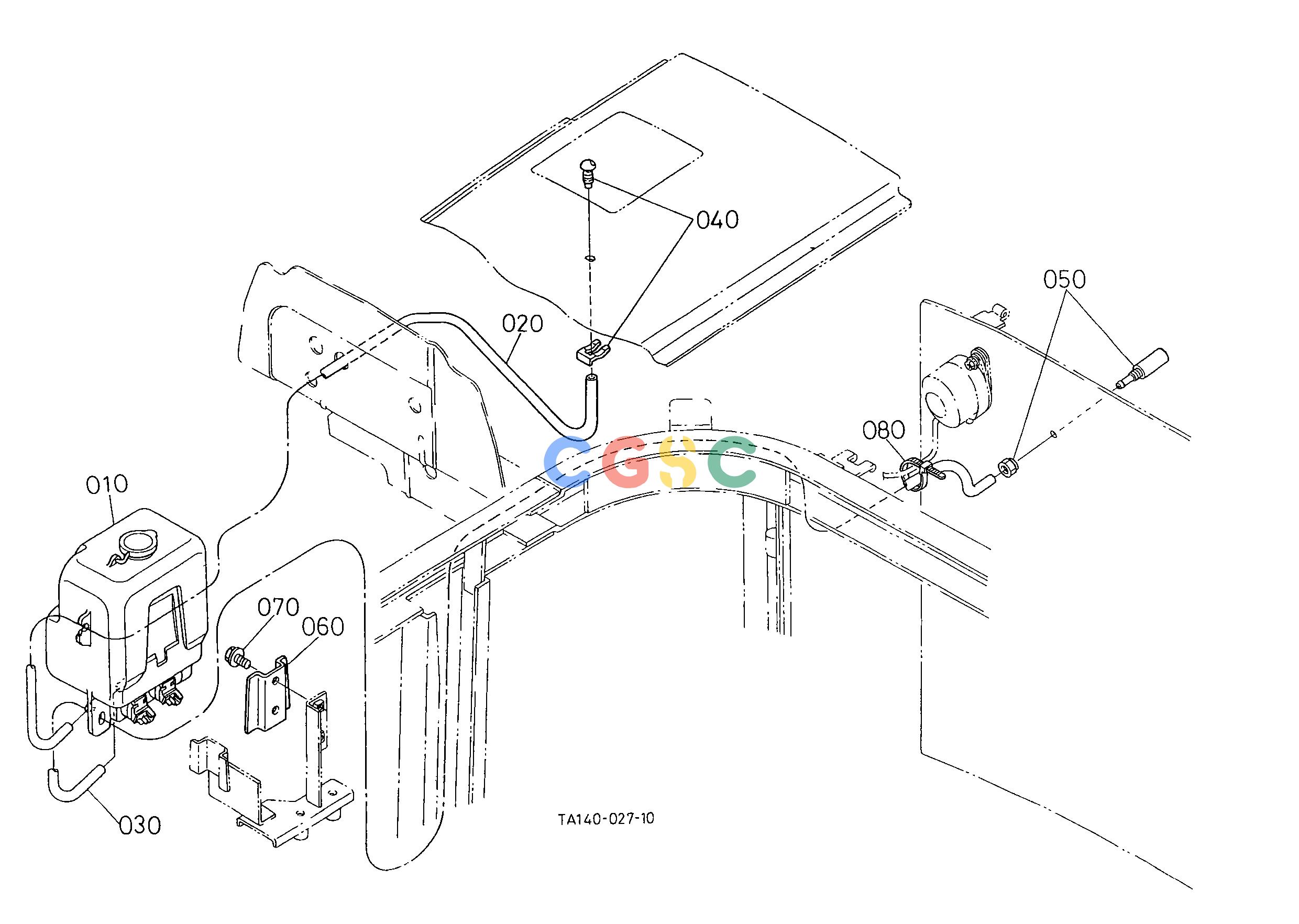

久保田零件查询B42001 WASHER TANK [CA] [CAB TYPE] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
602 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F76055760
|
[1] |
TANK DOUBLE WASHER
|
1.5400(lbs); 0.700
|
| 020. |
3455071160
|
[1] |
HOSE WASHER
|
0.0440(lbs); 0.020
|
| 030. |
T029087680
|
[1] |
HOSE WASHER
|
0.2750(lbs); 0.125
|
| 040. |
TA14071170
|
[1] |
NOZZLE WASHER
|
0.0110(lbs); 0.005
|
| 050. |
3F76054180
|
[1] |
NOZZLE WASHER
|
0.0176(lbs); 0.008
|
| 060. |
3F76054060
|
[1] |
BRACKET TANK
|
0.1430(lbs); 0.065
|
| 070. |
0175450616
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 080. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
