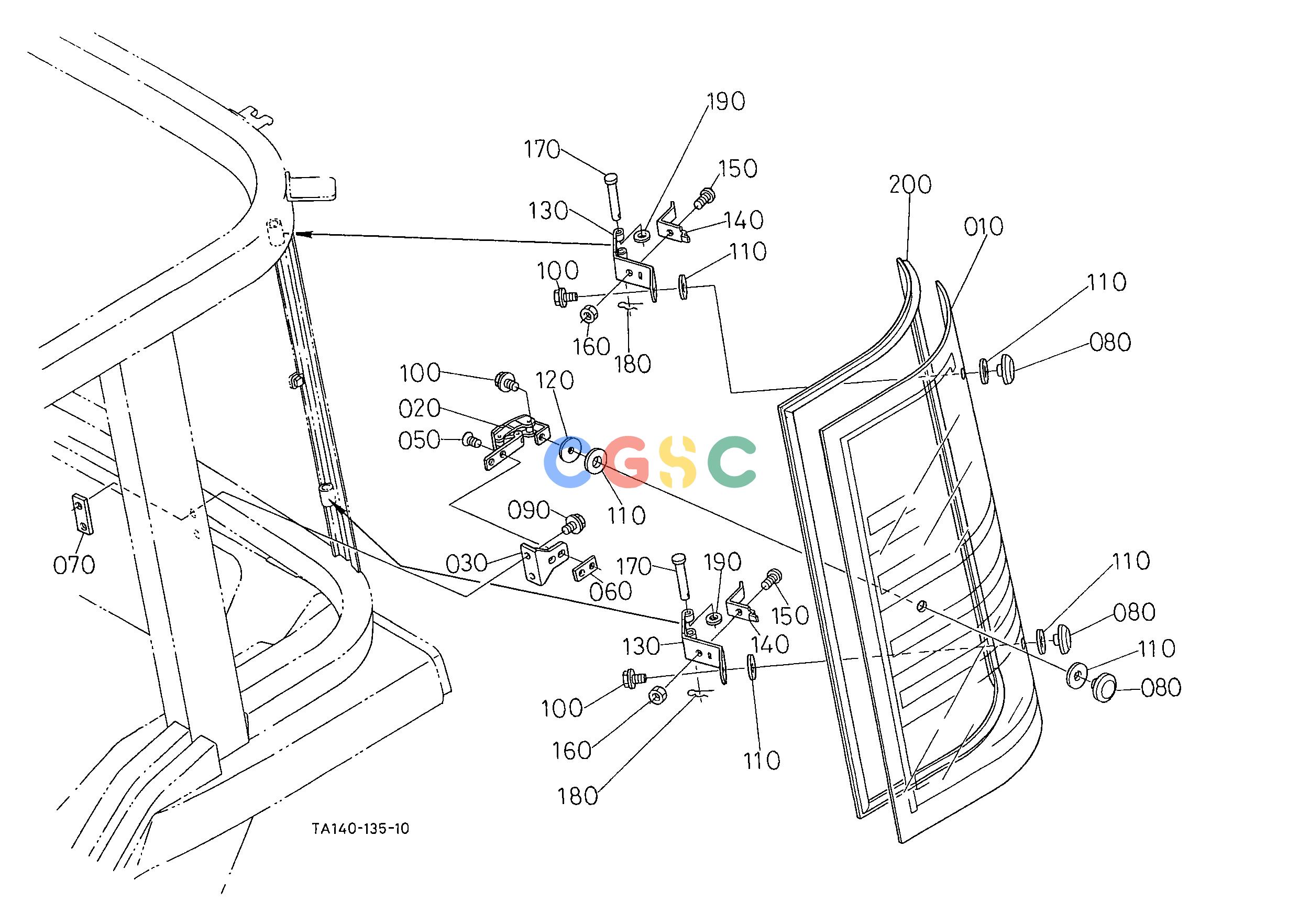

久保田零件查询M20501 GLASS LH [CA] [CAB TYPE] CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14070532
|
[1] |
GLASS LH
|
7.9200(lbs); 3.600
|
| 020. |
T027071490
|
[1] |
COMP.LOCK
|
0.2090(lbs); 0.095
|
| 030. |
T027061840
|
[1] |
STAY
|
0.1540(lbs); 0.070
|
| 050. |
T027061860
|
[2] |
SCREW CSK-HD
|
0.0088(lbs); 0.004
|
| 060. |
T027061710
|
[1] |
NUT WINDOW LOCK
|
0.0352(lbs); 0.016
|
| 070. |
T027061990
|
[1] |
NUT
|
0.0550(lbs); 0.025
|
| 080. |
T027061890
|
[3] |
HOLDER
|
0.0242(lbs); 0.011
|
| 090. |
3040019060
|
[2] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
3040019060
|
[3] |
BOLT FLANGE
|
0.0132(lbs); 0.006
|
| 110. |
T027061980
|
[6] |
GASKET
|
0.0066(lbs); 0.003
|
| 120. |
T027061970
|
[1] |
PLATE
|
0.0220(lbs); 0.010
|
| 130. |
T027061880
|
[2] |
HINGE
|
0.1870(lbs); 0.085
|
| 140. |
T027061720
|
[2] |
SPRING
|
0.0264(lbs); 0.012
|
| 150. |
T018083610
|
[2] |
SCREW PAN-HD
|
0.0110(lbs); 0.005
|
| 160. |
T027086220
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 170. |
T027061810
|
[2] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 180. |
0552550800
|
[2] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 190. |
T027061610
|
[2] |
COLLAR
|
0.0022(lbs); 0.001
|
| 200. |
T029061915
|
[1] |
SHIELD
|
0.2640(lbs); 0.120
|
