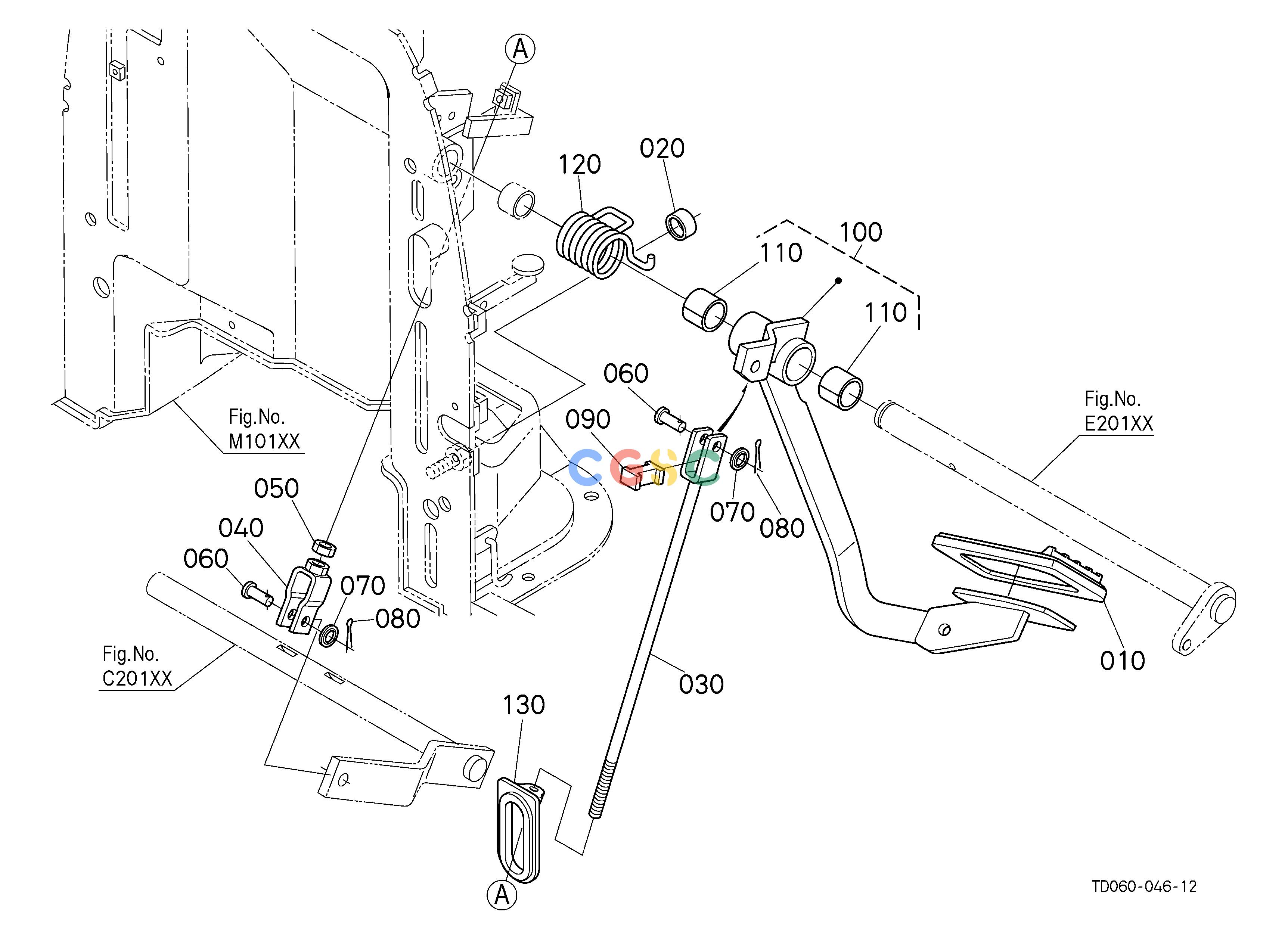

久保田零件查询C30102 CLUTCH PEDAL [GST TYPE] [CAB TYPE] CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1003 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3741044120
|
[1] |
COVER PEDAL
|
0.1760(lbs); 0.080
|
| 010. |
T205044120
|
[1] |
COVER PEDAL
|
0.1540(lbs); 0.070
|
| 020. |
T027047490
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
| 030. |
3407044460
|
[1] |
ROD CLUTCH BRAKE
|
0.4950(lbs); 0.225
|
| 040. |
3407044470
|
[1] |
U JOINT
|
0.1760(lbs); 0.080
|
| 050. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0512261028
|
[2] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 070. |
0471701000
|
[2] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 080. |
0551150318
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 090. |
T106044480
|
[1] |
CUSHION
|
0.0176(lbs); 0.008
|
| 100. |
TD06044050
|
[1] |
COMP.PEDAL CLUTCH
|
3.3660(lbs); 1.530
|
| 110. |
TD06044080
|
[2] |
BUSH
|
0.0396(lbs); 0.018
|
| 120. |
3407044160
|
[1] |
SPRING
|
0.2530(lbs); 0.115
|
| 130. |
T007075680
|
[1] |
COVER CLUTCH ROD
|
0.0550(lbs); 0.025
|
