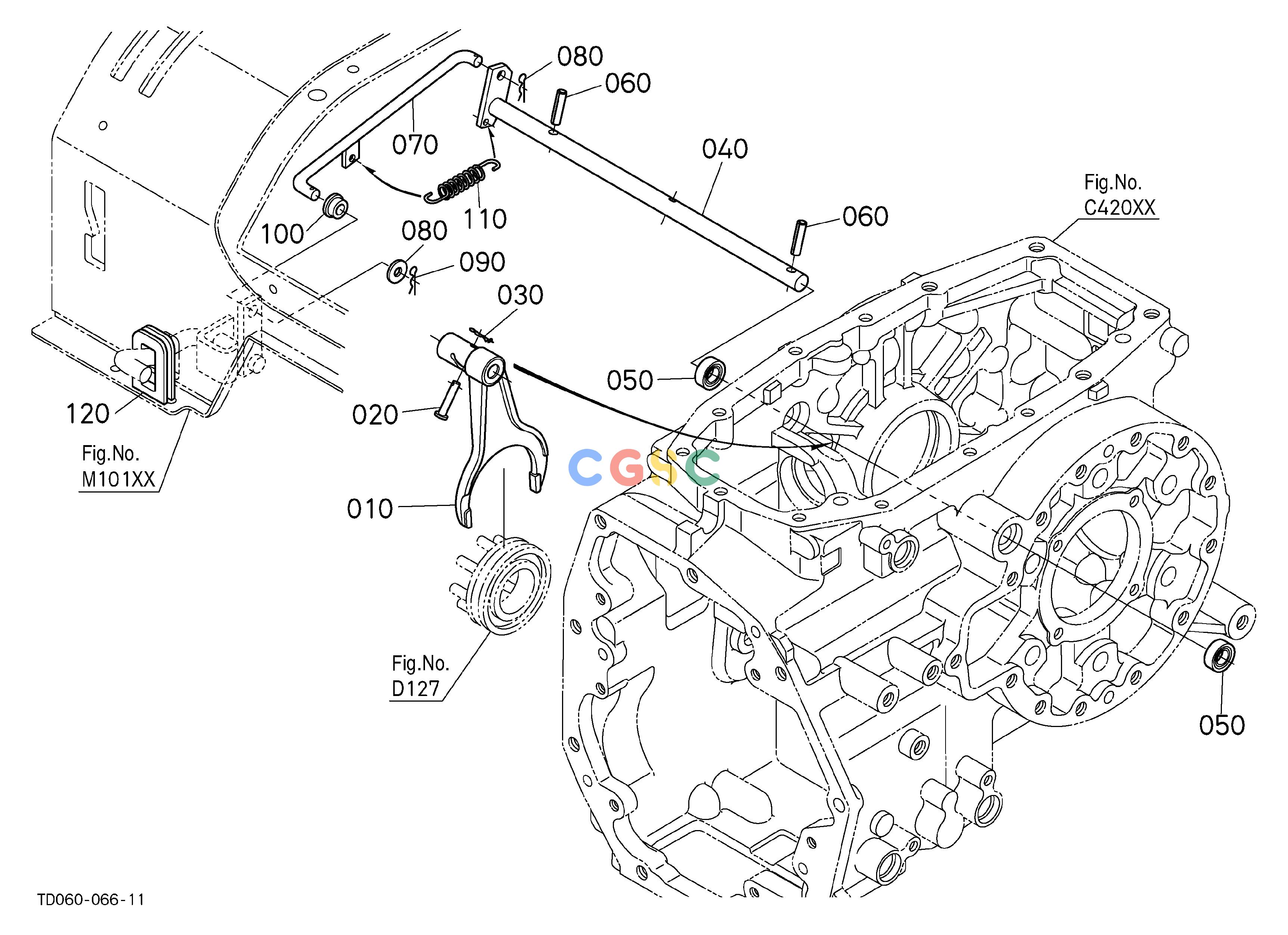

久保田零件查询D22502 DIFFERENTIAL LOCK SHIFT FORK [GST TYPE] [CAB TYPE] SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3135126632
|
[1] |
FORK DIFF.LOCK SHIFT
|
1.0230(lbs); 0.465
|
| 020. |
3135126620
|
[1] |
PIN JOINT
|
0.0176(lbs); 0.008
|
| 030. |
5008034110
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 040. |
T106028400
|
[1] |
SHAFT FORK
|
1.3596(lbs); 0.618
|
| 040. |
T106028402
|
[1] |
SHAFT FORK
|
1.3596(lbs); 0.618
|
| 050. |
0950016287
|
[2] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 060. |
0541100635
|
[2] |
PIN SPRING
|
0.0110(lbs); 0.005
|
| 070. |
T115528410
|
[1] |
ROD DIFF.LOCK
|
0.2420(lbs); 0.110
|
| 080. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0551560800
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 100. |
T007076360
|
[1] |
CUSHION
|
0.0088(lbs); 0.004
|
| 110. |
3715015840
|
[1] |
SPRING
|
0.1320(lbs); 0.060
|
| 120. |
T007075210
|
[1] |
COVER DIFF.LOCK
|
0.0242(lbs); 0.011
|
