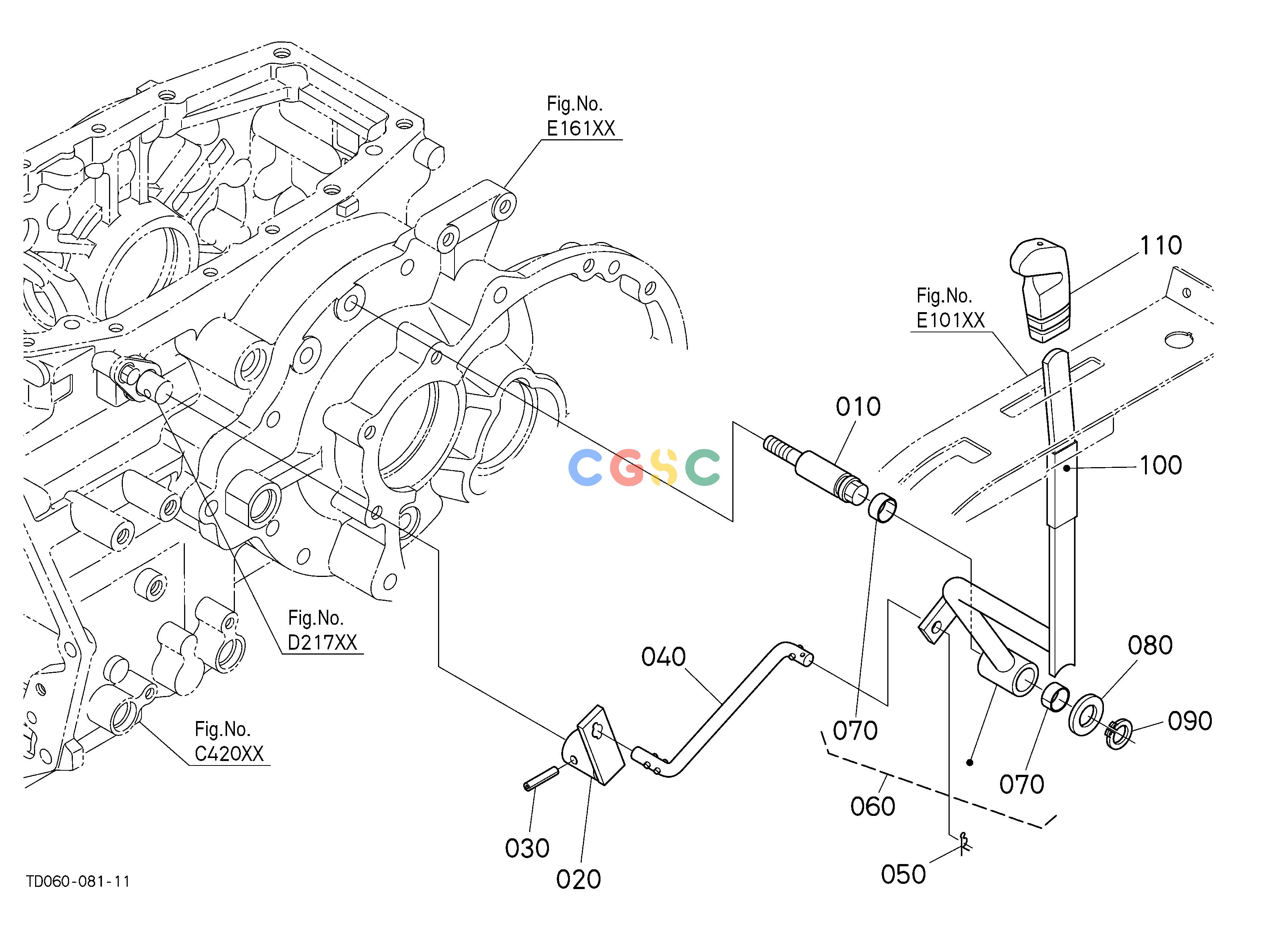

久保田零件查询E11500 CREEP GEAR SHIFT LEVER [GST TYPE] [CAB TYPE] SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
692 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T108324430
|
[1] |
BOLT
|
0.2860(lbs); 0.130
|
| 020. |
T106024560
|
[1] |
LEVER CREEP
|
0.3300(lbs); 0.150
|
| 030. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 040. |
T106024580
|
[1] |
ROD CREEP
|
0.2310(lbs); 0.105
|
| 050. |
0551561000
|
[1] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 060. |
TD06024550
|
[1] |
ASSY LEVER CREEP
|
1.8590(lbs); 0.845
|
| 070. |
T106024460
|
[2] |
BUSH
|
0.0110(lbs); 0.005
|
| 080. |
0401150180
|
[1] |
WASHER PLAIN
|
0.0264(lbs); 0.012
|
| 090. |
0461200180
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 100. |
T007024570
|
[1] |
TUBE CREEP LEVER
|
0.0110(lbs); 0.005
|
| 110. |
TD06024490
|
[1] |
GRIP LEVER
|
0.0990(lbs); 0.045
|
