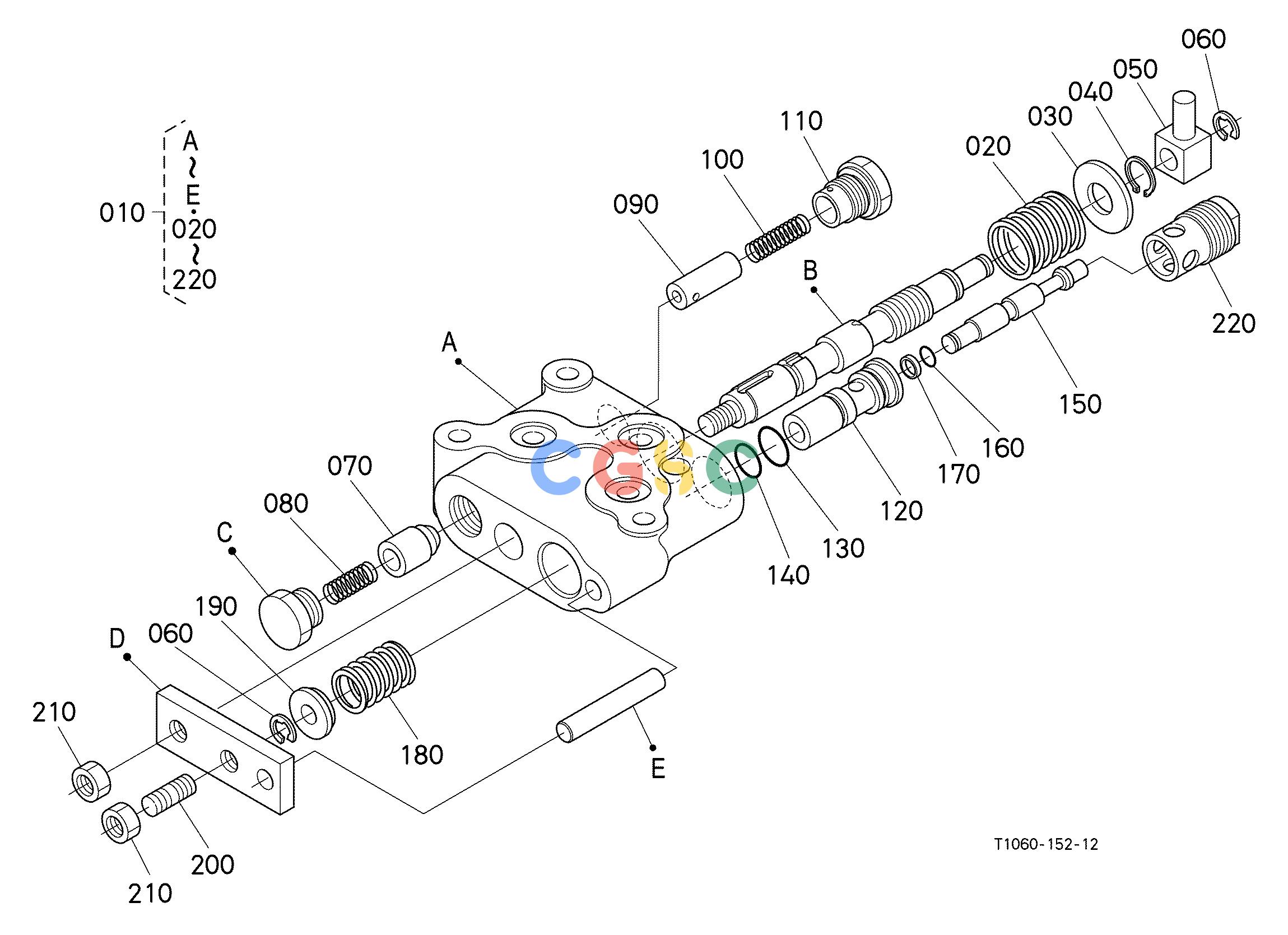

久保田零件查询H41001 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE] ## S.No.<=31315 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
448 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T106035610
|
[1] |
ASSY VALVE CONTROL
|
3.3330(lbs); 1.515
|
| 020. |
6715636790
|
[1] |
SPRING SPOOL
|
0.0220(lbs); 0.010
|
| 030. |
0401360120
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
0461200120
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 050. |
3715036420
|
[1] |
JOINT SPOOL
|
0.0440(lbs); 0.020
|
| 060. |
0461350060
|
[2] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
3135139150
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 080. |
6753138470
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 090. |
6636136750
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 100. |
6715636760
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 110. |
T043037560
|
[1] |
PLUG
|
0.0550(lbs); 0.025
|
| 120. |
T043037600
|
[1] |
SLEEVE
|
0.1100(lbs); 0.050
|
| 130. |
0481105120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 130. |
0481705120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0481105110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0481705120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
T043037610
|
[1] |
POPPET
|
0.0396(lbs); 0.018
|
| 160. |
0481100050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 170. |
3135139290
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 180. |
T043037620
|
[1] |
SPRING
|
0.0198(lbs); 0.009
|
| 190. |
T043037640
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 200. |
0365050816
|
[1] |
SCREW SET
|
0.0220(lbs); 0.010
|
| 210. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 220. |
3135137620
|
[1] |
PLUG
|
0.0990(lbs); 0.045
|
