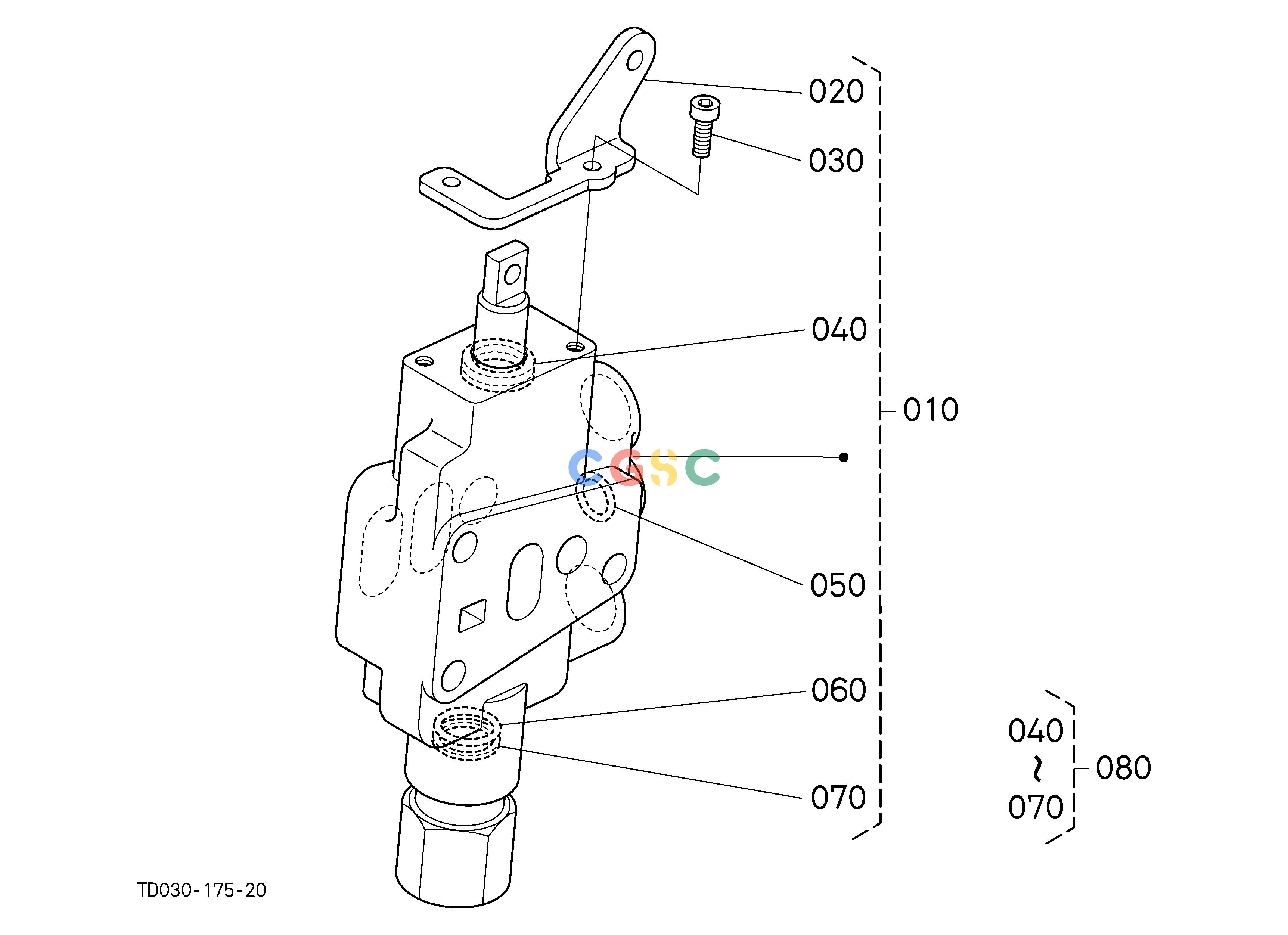

久保田零件查询H45602 AUXILIARY CONTROL VALVE (DOUBLE) [COMPONENT PARTS] [CAB] [CA] ## S.No.>=31254 S.No.;B:>=31254 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
541 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW08900100
|
[1] |
VALVE,ASSY
|
3.6960(lbs); 1.680
|
| 020. |
YW07700220
|
[1] |
BRACKET
|
0.1100(lbs); 0.050
|
| 030. |
0135010512
|
[2] |
BOLT,SOCKET HEAD
|
0.0066(lbs); 0.003
|
| 040. |
YW07700610
|
[1] |
SEAL,DUST
|
0.0022(lbs); 0.001
|
| 050. |
0481700100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
3407666250
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
YW08991110
|
[1] |
SEAL,KIT
|
0.0066(lbs); 0.003
|
