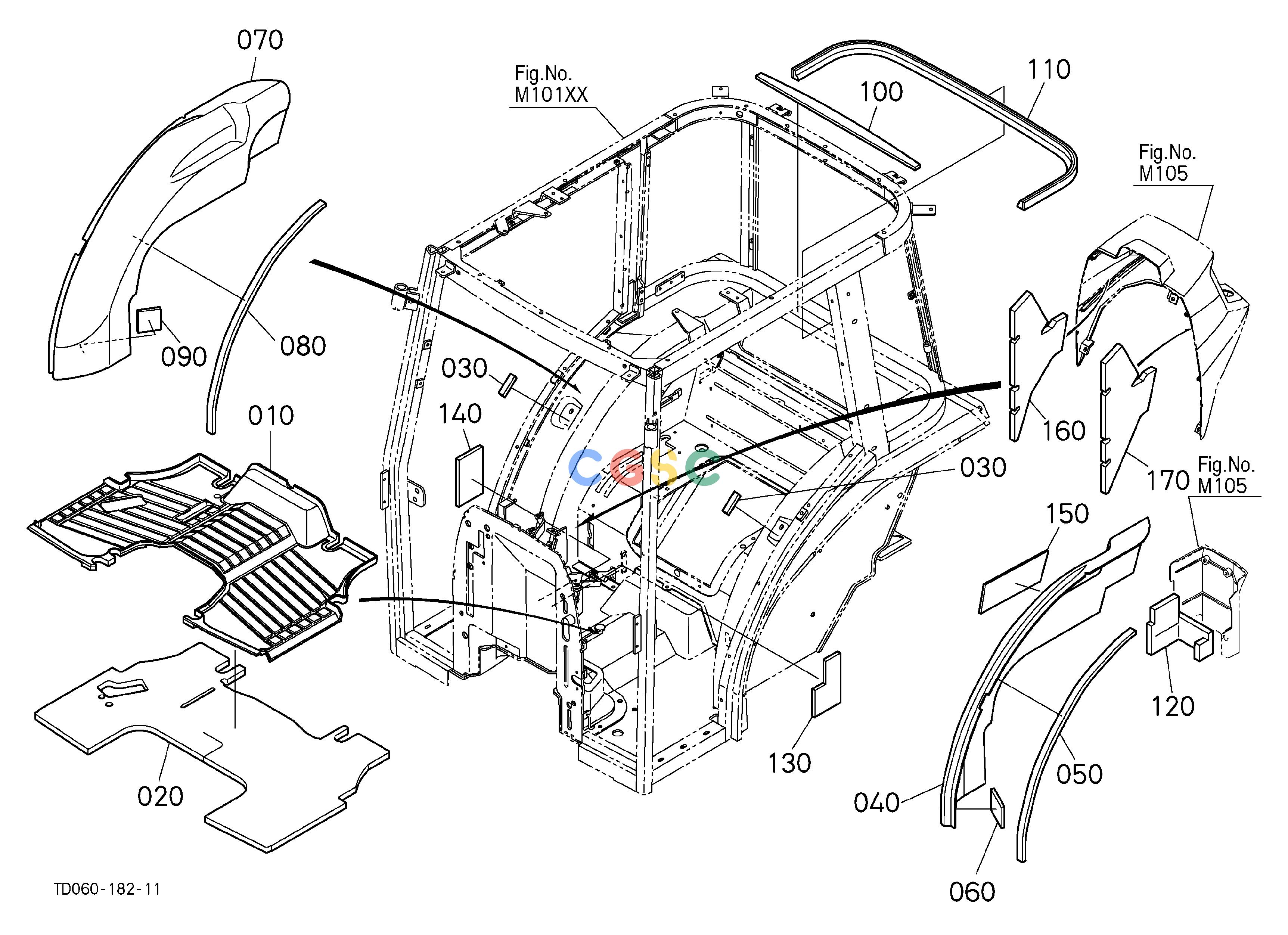

久保田零件查询M15502 MAT [CAB TYPE] CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
802 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06075760
|
[1] |
MAT STEP
|
7.0400(lbs); 3.200
|
| 020. |
TD06074810
|
[1] |
MAT ABSORBER SOUND
|
0.6380(lbs); 0.290
|
| 030. |
T106574250
|
[2] |
CUSHION
|
0.0022(lbs); 0.001
|
| 040. |
TD06074132
|
[1] |
COVER FENDER LH
|
0.3630(lbs); 0.165
|
| 040. |
TD06074133
|
[1] |
COVER FENDER LH
|
2.2000(lbs); 1.000
|
| 050. |
TD06074230
|
[1] |
ABSORBER SOUND
|
0.0330(lbs); 0.015
|
| 060. |
TD06074262
|
[1] |
ABSORBER SOUND
|
0.0440(lbs); 0.020
|
| 070. |
TD06074142
|
[1] |
COVER FENDER RH
|
0.3630(lbs); 0.165
|
| 070. |
TD06074143
|
[1] |
COVER FENDER RH
|
6.6000(lbs); 3.000
|
| 080. |
TD06074230
|
[1] |
ABSORBER SOUND
|
0.0330(lbs); 0.015
|
| 090. |
TD06074262
|
[1] |
ABSORBER SOUND
|
0.0440(lbs); 0.020
|
| 100. |
T115574150
|
[1] |
LACE
|
0.0550(lbs); 0.025
|
| 110. |
T027074170
|
[1] |
LACE
|
0.4070(lbs); 0.185
|
| 120. |
T106574280
|
[1] |
ABSORBER SOUND
|
0.0660(lbs); 0.030
|
| 130. |
T115574410
|
[1] |
ABSORBER SOUND
|
0.0220(lbs); 0.010
|
| 140. |
T115574420
|
[1] |
ABSORBER SOUND
|
0.0220(lbs); 0.010
|
| 150. |
T115574450
|
[1] |
ABSORBER SOUND
|
0.0330(lbs); 0.015
|
| 160. |
T032075540
|
[1] |
ABSORBER SOUND
|
0.1210(lbs); 0.055
|
| 170. |
T032075550
|
[1] |
ABSORBER SOUND
|
0.1100(lbs); 0.050
|
