卡特零件查询（725C） 235-7133: ALTERNATOR GP-CHARGING
广数供应链运营团队, 18 02月, 2025，浏览：
917 次

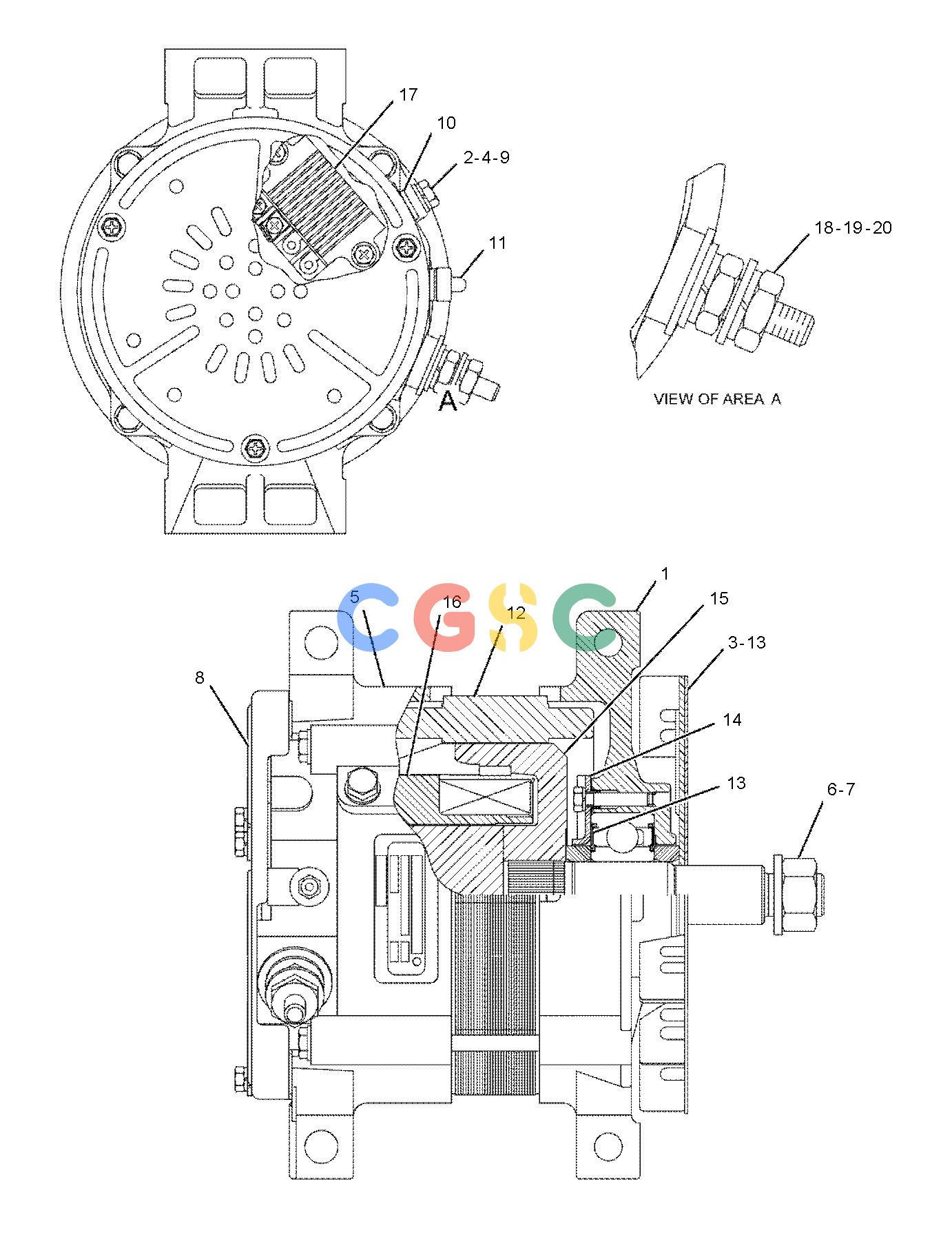

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 228-9656 | [1] | FRAME AS-DRIVE END | |
| 2. | 5S-7349 | [1] | BOLT(1/4-20X0.5-IN) | |
| 3. | 185-2639 | [1] | FAN AS | |
| 4. | 1H-3244 | [1] | LOCKWASHER | |
| 5. | 228-9655 | [1] | FRAME AS-ALTERNATOR | |
| 6. | 2K-4821 | [1] | LOCKNUT(5/8-18-THD) | |
| 7. | 5P-8247 | [1] | WASHER-HARD(17X32X3.5-MM THK) | |
| 8. | 228-9657 | [1] | COVER AS | |
| 9. | 8T-4205 | [1] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 10. | 185-2647 | [1] | GROMMET | |
| 11. | 9L-6770 | [1] | CAP-DUST | |
| 12. | 423-2775 | [1] | STATOR AS(24-VOLT, 95-AMPERE) | |
| 13. | 185-2638 | [2] | COLLAR | |
| 14. | 185-2654 | [1] | PLATE | |
| 15. | 185-2650 | [1] | ROTOR AS | |
| 16. | 185-2644 | [1] | COIL AS | |
| 17. | 185-2648 | [1] | REGULATOR AS-VOLTAGE(24-VOLT)(ALTERNATOR) | |
| 18. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 19. | 8T-4224 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 20. | 3F-9556 | [1] | LOCKWASHER | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 185-2655 | [1] | KIT-BEARING(ALTERNATOR) | |
| | | | (INCLUDES 3 BEARINGS) |
| | 185-2658 | [1] | KIT-HARDWARE(ALTERNATOR AIR) | |
| | | | (INCLUDES BOLTS) |
| | 199-7891 | [1] | KIT-TERMINAL(ALTERNATOR AIR) | |
| | | | (INCLUDES INSULATORS, WASHERS, NUT & STEP NUT) |
| | 199-8436 | [1] | KIT-TERMINAL(ALTERNATOR AIR) | |
| | | | (INCLUDES HOLDER AS, PLATE, INSULATOR, PIN, BOLT, GROMMET,& NUT) |
