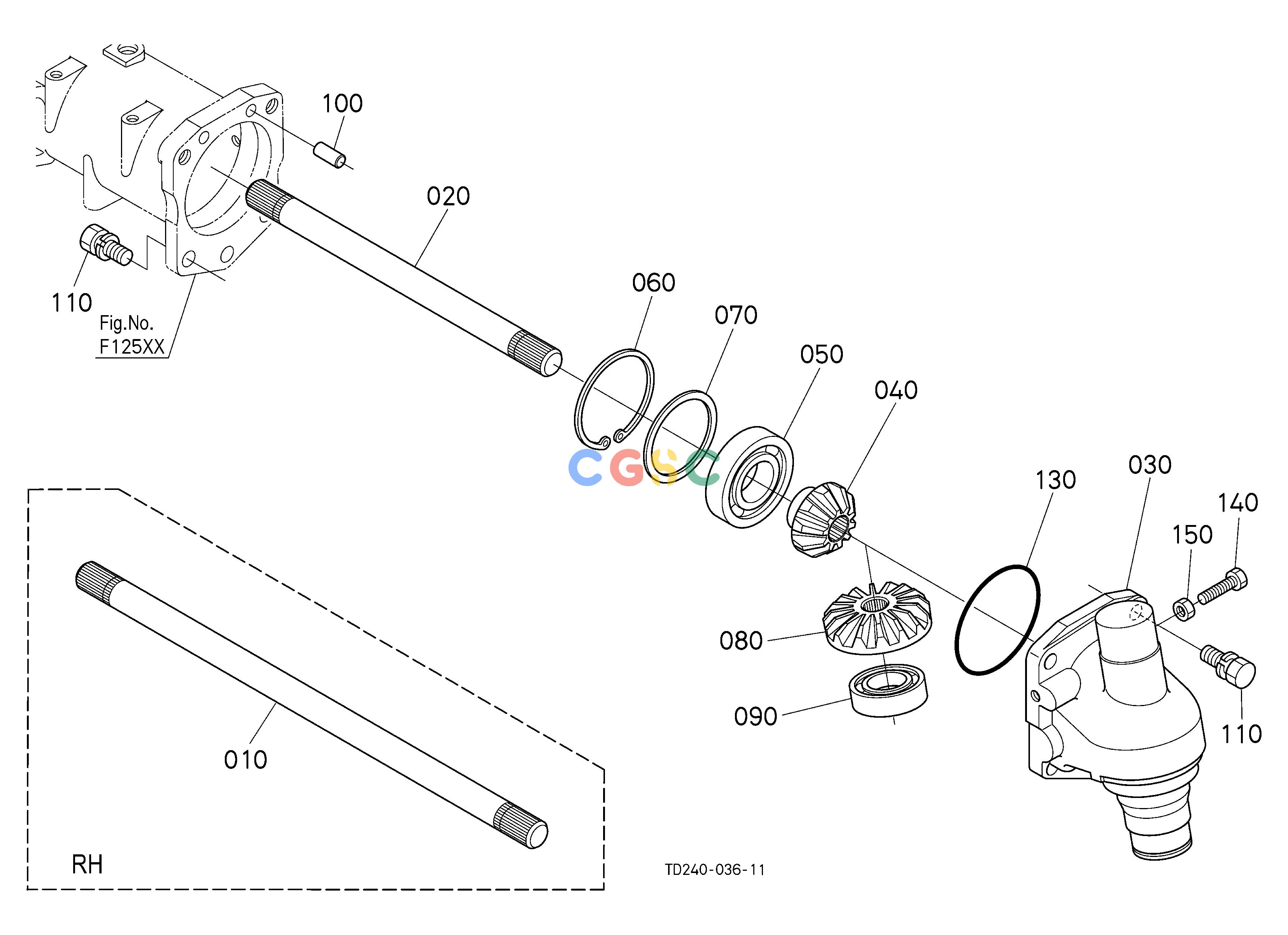

久保田零件查询F14502 BEVEL GEAR SHAFT FRONT AXLE/CHASSISEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
737 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA15012452
|
[1] |
SHAFT,YOKE RH
|
4.9060(lbs); 2.230
|
| 020. |
TA15012462
|
[1] |
SHAFT,YOKE LH
|
3.2120(lbs); 1.460
|
| 030. |
TD06012800
|
[2] |
CASE,BEVEL GEAR
|
13.6400(lbs); 6.200
|
| 040. |
TD06012524
|
[2] |
GEAR,BEVEL
|
0.9350(lbs); 0.425
|
| 050. |
0810106308
|
[2] |
BEARING,BALL
|
1.3992(lbs); 0.636
|
| 060. |
0461100900
|
[2] |
CIR-CLIP,INTERNAL
|
0.0682(lbs); 0.031
|
| 070. |
3A02144020
|
[2] |
SHIM
|
0.0132(lbs); 0.006
|
| 070. |
3A02144030
|
[2] |
SHIM
|
0.0198(lbs); 0.009
|
| 070. |
3A02144040
|
[2] |
SHIM
|
0.0242(lbs); 0.011
|
| 070. |
3A02144050
|
[2] |
SHIM
|
0.0308(lbs); 0.014
|
| 070. |
3A02144060
|
[2] |
SHIM
|
0.0352(lbs); 0.016
|
| 080. |
TD06012532
|
[2] |
GEAR,BEVEL
|
2.2770(lbs); 1.035
|
| 090. |
3552334430
|
[2] |
BEARING,BALL
|
0.6050(lbs); 0.275
|
| 100. |
3135343880
|
[4] |
PIN,STRAIGHT
|
0.0440(lbs); 0.020
|
| 110. |
0113851440
|
[10] |
BOLT,SEMS
|
0.1540(lbs); 0.070
|
| 130. |
0481111050
|
[2] |
RING
|
0.0044(lbs); 0.002
|
| 140. |
0117351030
|
[2] |
HEX.BOLT
|
0.0506(lbs); 0.023
|
| 150. |
0217650100
|
[2] |
HEX.NUT
|
0.0110(lbs); 0.005
|
