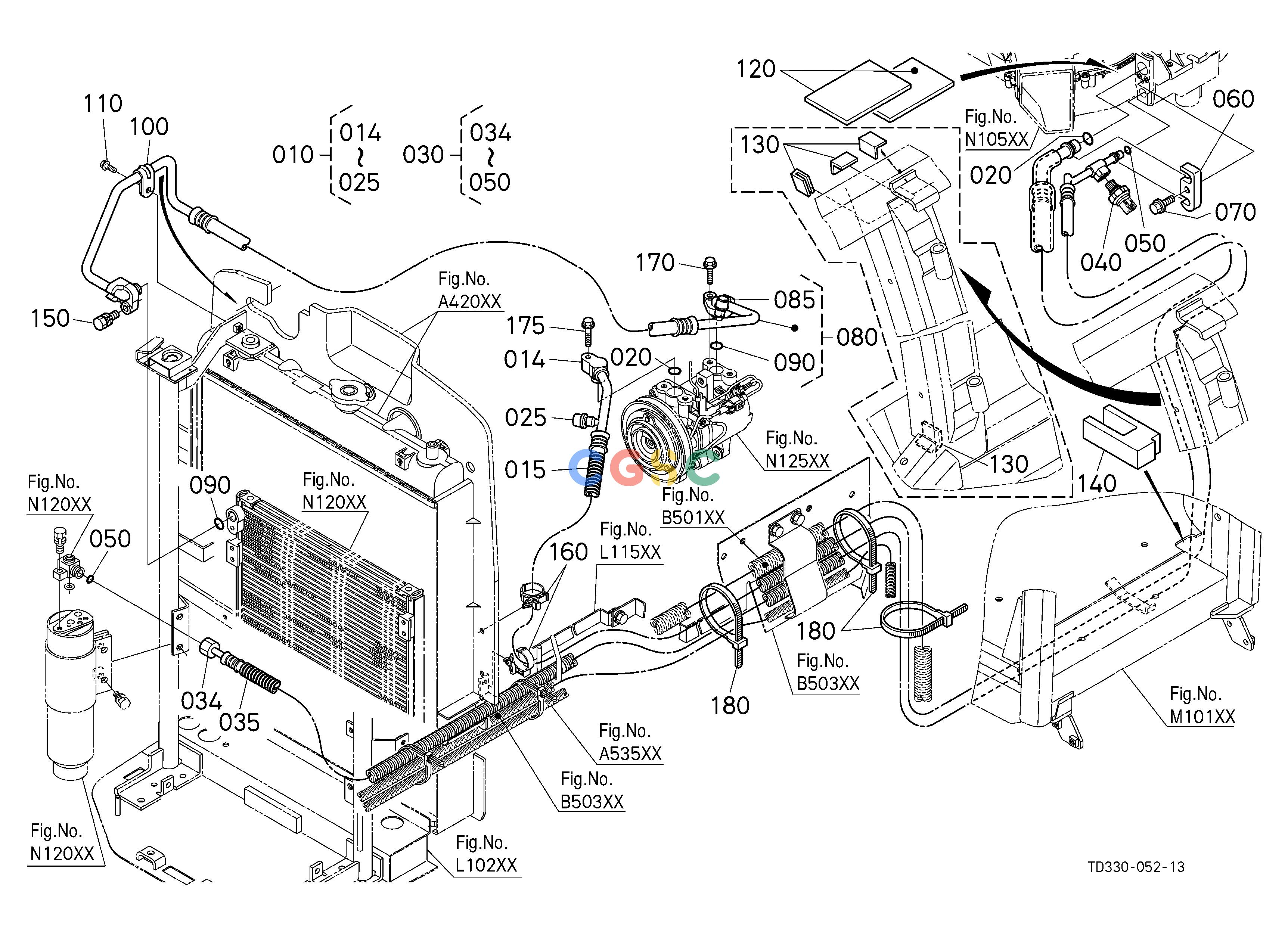

久保田零件查询N12202 AIR CONDITIONER HOSE/CONDENSER HOSE AIR CONDITIONEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
706 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD33072400
|
[1] |
HOSE,ASSY(SUCTION)
|
2.4200(lbs); 1.100
|
| 014. |
TD33072340
|
[1] |
HOSE(SUCTION)
|
2.5300(lbs); 1.150
|
| 015. |
T185572490
|
[1] |
TUBE
|
0.2420(lbs); 0.110
|
| 020. |
3376056980
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 025. |
T185572350
|
[1] |
CAP(L)
|
0.0044(lbs); 0.002
|
| 030. |
TD33072300
|
[1] |
HOSE,ASSY(LIQUID)
|
1.6280(lbs); 0.740
|
| 034. |
TD33072330
|
[1] |
HOSE(LIQUID)
|
1.5180(lbs); 0.690
|
| 035. |
T185572390
|
[1] |
TUBE
|
0.1650(lbs); 0.075
|
| 040. |
3A76196290
|
[1] |
SWITCH,ASSY. PRESSUR
|
0.0440(lbs); 0.020
|
| 050. |
3376056960
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
T127572350
|
[1] |
JOINT,HOSE AIR CONDITIONER
|
0.0704(lbs); 0.032
|
| 070. |
0175450620
|
[1] |
BOLT,FLANGE
|
0.0154(lbs); 0.007
|
| 080. |
TD33072310
|
[1] |
HOSE(DISCHARGE)
|
0.6270(lbs); 0.285
|
| 080. |
TD33072312
|
[1] |
HOSE(DISCHARGE)
|
0.6270(lbs); 0.285
|
| 085. |
T141572360
|
[1] |
CAP(H)
|
0.0066(lbs); 0.003
|
| 090. |
3376056970
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
T106572390
|
[1] |
CLAMP
|
0.0330(lbs); 0.015
|
| 110. |
0175450616
|
[1] |
BOLT,FLANGE
|
0.0132(lbs); 0.006
|
| 120. |
T127574372
|
[2] |
INSULATION(ADIABATIC)
|
0.0044(lbs); 0.002
|
| 130. |
T185530710
|
[4] |
CUSHION
|
0.0022(lbs); 0.001
|
| 140. |
TD35074870
|
[1] |
COVER(HEATER HOSE)
|
0.0330(lbs); 0.015
|
| 150. |
0102350625
|
[1] |
BOLT,SEMS
|
0.0154(lbs); 0.007
|
| 160. |
T368572590
|
[2] |
CLAMP,HOSE
|
0.0154(lbs); 0.007
|
| 170. |
0175450640
|
[2] |
BOLT,FLANGE
|
0.0198(lbs); 0.009
|
| 170. |
0175450625
|
[1] |
BOLT,FLANGE
|
0.0176(lbs); 0.008
|
| 175. |
0175450630
|
[1] |
BOLT,FLANGE
|
0.0220(lbs); 0.010
|
| 180. |
5358164150
|
[3] |
BAND,CORD
|
0.0044(lbs); 0.002
|
