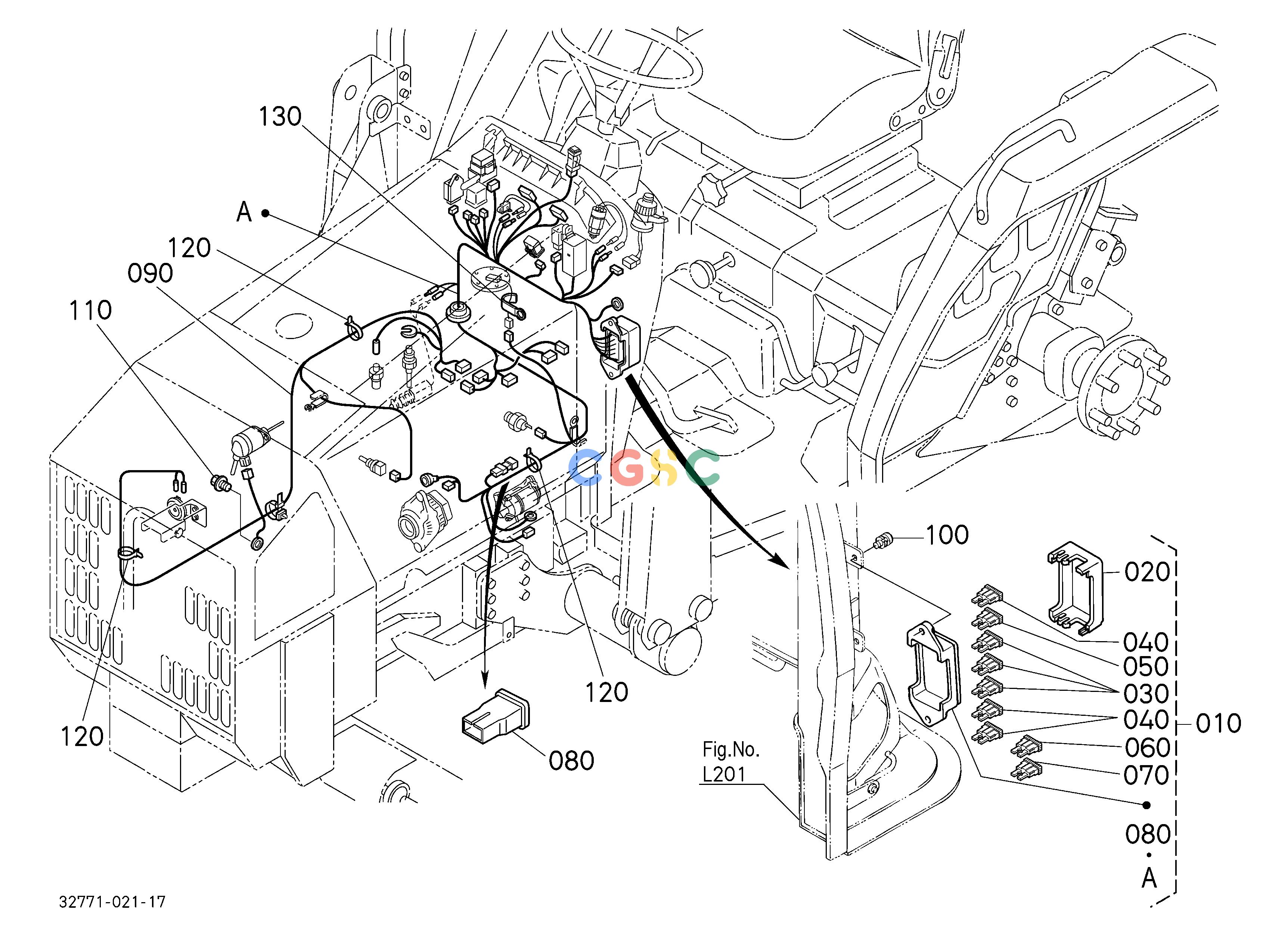

久保田零件查询B50302 ELECTRICAL WIRING (FRONT) [NEW TYPE] ## S.No.>=52527 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3277130510
|
[1] |
WIRE HARNESS
|
2.6400(lbs); 1.200
|
| 020. |
3277130610
|
[1] |
COVER FUSE BOX
|
0.0440(lbs); 0.020
|
| 030. |
3673075550
|
[3] |
FUSE
|
0.0066(lbs); 0.003
|
| 040. |
3582075560
|
[3] |
FUSE
|
0.0044(lbs); 0.002
|
| 050. |
3741055520
|
[1] |
FUSE
|
0.0044(lbs); 0.002
|
| 060. |
3673075550
|
[1] |
FUSE
|
0.0066(lbs); 0.003
|
| 070. |
3582075560
|
[1] |
FUSE
|
0.0044(lbs); 0.002
|
| 080. |
3508034530
|
[1] |
FUSE
|
0.0110(lbs); 0.005
|
| 090. |
3277130520
|
[1] |
WIRE HARNESS
|
0.5720(lbs); 0.260
|
| 100. |
0302450520
|
[2] |
SCREW WITH WASHER
|
0.0088(lbs); 0.004
|
| 110. |
0175450608
|
[1] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 120. |
5358164150
|
[3] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 130. |
1524167580
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
