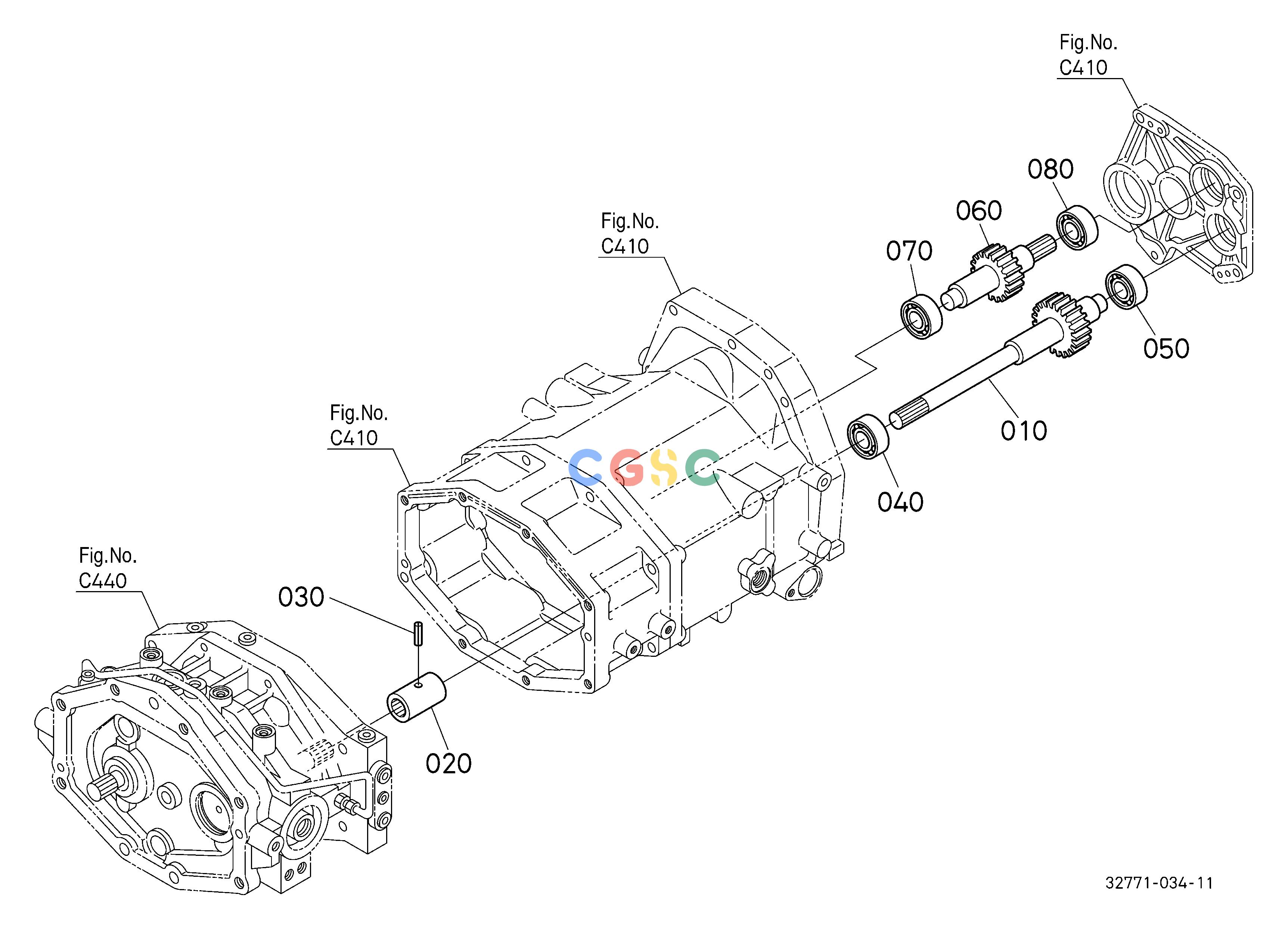

久保田零件查询D10700 OUTPUT SHAFT CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
928 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3277152400
|
[1] |
GEAR-SHAFT HST
|
4.2900(lbs); 1.950
|
| 020. |
3371041310
|
[1] |
COUPLING
|
0.3960(lbs); 0.180
|
| 030. |
0541100635
|
[1] |
PIN SPRING
|
0.0110(lbs); 0.005
|
| 040. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 050. |
3741057190
|
[1] |
BEARING BALL
|
0.3080(lbs); 0.140
|
| 060. |
3277152500
|
[1] |
GEAR-SHAFT HST
|
2.7940(lbs); 1.270
|
| 070. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 080. |
3741057190
|
[1] |
BEARING BALL
|
0.3080(lbs); 0.140
|
