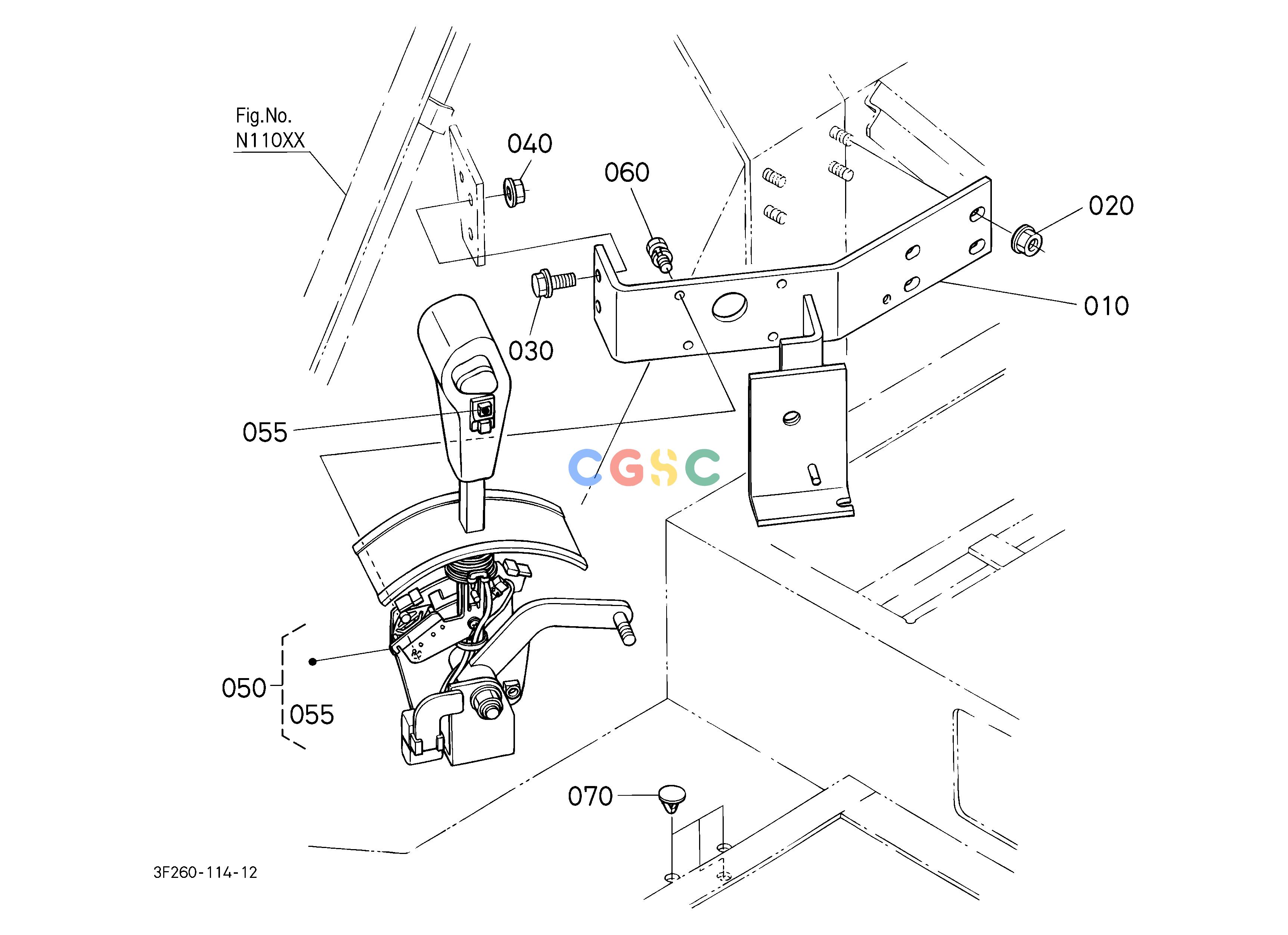

久保田零件查询F11000 MAIN GEAR SHIFT LEVER SPEED CHANGE SHIFT FORK /SHIFT LEVEREPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F27029690
|
[1] |
BRACKET,SHIFT LEVER
|
3.8280(lbs); 1.740
|
| 020. |
0276360080
|
[4] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 030. |
0175450820
|
[2] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 040. |
0276360080
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
3F27029620
|
[1] |
LEVER
|
3.1240(lbs); 1.420
|
| 055. |
3F99997630
|
[1] |
SWITCH
|
0.0550(lbs); 0.025
|
| 060. |
0102350616
|
[4] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 070. |
9054511340
|
[3] |
PLUG
|
0.0044(lbs); 0.002
|
