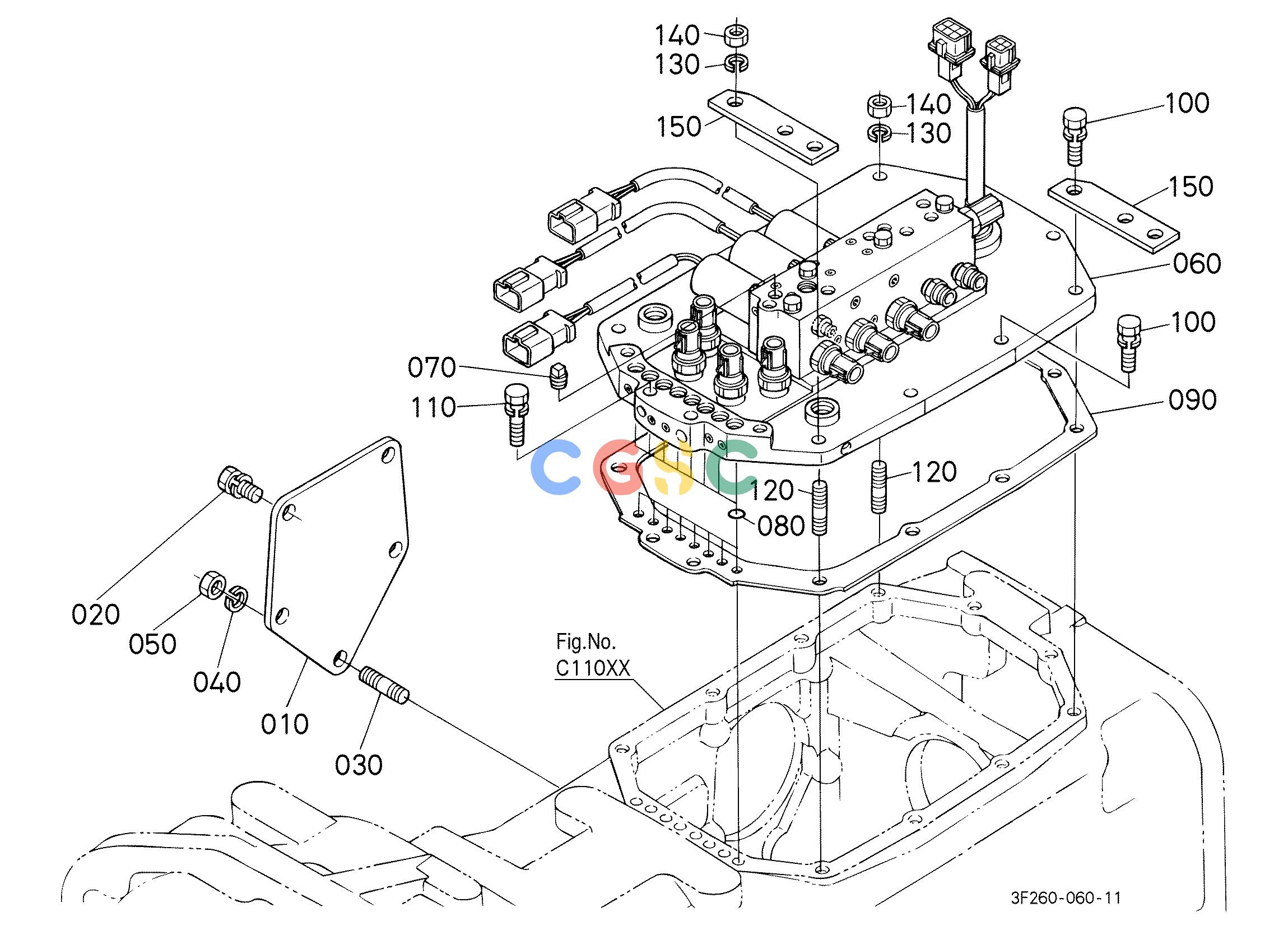

久保田零件查询C11700 POWER SHIFT VALVE CLUTCH/TRANSMISSIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F75021070
|
[1] |
COVER GEAR SHIFT
|
1.3200(lbs); 0.600
|
| 020. |
0113351020
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 030. |
0151761025
|
[1] |
STUD
|
0.0440(lbs); 0.020
|
| 040. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 050. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
3F25023103
|
[1] |
ASSY VALVE POWER
|
34.9800(lbs); 15.900
|
| 060. |
3F25023106
|
[1] |
ASSY VALVE POWER
|
37.4000(lbs); 17.000
|
| 060. |
3F25023107
|
[1] |
ASSY VALVE POWER
|
35.2000(lbs); 16.000
|
| 060. |
3F25023108
|
[1] |
ASSY VALVE POWER
|
35.2000(lbs); 16.000
|
| 060. |
3F25023109
|
[1] |
ASSY VALVE POWER
|
35.2000(lbs); 16.000
|
| 060. |
3F25023110
|
[1] |
ASSY VALVE POWER
|
0.0000(lbs); 0.000
|
| 070. |
3374027430
|
[14] |
PLUG
|
0.0154(lbs); 0.007
|
| 080. |
0481500090
|
[8] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0481700090
|
[8] |
O RING
|
0.0022(lbs); 0.001
|
| 090. |
3F74021260
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 100. |
0112850830
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
| 100. |
0112850835
|
[8] |
BOLT
|
0.1980(lbs); 0.090
|
| 110. |
0112850840
|
[2] |
BOLT
|
0.1980(lbs); 0.090
|
| 120. |
0151360830
|
[2] |
STUD
|
0.0286(lbs); 0.013
|
| 120. |
0151350835
|
[2] |
STUD
|
0.0330(lbs); 0.015
|
| 130. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 140. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 150. |
3F74077990
|
[2] |
PLATE HARNES CLAMP
|
0.0770(lbs); 0.035
|
