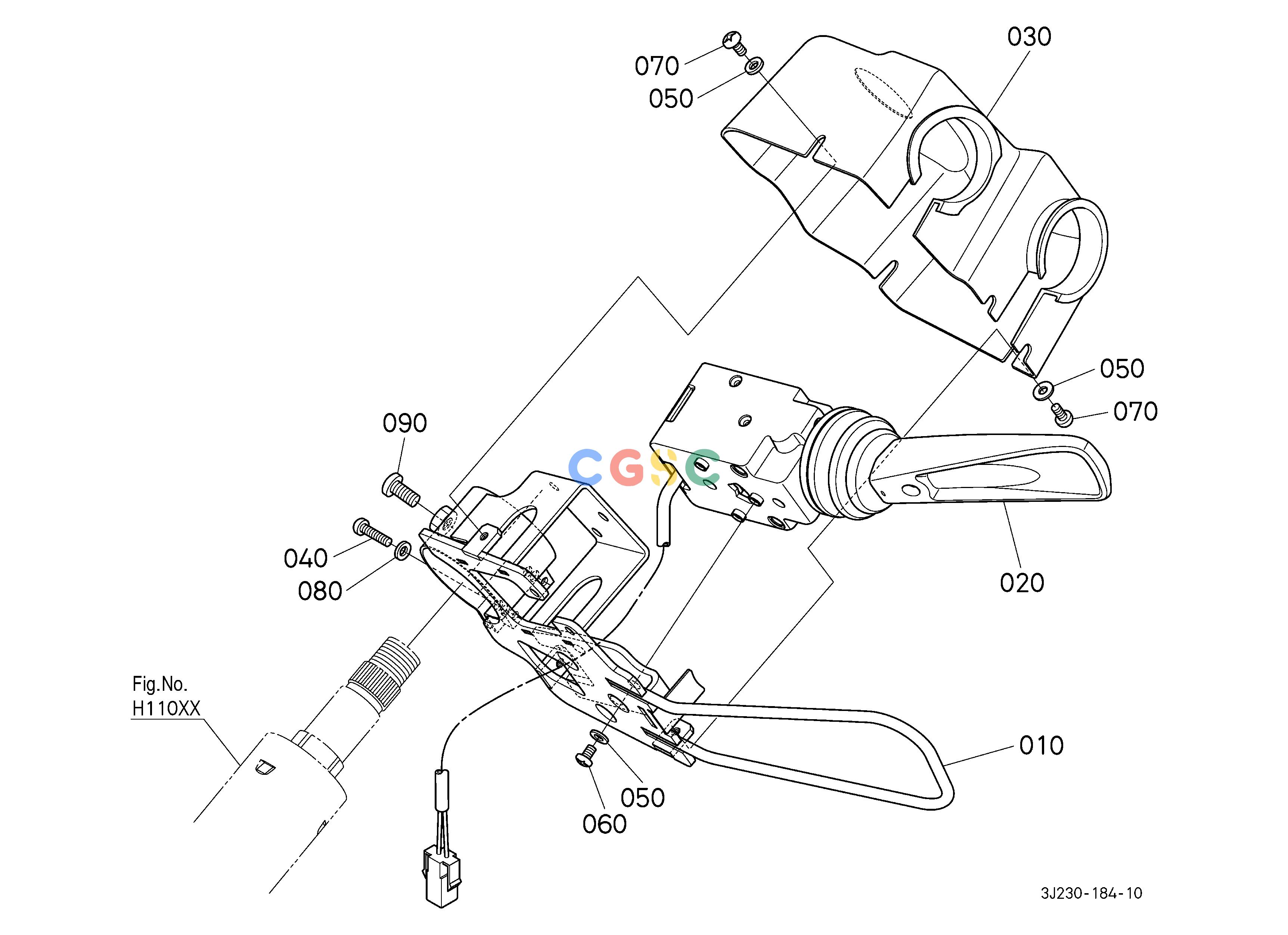

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J03014033
|
[1] |
BRACKET
|
1.1198(lbs); 0.509
|
| 020. |
3J02797122
|
[1] |
LEVER(SHUTTLE)
|
0.7194(lbs); 0.327
|
| 030. |
3J03014110
|
[1] |
COVER(LEVER,SHUTTLE)
|
0.1650(lbs); 0.075
|
| 040. |
0305450416
|
[2] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0044(lbs); 0.002
|
| 050. |
3J09934596
|
[6] |
WASHER,PLAIN(I7091,M4,HV100,A3
|
0.0022(lbs); 0.001
|
| 060. |
0305450406
|
[3] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0022(lbs); 0.001
|
| 070. |
0305450408
|
[3] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0022(lbs); 0.001
|
| 080. |
3J09934596
|
[2] |
WASHER,PLAIN(I7091,M4,HV100,A3
|
0.0022(lbs); 0.001
|
| 090. |
0301450612
|
[1] |
SCREW,PAN HEAD(PHILLIPS)
|
0.0066(lbs); 0.003
|
