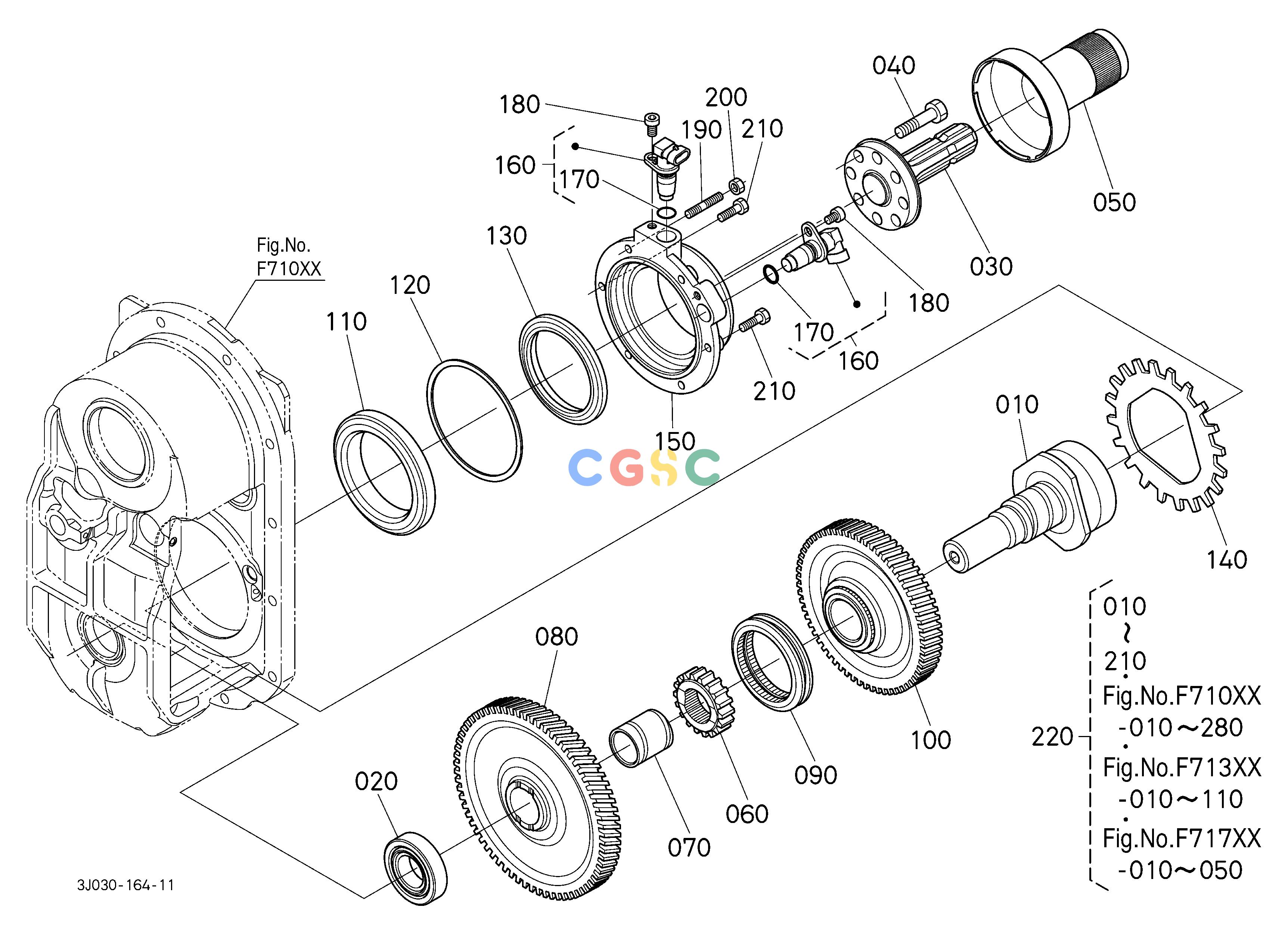

久保田零件查询F71502 PTO SHAFT HOUSING INNER (PTO SHAFT) [TRANSAXLE COMPONENT] REAR AXLE/BRAKEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3J08030060
|
[1] |
SHAFT(FLANGE)
|
7.7660(lbs); 3.530
|
| 020. |
3J08028510
|
[1] |
BEARING(TR,35X72X18.25)
|
0.7106(lbs); 0.323
|
| 030. |
3J08031860
|
[1] |
SHAFT(ASSY,PTO,TMT16)
|
0.0000(lbs); 0.000
|
| 040. |
3J08024390
|
[8] |
SCREW,HEX SOC CAP(M12X50)
|
0.0000(lbs); 0.000
|
| 050. |
3J08031670
|
[1] |
CAP(PROTECTION)
|
0.2640(lbs); 0.120
|
| 060. |
3J08031560
|
[1] |
GEAR(SLEEVE)
|
0.7546(lbs); 0.343
|
| 070. |
3J08031570
|
[1] |
BUSHING(3)
|
0.3168(lbs); 0.144
|
| 080. |
3J08030070
|
[1] |
GEAR(1)
|
10.1860(lbs); 4.630
|
| 090. |
3J08031760
|
[1] |
SLEEVE(GEAR SHIFT)
|
0.9812(lbs); 0.446
|
| 100. |
3J08030080
|
[1] |
GEAR(2)
|
8.6240(lbs); 3.920
|
| 110. |
3J08028370
|
[1] |
BEARING(TR,95X135X20)
|
1.7820(lbs); 0.810
|
| 120. |
3J08031500
|
[1] |
PLATE(ADJUSTMENT,4)
|
0.0022(lbs); 0.001
|
| 120. |
3J08031510
|
[1] |
PLATE(ADJUSTMENT,5)
|
0.0044(lbs); 0.002
|
| 120. |
3J08031520
|
[1] |
PLATE(ADJUSTMENT,6)
|
0.0132(lbs); 0.006
|
| 130. |
3J08022770
|
[1] |
SEAL(SHAFT,1)
|
0.1474(lbs); 0.067
|
| 140. |
3J08030090
|
[1] |
GEAR(IMPULSE)
|
0.3190(lbs); 0.145
|
| 150. |
3J08030190
|
[1] |
COVER(4)
|
0.0000(lbs); 0.000
|
| 160. |
3J08022390
|
[2] |
SENSOR(SPEED,2)
|
0.0858(lbs); 0.039
|
| 170. |
3J08023760
|
[2] |
O-RING(15.54X2.62)
|
0.0022(lbs); 0.001
|
| 180. |
3J08024260
|
[2] |
SCREW,HEX SOC CAP(M8X12)
|
0.0220(lbs); 0.010
|
| 190. |
3J08024280
|
[4] |
STUD(M8X35)
|
0.0308(lbs); 0.014
|
| 200. |
3J08024520
|
[4] |
NUT(M8)
|
0.0088(lbs); 0.004
|
| 210. |
3J08024110
|
[2] |
BOLT(M8X25)
|
0.0286(lbs); 0.013
|
| 220. |
3J08029680
|
[1] |
OPTION(REPAIR,PTO.1)
|
0.0000(lbs); 0.000
|
