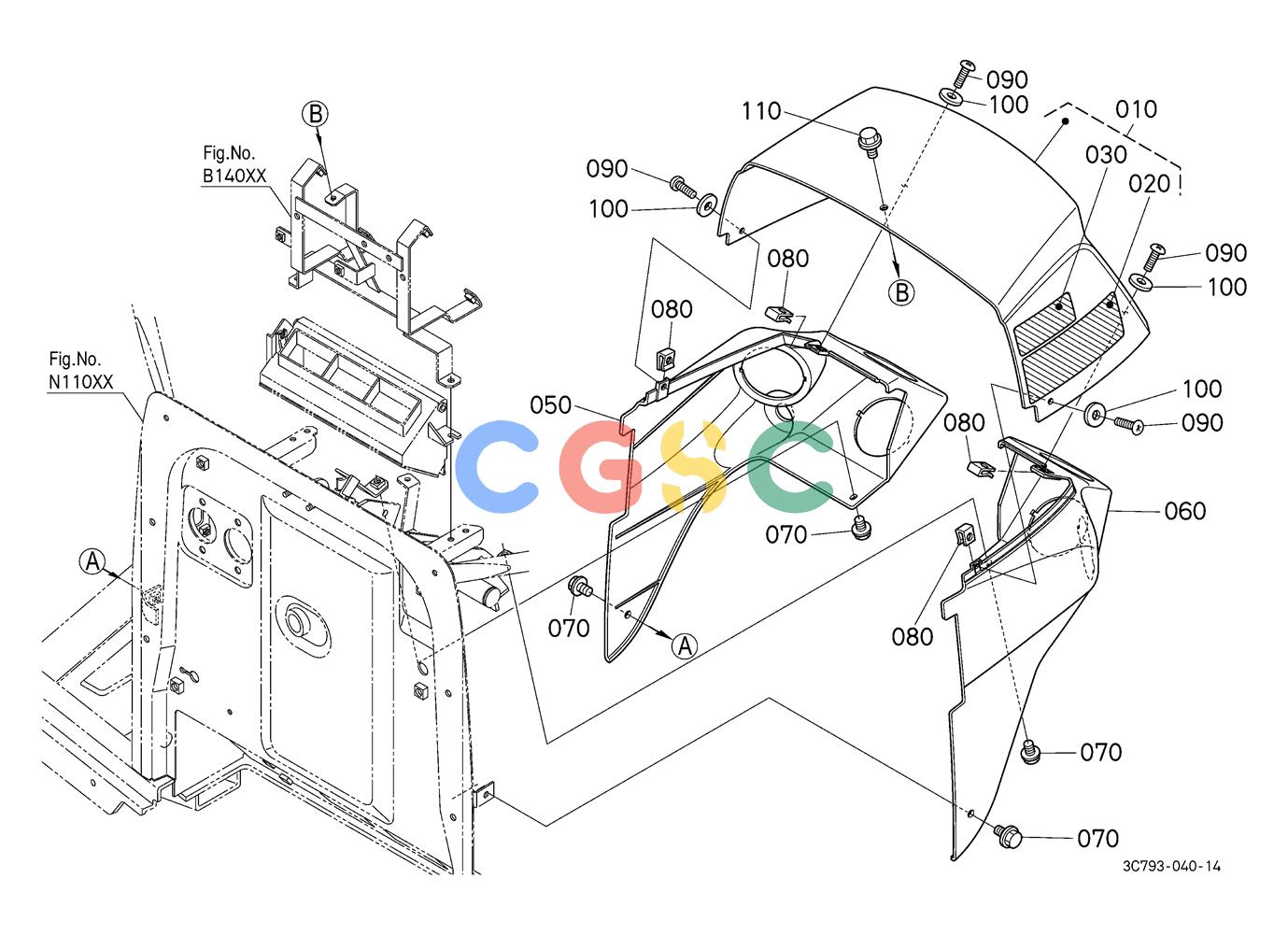

久保田零件查询N11700 HOOD (BONNET) REAR CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
989 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3C791-99620
|
[1] |
KIT BONNET,UPPER
|
|
| 020. |
3C581-98580
|
[1] |
LABEL,START CAUTION
|
|
| 030. |
3F240-98570
|
[1] |
LABEL,SHUTTLE CAUTI.
|
|
| 050. |
3C581-83560
|
[1] |
BONNET(RH REAR)
|
|
| 060. |
3C581-83570
|
[1] |
BONNET(LH REAR)
|
|
| 070. |
30400-18870
|
[4] |
BOLT,FLANGE
|
|
| 080. |
3C581-54510
|
[4] |
NUT,SPRING
|
|
| 090. |
3C581-83520
|
[4] |
SCREW,WITH WASHER
|
|
| 100. |
04013-70040
|
[4] |
WASHER,PLAIN
|
|
| 110. |
32781-30190
|
[1] |
BOLT,FLANGE(M5X12,BLACK)
|
|
