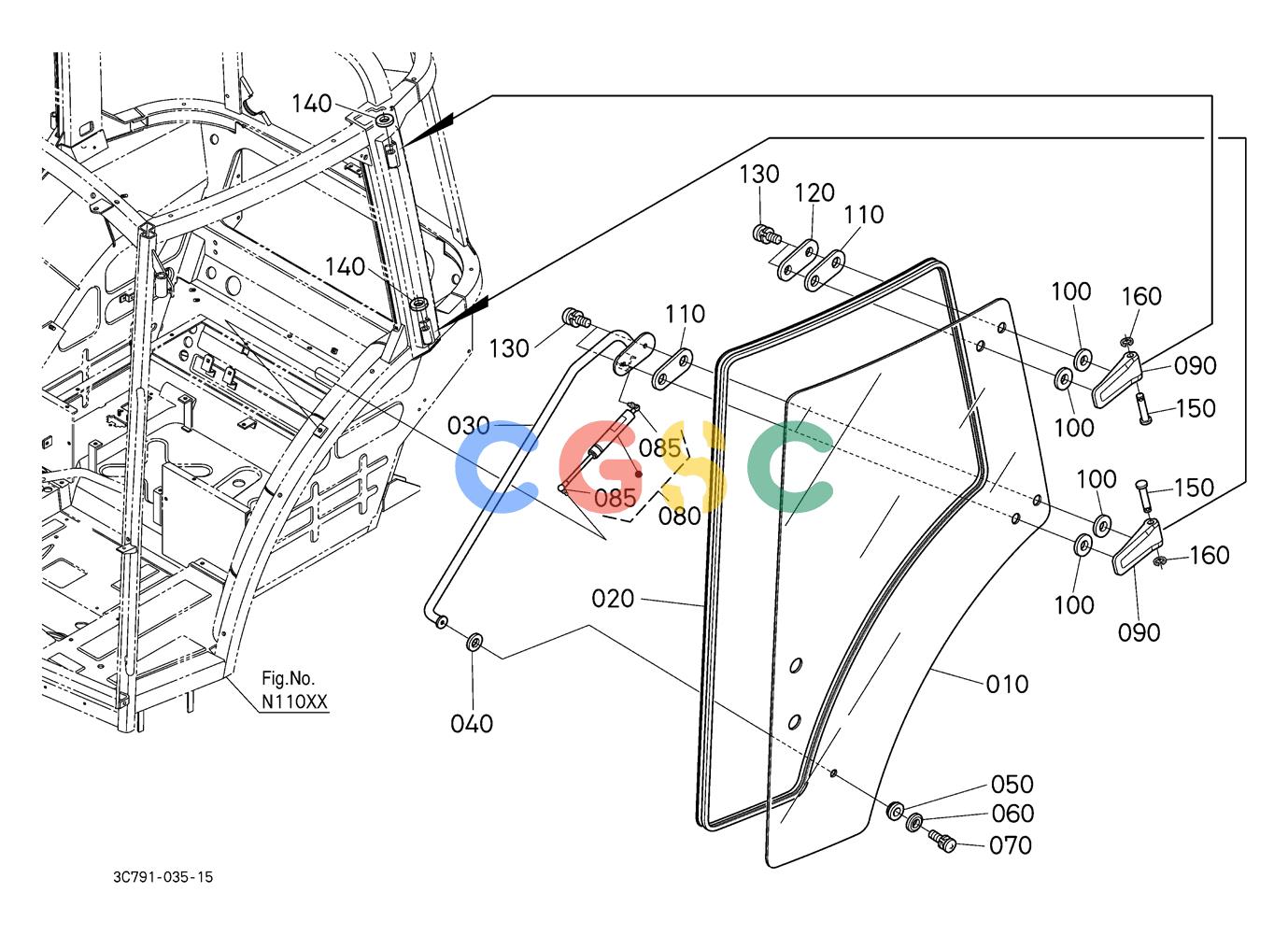

久保田零件查询N13000 DOOR LH CABEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
424 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3C581-70774
|
[1] |
GLASS(DOOR LH)
|
|
| 020. |
3C581-70684
|
[1] |
SHIELD,WEATHER STRIP
|
<=93624
|
| 020. |
3C581-70686
|
[1] |
SHIELD,WEATHER STRIP
|
>=93625
|
| 030. |
3C581-70744
|
[1] |
HANDLE(LH DOOR)
|
|
| 040. |
T0270-61750
|
[1] |
GASKET,DOOR HANDLE
|
|
| 050. |
36919-53702
|
[1] |
GASKET
|
|
| 060. |
34070-71050
|
[1] |
WASHER
|
|
| 070. |
36919-53670
|
[1] |
SCREW,WITH WASHER
|
|
| 080. |
3C581-52870
|
[1] |
DAMPER
|
|
| 085. |
3T400-52880
|
[2] |
JOINT,BALL
|
|
| 090. |
3G710-70820
|
[2] |
HINGE,DOOR
|
<=88372
|
| 090. |
3G710-70822
|
[2] |
HINGE,DOOR
|
>=88373
|
| 090. |
3C581-70822
|
[2] |
HINGE,DOOR
|
>=91546
|
| 100. |
3C581-70800
|
[2] |
GASKET,1 DOOR HINGE
|
<=91545
|
| 100. |
T0270-70800
|
[4] |
GASKET,1 DOOR HINGE
|
>=91546
|
| 105. |
3C581-70810
|
[2] |
GASKET,DOOR HINGE
|
<=91545
|
| 110. |
T0270-70910
|
[2] |
GASKET,2 DOOR HINGE
|
|
| 120. |
T0270-70930
|
[1] |
PLATE,DOOR HINGE
|
|
| 130. |
36919-56560
|
[4] |
SCREW,WITH WASHER
|
|
| 140. |
3F760-53460
|
[2] |
BUSH
|
|
| 150. |
3F760-53410
|
[2] |
PIN,DOOR HINGE
|
<=91299
|
| 150. |
3F760-53412
|
[2] |
PIN,DOOR HINGE
|
>=91300
|
| 160. |
04613-50080
|
[2] |
CIR-CLIP,EXTERNAL
|
|
