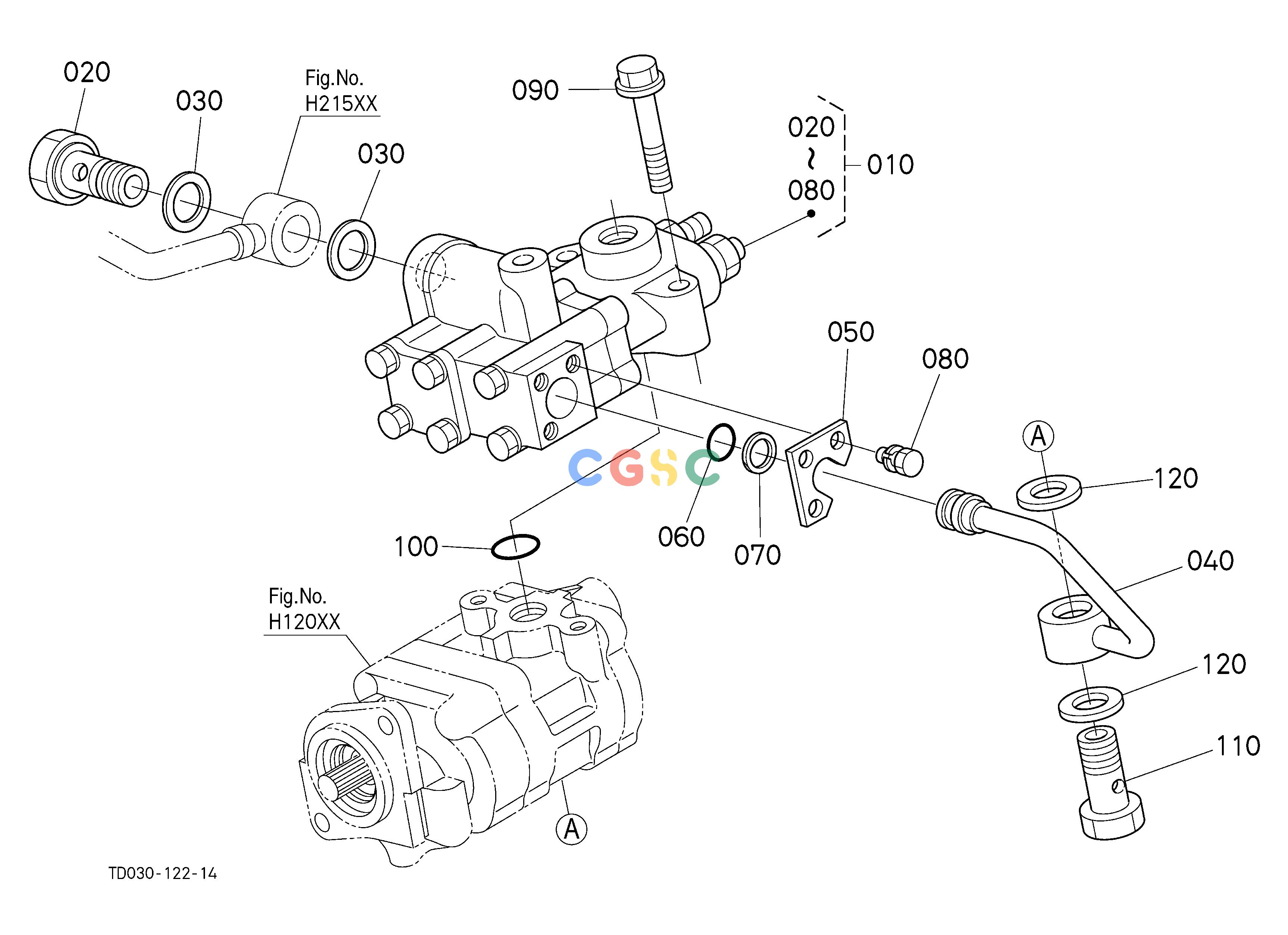

久保田零件查询H14502 REGULATER VALVE [NEW] ## S.No.;A:>=30419 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW38000100
|
[1] |
ASSY VALVE,REGULATO.
|
3.6300(lbs); 1.650
|
| 020. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 030. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
| 040. |
T106019210
|
[1] |
PIPE,DELIVERY
|
0.2530(lbs); 0.115
|
| 050. |
3407666230
|
[1] |
PLATE
|
0.0330(lbs); 0.015
|
| 060. |
0481600140
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
3407666250
|
[1] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 080. |
0102350610
|
[3] |
BOLT
|
0.0110(lbs); 0.005
|
| 090. |
0175450840
|
[2] |
BOLT,FLANGE
|
0.0440(lbs); 0.020
|
| 100. |
0481700200
|
[1] |
O RING
|
0.0242(lbs); 0.011
|
| 110. |
6659136250
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
| 120. |
6711137180
|
[2] |
GASKET
|
0.0066(lbs); 0.003
|
