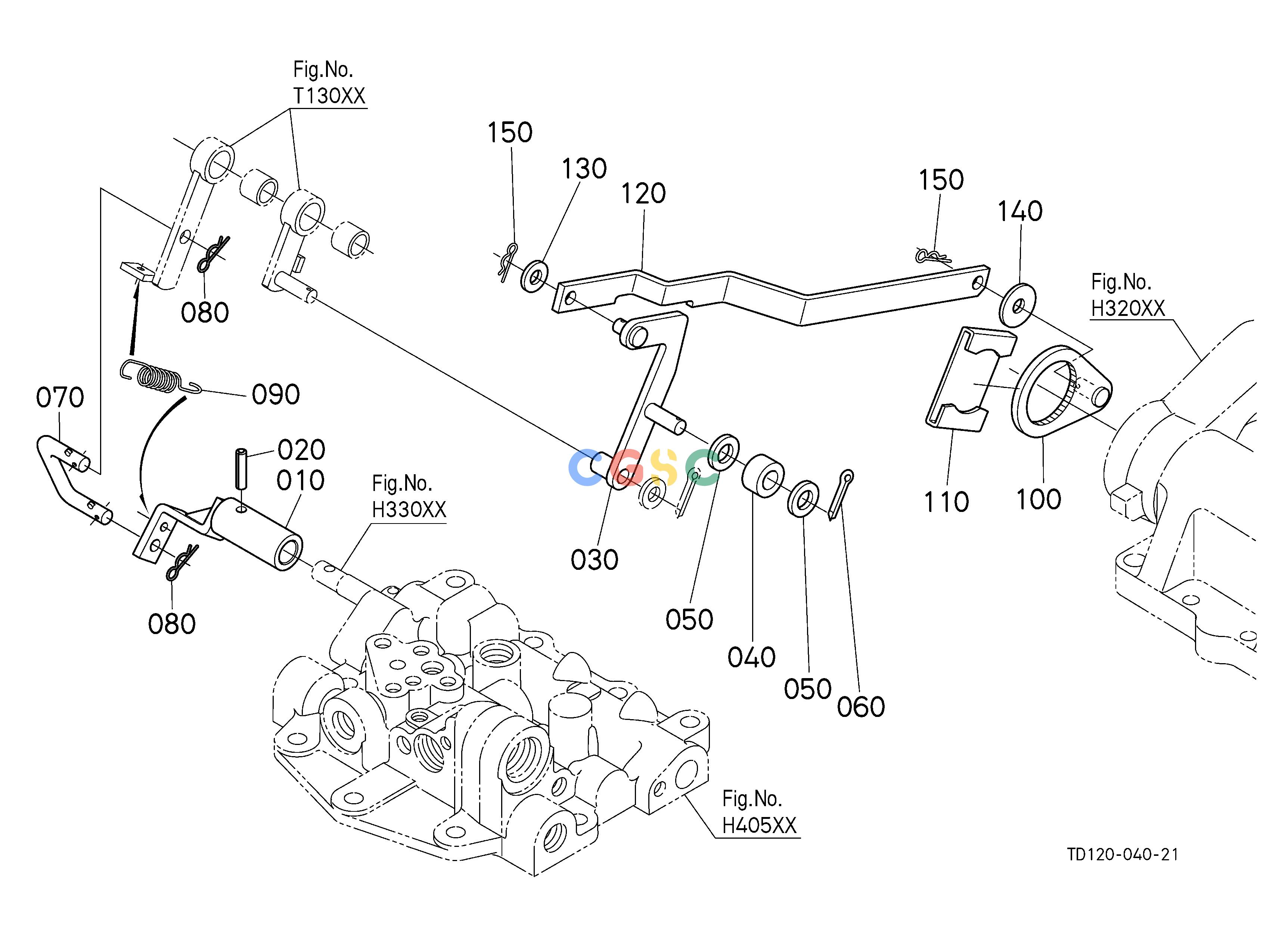

久保田零件查询T13300 POSITION CONTROL LINK (WITH DRAFT) (W/G No.L8318) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
923 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17038310
|
[1] |
LINK,CONTROL
|
0.3080(lbs); 0.140
|
| 020. |
0541100525
|
[1] |
PIN,SPRING
|
0.0044(lbs); 0.002
|
| 030. |
TD06038172
|
[1] |
LINK,DRAFT
|
0.2310(lbs); 0.105
|
| 040. |
TA04038190
|
[1] |
COLLAR
|
0.0396(lbs); 0.018
|
| 050. |
0401150100
|
[2] |
WASHER,PLAIN
|
0.0044(lbs); 0.002
|
| 060. |
0551150320
|
[1] |
PIN,SPLIT
|
0.0044(lbs); 0.002
|
| 070. |
TD17038320
|
[1] |
ROD,CONTROL
|
0.0924(lbs); 0.042
|
| 080. |
0552550800
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 090. |
TD06038370
|
[1] |
SPRING,DRAFT
|
0.0176(lbs); 0.008
|
| 100. |
TD17038260
|
[1] |
HOLDER
|
0.1430(lbs); 0.065
|
| 110. |
TD06038270
|
[1] |
STOPPER
|
0.0440(lbs); 0.020
|
| 120. |
TD17038280
|
[1] |
LINK,DRAFT
|
0.3630(lbs); 0.165
|
| 130. |
0401250080
|
[1] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
0401560080
|
[1] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 150. |
0552550800
|
[2] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
