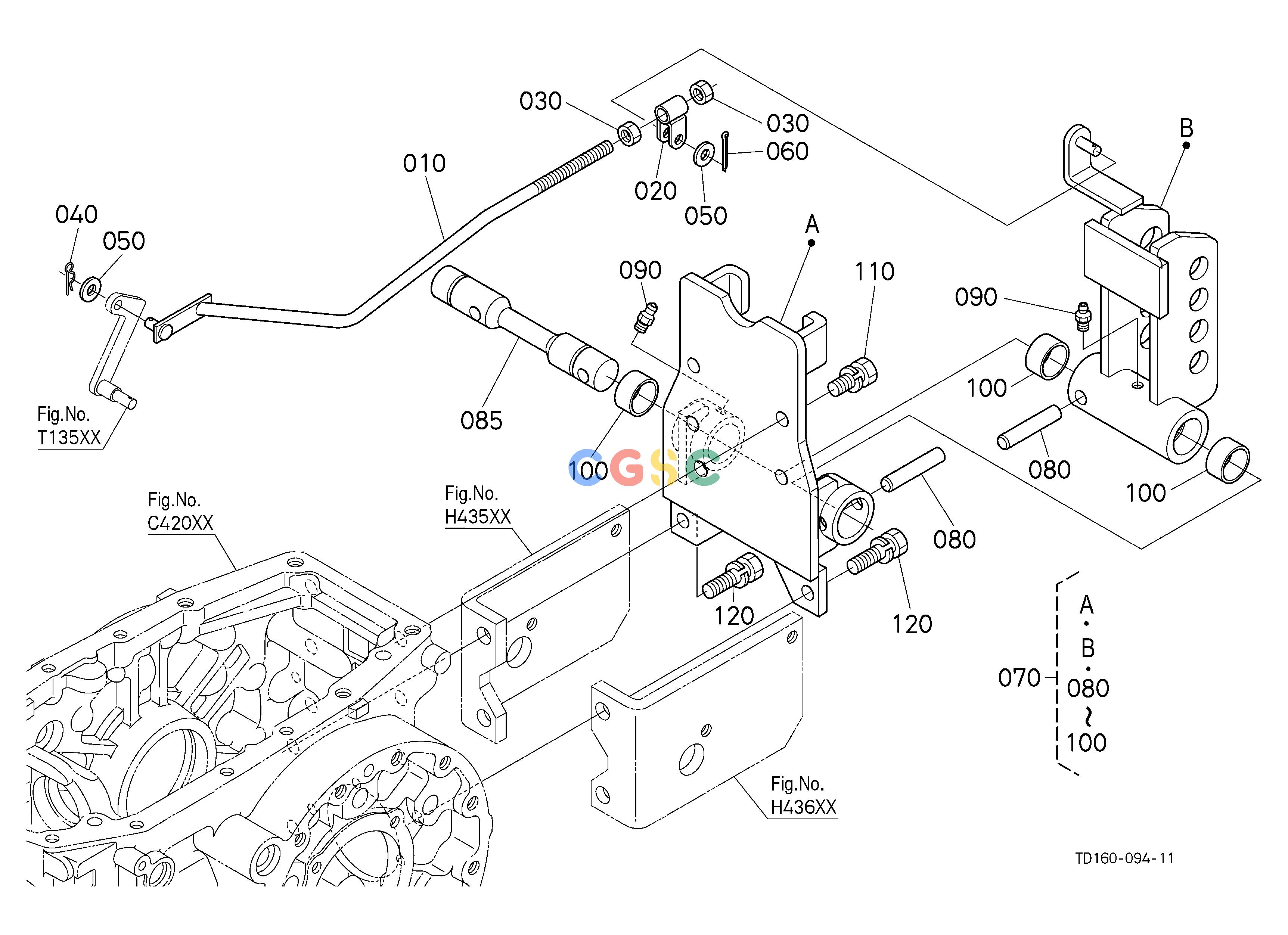

久保田零件查询T14000 TOP LINK HOLDER (WITH DRAFT) (W/G No.L8318) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD06038362
|
[1] |
ROD,DRAFT
|
0.5324(lbs); 0.242
|
| 020. |
TA04038350
|
[1] |
HOLDER
|
0.0726(lbs); 0.033
|
| 030. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 040. |
0552550800
|
[1] |
PIN,SNAP
|
0.0022(lbs); 0.001
|
| 050. |
0401250080
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 060. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 070. |
TD06041400
|
[1] |
COMP.HOLDER
|
15.4000(lbs); 7.000
|
| 080. |
3730041440
|
[2] |
PIN,STRAIGHT
|
0.1210(lbs); 0.055
|
| 085. |
3843041430
|
[1] |
BAR,TORSION
|
1.6720(lbs); 0.760
|
| 090. |
0661310010
|
[2] |
NIPPLE,GREASE
|
0.0132(lbs); 0.006
|
| 090. |
0661115010
|
[2] |
NIPPLE,GREASE
|
0.0220(lbs); 0.010
|
| 100. |
3730041450
|
[3] |
BUSH
|
0.0572(lbs); 0.026
|
| 110. |
0113351230
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 120. |
0113351240
|
[2] |
BOLT
|
0.0990(lbs); 0.045
|
