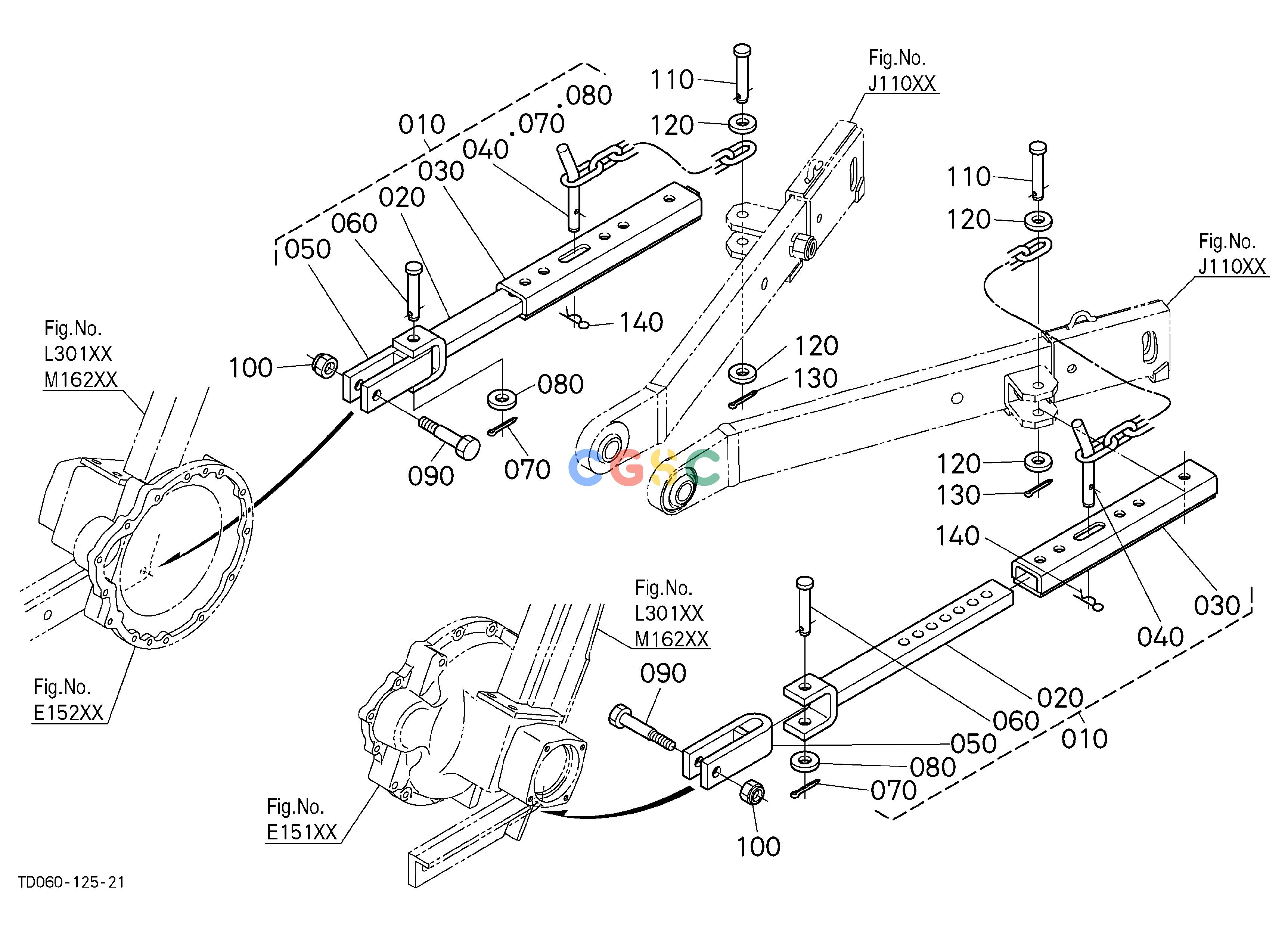

久保田零件查询J11302 STABILIZER 3-POINT LINKAGE/DRAWBAR/HITCHEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TA14039604
|
[2] |
ASSY STABILIZER
|
6.2700(lbs); 2.850
|
| 010. |
TA14039606
|
[2] |
ASSY STABILIZER
|
6.2700(lbs); 2.850
|
| 020. |
TA14039610
|
[2] |
COMP.STAB.FRONT
|
2.5740(lbs); 1.170
|
| 030. |
TA14039620
|
[2] |
COMP.STAB.REAR
|
1.9690(lbs); 0.895
|
| 040. |
TA14039630
|
[2] |
COMP.JOINT
|
0.5060(lbs); 0.230
|
| 040. |
TA14039632
|
[2] |
COMP.JOINT
|
0.5060(lbs); 0.230
|
| 050. |
TA14039643
|
[2] |
COMP.JOINT
|
1.0560(lbs); 0.480
|
| 060. |
TA14039820
|
[2] |
PIN STABILIZER REAR
|
0.1408(lbs); 0.064
|
| 070. |
0551150428
|
[2] |
PIN SPLIT
|
0.0088(lbs); 0.004
|
| 080. |
0401150120
|
[2] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 090. |
TA14039850
|
[2] |
BOLT STABILIZER
|
0.1320(lbs); 0.060
|
| 100. |
0257250120
|
[2] |
NUT LOCK
|
0.0308(lbs); 0.014
|
| 110. |
TA14039820
|
[2] |
PIN STABILIZER REAR
|
0.1408(lbs); 0.064
|
| 120. |
0401150120
|
[4] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 130. |
0551150425
|
[2] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
| 140. |
TC05051200
|
[2] |
PIN SNAP
|
0.0110(lbs); 0.005
|
