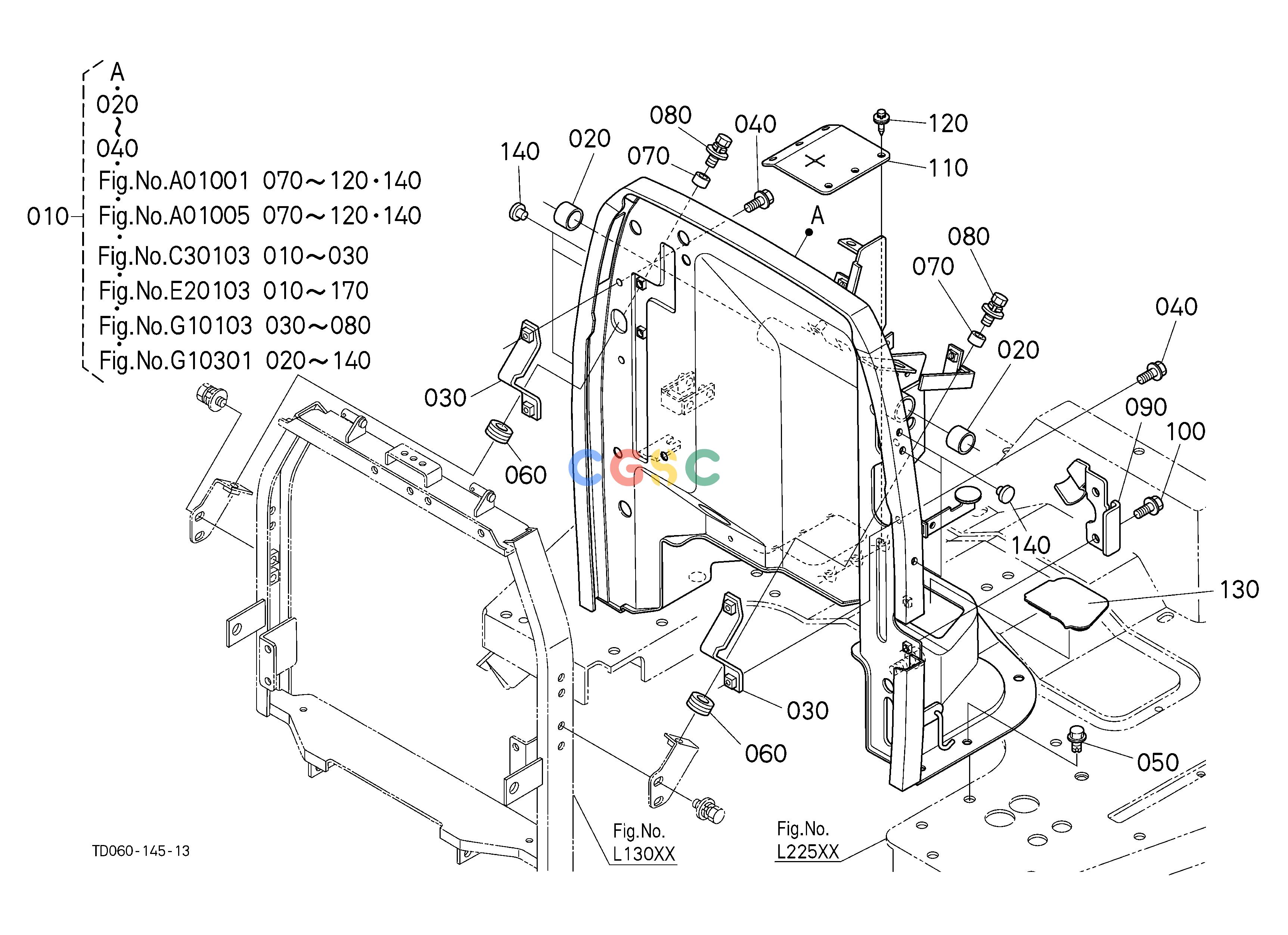

![久保田零件查询L20104 PANEL FRAME [NEW TYPE] [HST TYPE] [ROPS TYPE] ## S.No.>=36407 HOOD/BONNETEPC Kubota online](https://www.ampleresiliencesoft.com/uploadfile/ueditor/image/202506/17499328538e89cc.png "久保田零件查询L20104 PANEL FRAME [NEW TYPE] [HST TYPE] [ROPS TYPE] ## S.No.>=36407 HOOD/BONNETEPC Kubota online")
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | TD06057806 | [1] | ASSY FRAME PANEL | 57.6400(lbs); 26.200 |
| 020. | TD06044080 | [2] | BUSH | 0.0396(lbs); 0.018 |
| 030. | TD06043230 | [2] | STAY.PANEL FRAME | 0.2420(lbs); 0.110 |
| 040. | 0175450816 | [4] | BOLT FLANGE | 0.0242(lbs); 0.011 |
| 050. | T106047370 | [8] | BOLT | 0.0242(lbs); 0.011 |
| 060. | T115042042 | [2] | CUSHION | 0.0154(lbs); 0.007 |
| 070. | T115042290 | [2] | COLLAR | 0.0066(lbs); 0.003 |
| 080. | 0112750830 | [2] | BOLT | 0.0506(lbs); 0.023 |
| 090. | TD06015903 | [1] | SUPPORT HARNESS | 0.2420(lbs); 0.110 |
| 100. | 0175450816 | [2] | BOLT FLANGE | 0.0242(lbs); 0.011 |
| 110. | TD06043040 | [1] | COVER PANEL FRAME | 0.1100(lbs); 0.050 |
| 120. | T027087602 | [6] | RIVET PUSH | 0.0044(lbs); 0.002 |
| 130. | TD06057553 | [1] | GROMMET | 0.1100(lbs); 0.050 |
| 140. | 3824029570 | [6] | PLUG | 0.0022(lbs); 0.001 |
