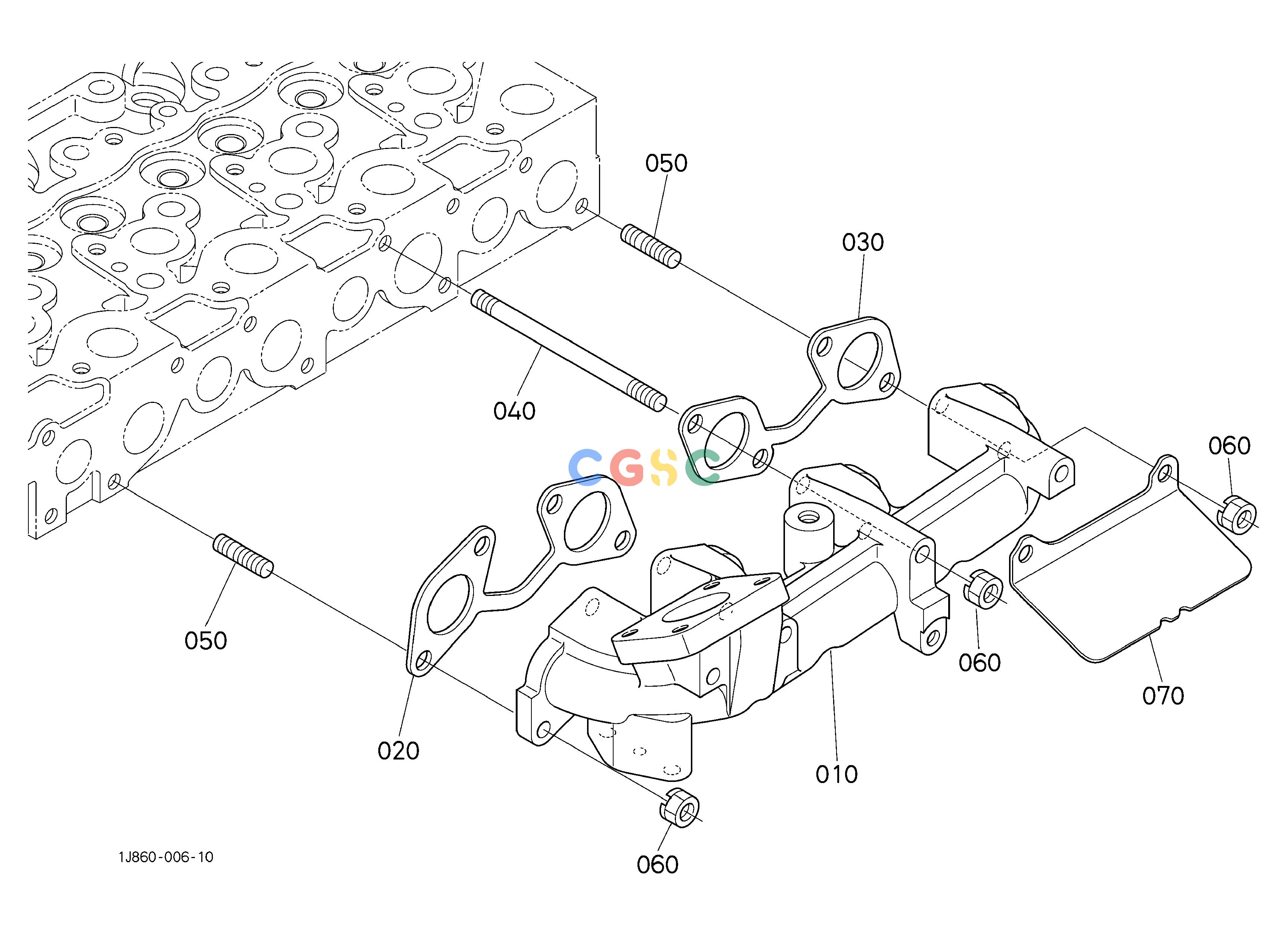

久保田零件查询060203 EXHAUST MANIFOLD [V2403-M-TE3-HST1(3)/HST2(4)] ## S.No.;>=8A0001 ENGINEEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
347 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1J86012310
|
[1] |
MANIFOLD,EXHAUST
|
7.4800(lbs); 3.400
|
| 020. |
1A09112350
|
[1] |
GASKET,EX-MANIFOLD
|
0.0440(lbs); 0.020
|
| 030. |
1A09112360
|
[1] |
GASKET,EX-MANIFOLD
|
0.0440(lbs); 0.020
|
| 040. |
1566291534
|
[4] |
STUD
|
0.0990(lbs); 0.045
|
| 050. |
1522191530
|
[4] |
STUD
|
0.0220(lbs); 0.010
|
| 060. |
1642992010
|
[8] |
NUT
|
0.0154(lbs); 0.007
|
| 070. |
1J86012650
|
[1] |
COVER,HEAT PROOF
|
0.1562(lbs); 0.071
|
