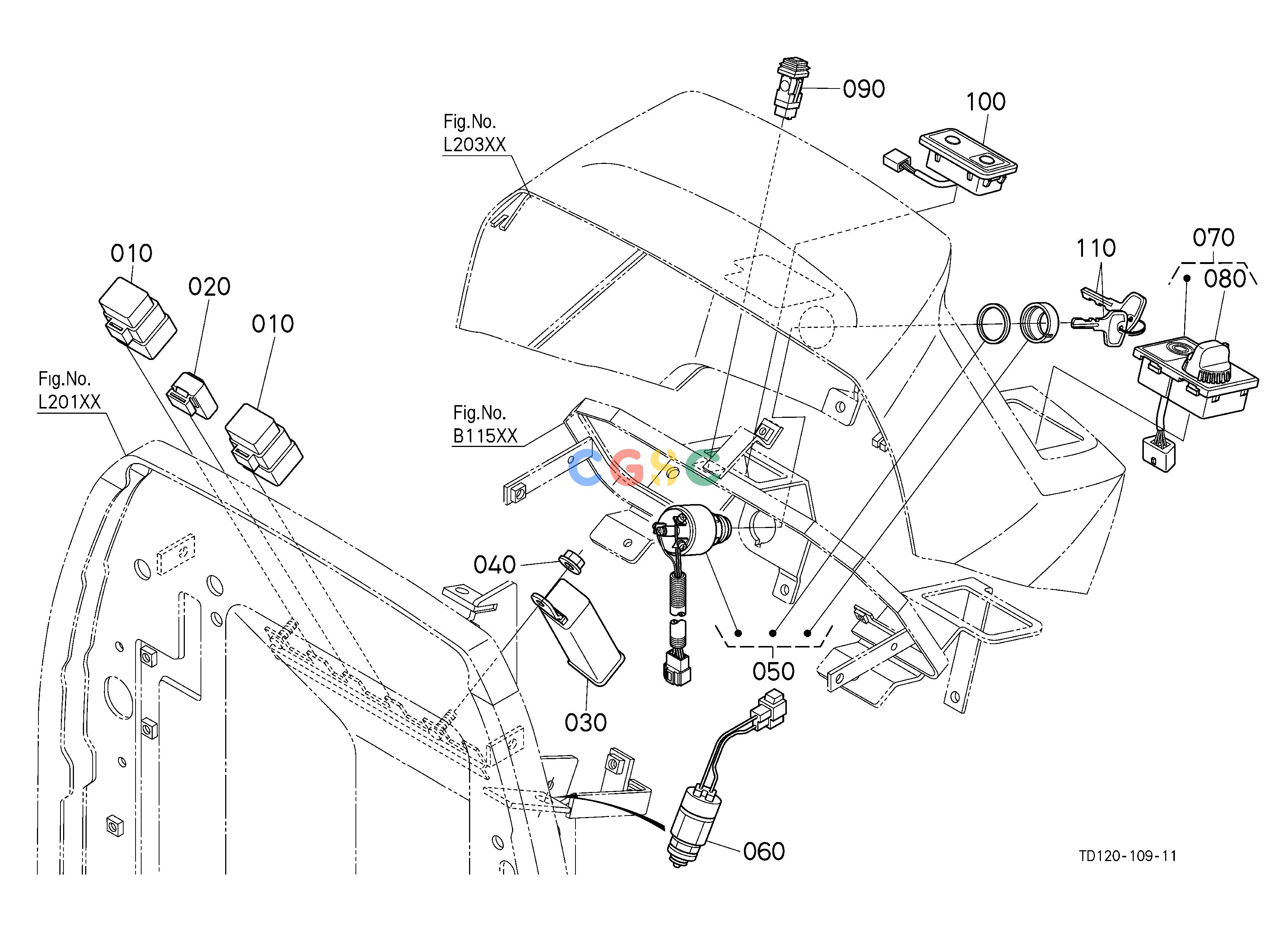

久保田零件查询B10202 SWITCH/RELAY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
T106033710
|
[2] |
RELAY,GLOW
|
0.1430(lbs); 0.065
|
| 020. |
T106033720
|
[1] |
RELAY,STARTER
|
0.0440(lbs); 0.020
|
| 030. |
3F24075430
|
[1] |
UNIT,FLASHER
|
0.1320(lbs); 0.060
|
| 040. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
3467031823
|
[1] |
SWITCH,MAIN
|
0.0572(lbs); 0.026
|
| 060. |
TD06057500
|
[1] |
SWITCH,SAFETY
|
0.3080(lbs); 0.140
|
| 070. |
TD17053500
|
[1] |
SWITCH,CHANGE
|
0.2750(lbs); 0.125
|
| 080. |
TD17055360
|
[1] |
KNOB
|
0.0220(lbs); 0.010
|
| 090. |
TA14030910
|
[1] |
SWITCH,HAZARD
|
0.0044(lbs); 0.002
|
| 100. |
TD06032320
|
[1] |
SWITCH,CHANGE
|
0.1100(lbs); 0.050
|
| 110. |
3526031852
|
[1] |
ASSY KEY,MAIN SWITC.
|
0.0440(lbs); 0.020
|
