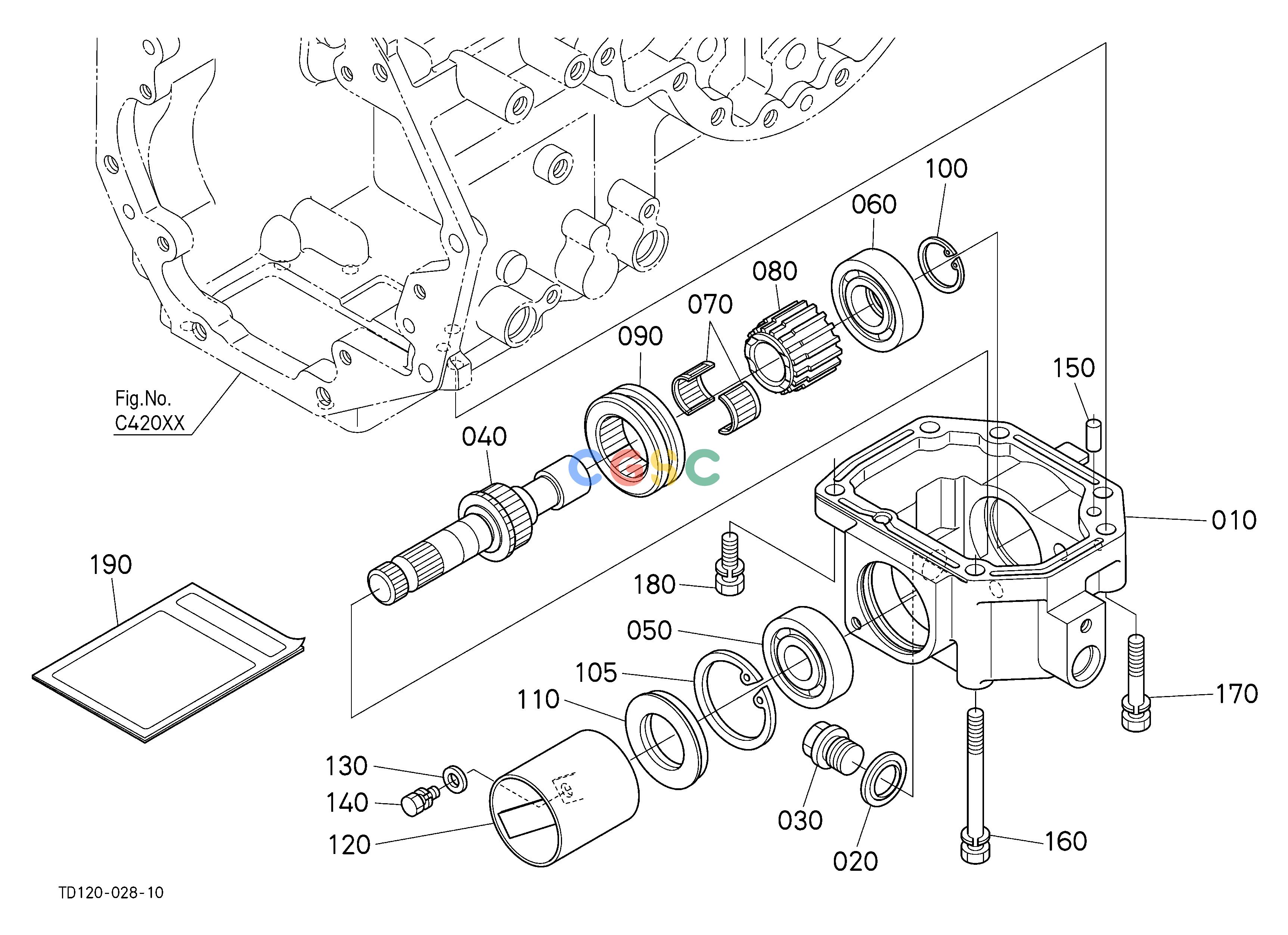

久保田零件查询T11701 MID PTO (CASE) (W/G No.8338) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
441 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17025262
|
[1] |
CASE
|
8.1400(lbs); 3.700
|
| 020. |
0471702150
|
[1] |
SPRING SEAT
|
0.0088(lbs); 0.004
|
| 030. |
1551296010
|
[1] |
PLUG
|
0.2222(lbs); 0.101
|
| 040. |
TD17025202
|
[1] |
SHAFT,M-PTO
|
1.7930(lbs); 0.815
|
| 050. |
0810106305
|
[1] |
BEARING,BALL
|
0.5060(lbs); 0.230
|
| 060. |
3407022260
|
[1] |
BEARING,BALL
|
0.5170(lbs); 0.235
|
| 070. |
TD03025220
|
[1] |
BEARING,NEEDLE
|
0.0330(lbs); 0.015
|
| 080. |
TD17025210
|
[1] |
GEAR,M-PTO
|
0.7040(lbs); 0.320
|
| 090. |
TD03025230
|
[1] |
SHIFTER
|
0.5280(lbs); 0.240
|
| 100. |
0461100250
|
[1] |
CIR-CLIP,INTERNAL
|
0.0022(lbs); 0.001
|
| 105. |
0461100620
|
[1] |
CIR-CLIP,INTERNAL
|
0.0242(lbs); 0.011
|
| 110. |
3750016470
|
[1] |
SEAL,OIL
|
0.1210(lbs); 0.055
|
| 120. |
TD03025270
|
[1] |
CAP
|
0.3960(lbs); 0.180
|
| 130. |
TD03025280
|
[1] |
WASHER,PLAIN
|
0.0044(lbs); 0.002
|
| 140. |
0112350814
|
[1] |
BOLT,SEMS
|
0.0220(lbs); 0.010
|
| 150. |
0501200818
|
[2] |
PIN,STRAIGHT
|
0.0286(lbs); 0.013
|
| 160. |
0113351000
|
[1] |
BOLT,SEMS
|
0.1320(lbs); 0.060
|
| 170. |
0113351055
|
[1] |
BOLT,SEMS
|
0.0858(lbs); 0.039
|
| 180. |
0113351030
|
[4] |
BOLT,SEMS
|
0.0550(lbs); 0.025
|
| 190. |
99999-99999
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
