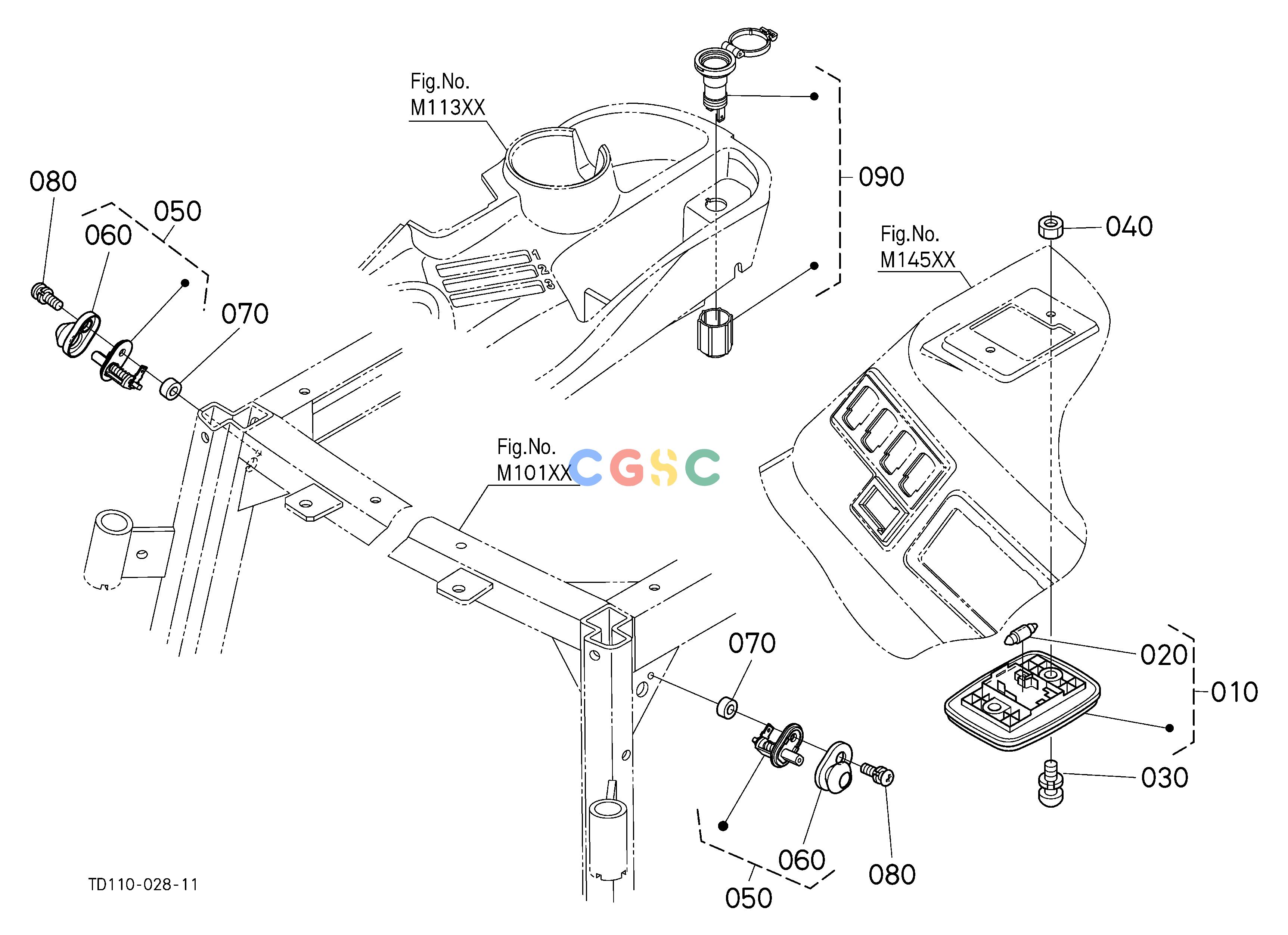

久保田零件查询B40100 ROOM LIGHT ## NOTE:ORDER BY REF.No.060 NEW PART. ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
569 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3F76054210
|
[1] |
ASSY LIGHT,ROOM
|
0.1430(lbs); 0.065
|
| 020. |
T018074220
|
[1] |
BULB,ROOM LIGHT
|
0.0110(lbs); 0.005
|
| 030. |
0302450516
|
[2] |
SCREW,WITH WASHER
|
0.0088(lbs); 0.004
|
| 040. |
0205450050
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 050. |
3F76075230
|
[2] |
SWITCH,DOOR
|
0.0242(lbs); 0.011
|
| 050. |
3F76075232
|
[2] |
SWITCH,DOOR
|
0.0242(lbs); 0.011
|
| 060. |
3F99901210
|
[2] |
COVER,DOOR SWITCH
|
0.0110(lbs); 0.005
|
| 060. |
3F99901212
|
[2] |
COVER,DOOR SWITCH
|
0.0110(lbs); 0.005
|
| 070. |
T027070870
|
[2] |
SPACER,DOOR SWITCH
|
0.0066(lbs); 0.003
|
| 080. |
3691956590
|
[2] |
SCREW
|
0.0066(lbs); 0.003
|
| 090. |
RC41853450
|
[1] |
ASSY SOCKET
|
0.0924(lbs); 0.042
|
