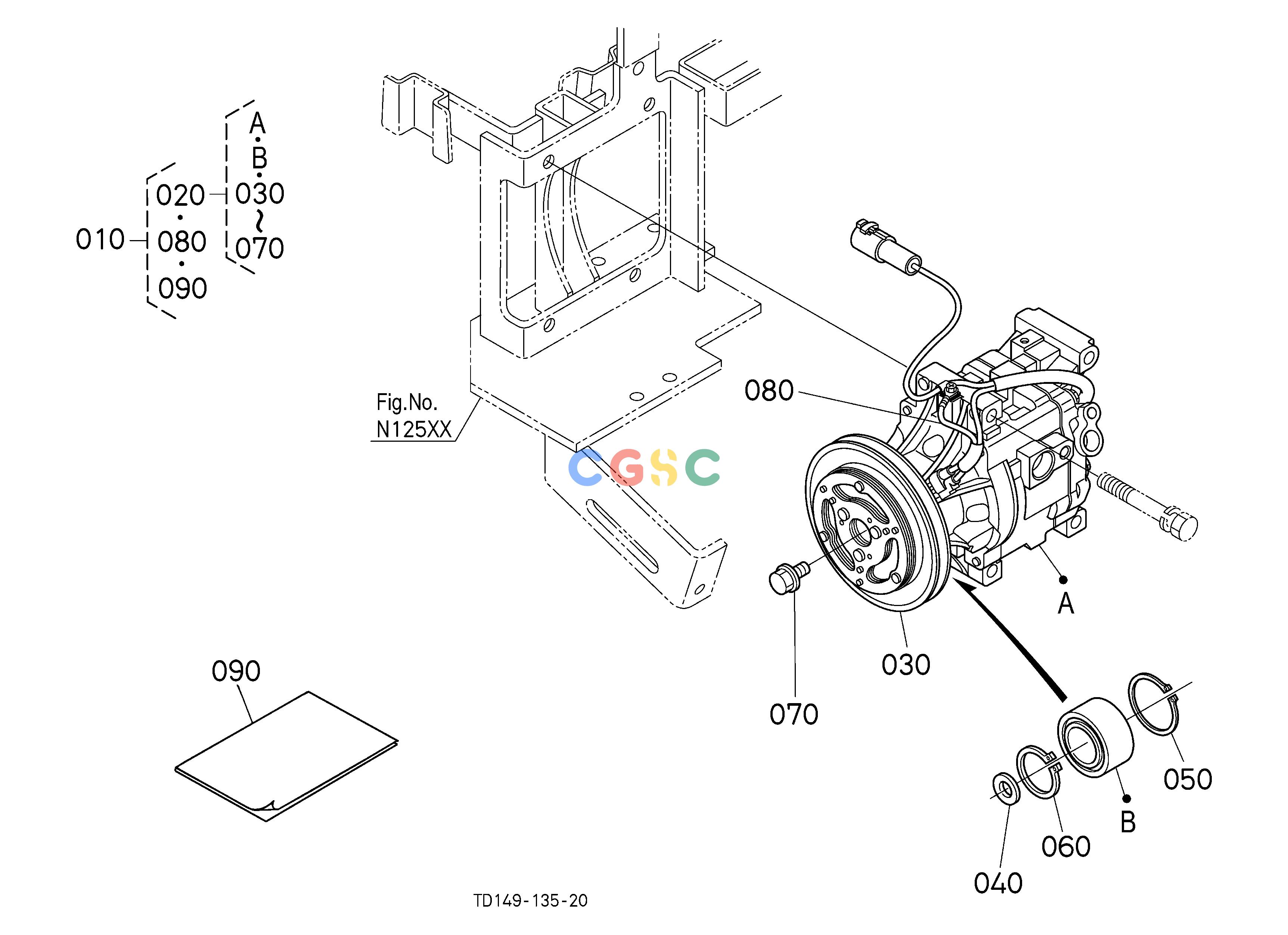

久保田零件查询T28000 COMPRESSOR KIT [OPTION] ## S.No.;<=60040 OPTIONEPC Kubota online
广数供应链运营团队, 18 02月, 2025，浏览：
547 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
TD17072210
|
[1] |
KIT,COMPRESSOR
|
11.0000(lbs); 5.000
|
| 020. |
K771198700
|
[1] |
ASSY COMPRESSOR
|
11.0000(lbs); 5.000
|
| 030. |
6A67197310
|
[1] |
ASSY CLUTH,MAGNETIC
|
3.2780(lbs); 1.490
|
| 040. |
T106587340
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 040. |
T106587350
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 040. |
T106587360
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 040. |
T106587370
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 040. |
T106587380
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 050. |
T106587440
|
[1] |
CIR CLIP,EXTERNAL
|
0.0110(lbs); 0.005
|
| 060. |
T106587450
|
[1] |
CIR CLIP,EXTERNAL
|
0.0066(lbs); 0.003
|
| 070. |
T106587460
|
[1] |
BOLT,CLUTCH
|
0.0154(lbs); 0.007
|
| 080. |
K771161280
|
[1] |
WIRE HARNESS
|
0.0220(lbs); 0.010
|
| 090. |
9999999999
|
[1] |
MANUAL ASSEMBLY
|
0.0000(lbs); 0.000
|
